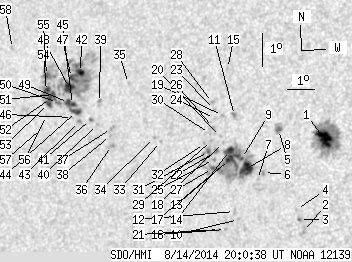

SDO HMI 2014-08-14 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.38 | 398.20 | 51.81 | 237.90 | 14.07 | 54.07 | -33.56 | 74.46 | 0.5572 | -140.3 | 25.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.31 | 75.60 | 9.17 | 42.48 | 13.97 | 59.92 | -27.72 | 72.68 | 0.4747 | -1275.2 | -535.1 | |
| 0.00 | 3.51 | 0.00 | 1.97 | 11.10 | 59.51 | -28.12 | 78.81 | 0.4734 | -909.0 | -741.5 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 11.46 | 59.33 | -28.30 | 78.11 | 0.4768 | -873.0 | -759.6 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 11.76 | 59.20 | -28.44 | 77.52 | 0.4795 | -676.0 | -583.2 | |
| 1.44 | 6.76 | 0.82 | 3.86 | 14.16 | 58.25 | -29.39 | 72.99 | 0.4995 | -1010.3 | -737.0 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 12.82 | 57.89 | -29.74 | 75.76 | 0.5011 | -810.0 | -766.0 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 12.59 | 57.71 | -29.93 | 76.26 | 0.5033 | -697.0 | -575.8 | |
| 12.79 | 87.13 | 7.36 | 50.39 | 12.91 | 57.27 | -30.37 | 75.77 | 0.5104 | -1104.3 | -463.0 | |
| 0.90 | -8.00 | 0.52 | -8.00 | 13.20 | 57.05 | -30.59 | 75.27 | 0.5143 | -978.0 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 11.34 | 57.18 | -30.46 | 78.86 | 0.5086 | -701.0 | -558.1 | |
| 0.00 | 2.70 | 0.00 | 1.57 | 14.50 | 56.60 | -31.03 | 72.95 | 0.5241 | -980.0 | -748.7 | |
| 0.00 | 1.71 | 0.00 | 0.99 | 11.57 | 57.00 | -30.63 | 78.43 | 0.5115 | -703.0 | -580.6 | |
| 4.69 | -8.00 | 2.71 | -8.00 | 13.15 | 56.62 | -31.02 | 75.51 | 0.5203 | -988.8 | 999999 | |
| 4.23 | -8.00 | 2.45 | -8.00 | 13.42 | 56.58 | -31.06 | 75.00 | 0.5215 | -817.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 15.92 | 56.11 | -31.52 | 70.51 | 0.5355 | -546.0 | -460.5 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 11.01 | 56.75 | -30.89 | 79.59 | 0.5144 | -730.0 | -575.1 | |
| 0.27 | -8.00 | 0.16 | -8.00 | 13.01 | 56.46 | -31.18 | 75.80 | 0.5224 | -758.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 13.65 | 56.33 | -31.31 | 74.64 | 0.5257 | -580.0 | -502.3 | |
| 0.00 | 1.44 | 0.00 | 0.84 | 14.47 | 56.17 | -31.47 | 73.16 | 0.5302 | -654.0 | -527.3 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 13.83 | 56.19 | -31.44 | 74.35 | 0.5281 | -667.0 | -549.1 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 11.00 | 56.53 | -31.11 | 79.65 | 0.5176 | -577.0 | -518.2 | |
| 0.63 | 2.43 | 0.37 | 1.42 | 13.36 | 56.11 | -31.52 | 75.25 | 0.5281 | -790.1 | -662.2 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 14.64 | 55.85 | -31.79 | 72.96 | 0.5352 | -654.0 | -483.9 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 14.36 | 55.89 | -31.75 | 73.45 | 0.5338 | -590.0 | -536.6 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 13.11 | 56.04 | -31.60 | 75.74 | 0.5286 | -760.0 | -635.9 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 14.09 | 55.90 | -31.74 | 73.96 | 0.5330 | -724.0 | -601.1 | |
| 0.90 | -8.00 | 0.52 | -8.00 | 12.84 | 56.04 | -31.59 | 76.25 | 0.5279 | -303.0 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.74 | 14.85 | 55.74 | -31.90 | 72.61 | 0.5373 | -758.0 | -560.7 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 13.69 | 55.88 | -31.75 | 74.71 | 0.5322 | -611.0 | -535.8 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 13.90 | 55.78 | -31.86 | 74.35 | 0.5342 | -713.0 | -548.5 | |
| 0.90 | 6.13 | 0.53 | 3.58 | 13.34 | 55.82 | -31.81 | 75.36 | 0.5322 | -690.0 | -465.6 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 13.58 | 55.64 | -32.00 | 74.98 | 0.5354 | -529.0 | -441.9 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 13.54 | 54.01 | -33.63 | 75.49 | 0.5583 | -580.0 | -488.7 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 13.65 | 53.77 | -33.87 | 75.36 | 0.5619 | -560.0 | -481.3 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 15.24 | 52.50 | -35.14 | 72.97 | 0.5830 | 666.0 | 612.9 | |
| 0.00 | 2.52 | 0.00 | 1.54 | 13.31 | 52.19 | -35.45 | 76.33 | 0.5830 | 718.0 | 619.0 | |
| 0.00 | 3.06 | 0.00 | 1.87 | 13.82 | 52.10 | -35.54 | 75.47 | 0.5852 | 865.0 | 721.9 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 13.61 | 52.10 | -35.54 | 75.84 | 0.5848 | 847.0 | 738.5 | |
| 0.00 | 2.88 | 0.00 | 1.77 | 14.58 | 51.50 | -36.14 | 74.34 | 0.5950 | 480.0 | 584.4 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 13.91 | 51.54 | -36.09 | 75.45 | 0.5930 | 740.0 | 577.2 | |
| 0.45 | 1.80 | 0.28 | 1.11 | 14.04 | 51.25 | -36.39 | 75.30 | 0.5973 | 872.2 | 734.3 | |
| 3.33 | 169.21 | 2.08 | 105.94 | 15.45 | 50.58 | -37.06 | 73.15 | 0.6091 | 1102.8 | 608.3 | |
| 0.00 | 1.71 | 0.00 | 1.06 | 13.95 | 50.83 | -36.80 | 75.53 | 0.6027 | 904.0 | 737.4 | |
| 4.60 | -42.00 | 2.86 | -42.00 | 14.25 | 50.66 | -36.98 | 75.08 | 0.6055 | 980.4 | 999999 | |
| 2.61 | -42.00 | 1.63 | -42.00 | 14.45 | 50.46 | -37.17 | 74.80 | 0.6086 | 1046.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 14.06 | 50.54 | -37.10 | 75.43 | 0.6068 | 287.0 | 261.5 | |
| 2.07 | -42.00 | 1.30 | -42.00 | 15.27 | 50.26 | -37.38 | 73.51 | 0.6130 | 1018.2 | 999999 | |
| 8.38 | -42.00 | 5.24 | -42.00 | 14.96 | 50.24 | -37.39 | 74.02 | 0.6125 | 1091.5 | 999999 | |
| 2.97 | -42.00 | 1.86 | -42.00 | 14.50 | 50.29 | -37.34 | 74.75 | 0.6109 | 1040.3 | 999999 | |
| 1.17 | -42.00 | 0.74 | -42.00 | 14.48 | 49.86 | -37.77 | 74.90 | 0.6165 | 817.3 | 999999 | |
| 2.25 | -42.00 | 1.42 | -42.00 | 14.71 | 49.66 | -37.98 | 74.57 | 0.6197 | 893.9 | 999999 | |
| 3.69 | -42.00 | 2.33 | -42.00 | 14.58 | 49.56 | -38.07 | 74.79 | 0.6207 | 759.2 | 999999 | |
| 2.97 | -42.00 | 1.87 | -42.00 | 14.42 | 49.52 | -38.12 | 75.06 | 0.6210 | 604.7 | 999999 | |
| 5.14 | -42.00 | 3.25 | -42.00 | 14.78 | 49.36 | -38.27 | 74.52 | 0.6237 | 644.8 | 999999 | |
| 3.69 | -42.00 | 2.34 | -42.00 | 15.27 | 49.26 | -38.38 | 73.76 | 0.6260 | 645.6 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 14.05 | 49.51 | -38.13 | 75.65 | 0.6205 | 545.0 | 502.1 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 13.64 | 49.39 | -38.25 | 76.33 | 0.6214 | 485.0 | 441.1 | |
| 0.00 | 1.71 | 0.00 | 1.11 | 16.00 | 47.71 | -39.93 | 72.99 | 0.6475 | 493.0 | 368.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
