SDO HMI 2014-08-14 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.60 | 43.24 | 7.68 | 24.56 | -17.42 | 104.48 | 16.85 | 214.47 | 0.4904 | 276.5 | 451.3 | |
|
previous
or next observation for the same group /

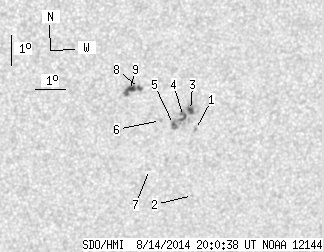

back to the solar disc SDO HMI 2014-08-14 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.03 | -17.99 | 105.38 | 17.74 | 215.17 | 0.5051 | 785.0 | 646.8 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -20.22 | 105.52 | 17.89 | 212.85 | 0.5333 | 605.0 | 458.3 | |
| 2.97 | 26.49 | 1.69 | 15.09 | -17.35 | 105.15 | 17.51 | 215.60 | 0.4953 | 1105.4 | 684.4 | |
| 2.97 | -3.00 | 1.69 | -3.00 | -17.54 | 104.93 | 17.29 | 215.03 | 0.4958 | 1068.6 | 999999 | |
| 0.90 | -3.00 | 0.51 | -3.00 | -17.80 | 104.62 | 16.99 | 214.25 | 0.4963 | 881.1 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -17.65 | 104.18 | 16.54 | 213.72 | 0.4906 | 787.0 | 559.7 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -19.28 | 103.97 | 16.33 | 211.54 | 0.5094 | 606.0 | 410.0 | |
| 1.44 | 11.08 | 0.81 | 6.21 | -16.56 | 103.38 | 15.75 | 213.74 | 0.4703 | -791.6 | -735.8 | |
| 5.32 | -8.00 | 2.98 | -8.00 | -16.62 | 103.06 | 15.42 | 213.13 | 0.4682 | -1018.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
