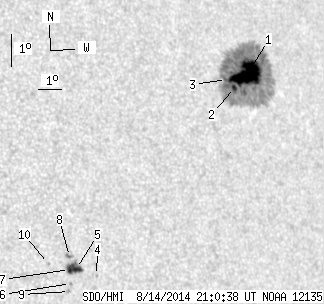

SDO HMI 2014-08-14 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.20 | 298.42 | 41.19 | 214.29 | 15.00 | 133.57 | 46.49 | 284.38 | 0.7252 | -604.3 | -264.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.78 | 275.27 | 32.51 | 199.68 | 15.38 | 134.21 | 47.13 | 284.88 | 0.7335 | -1078.9 | -305.1 | |
| 2.07 | -1.00 | 1.49 | -1.00 | 15.00 | 133.50 | 46.42 | 284.45 | 0.7249 | -1048.3 | 999999 | |
| 0.27 | -1.00 | 0.19 | -1.00 | 15.27 | 133.22 | 46.13 | 284.86 | 0.7219 | -1082.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 9.76 | 126.53 | 39.45 | 277.34 | 0.6336 | 541.0 | 515.9 | |
| 6.67 | 15.05 | 4.22 | 9.50 | 10.03 | 125.77 | 38.69 | 277.81 | 0.6236 | 758.1 | 567.6 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 9.60 | 125.48 | 38.39 | 277.12 | 0.6193 | 738.0 | 663.6 | |
| 3.96 | -5.00 | 2.50 | -5.00 | 10.02 | 125.50 | 38.41 | 277.81 | 0.6198 | 920.8 | 999999 | |
| 0.45 | 3.33 | 0.28 | 2.10 | 10.42 | 125.55 | 38.47 | 278.44 | 0.6208 | 888.8 | 690.6 | |
| 0.00 | 1.44 | 0.00 | 0.91 | 9.36 | 125.40 | 38.32 | 276.73 | 0.6183 | 786.0 | 676.9 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 10.26 | 124.71 | 37.62 | 278.25 | 0.6092 | 705.0 | 626.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
