SDO HMI 2014-08-14 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.38 | 389.37 | 52.35 | 231.49 | 14.03 | 54.00 | -33.09 | 74.40 | 0.5505 | -118.2 | 39.6 | |
|
previous
or next observation for the same group /

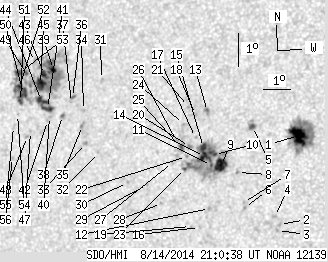

back to the solar disc SDO HMI 2014-08-14 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.18 | 62.35 | 11.29 | 34.86 | 13.97 | 59.93 | -27.15 | 72.43 | 0.4664 | -1265.6 | -570.4 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 11.23 | 59.58 | -27.50 | 78.39 | 0.4643 | -891.0 | -784.4 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 11.04 | 59.53 | -27.55 | 78.80 | 0.4647 | -856.0 | -718.6 | |
| 0.00 | 1.80 | 0.00 | 1.01 | 11.46 | 59.38 | -27.70 | 77.94 | 0.4678 | -937.0 | -664.2 | |
| 1.80 | 6.31 | 1.02 | 3.58 | 14.16 | 58.27 | -28.81 | 72.76 | 0.4912 | -1036.9 | -730.2 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 11.68 | 58.30 | -28.78 | 77.78 | 0.4844 | -867.0 | -659.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 11.83 | 58.25 | -28.84 | 77.49 | 0.4855 | -839.0 | -621.6 | |
| 0.00 | 1.71 | 0.00 | 0.97 | 12.73 | 57.93 | -29.16 | 75.75 | 0.4923 | -948.0 | -764.2 | |
| 11.35 | 100.02 | 6.49 | 57.49 | 12.91 | 57.29 | -29.79 | 75.59 | 0.5020 | -1133.7 | -471.6 | |
| 1.08 | -9.00 | 0.62 | -9.00 | 13.24 | 57.04 | -30.05 | 75.04 | 0.5065 | -1044.5 | 999999 | |
| 0.81 | -9.00 | 0.47 | -9.00 | 12.89 | 56.97 | -30.11 | 75.73 | 0.5066 | -880.3 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 11.58 | 57.06 | -30.02 | 78.29 | 0.5025 | -701.0 | -562.8 | |
| 0.00 | 3.69 | 0.00 | 2.13 | 14.53 | 56.60 | -30.49 | 72.69 | 0.5164 | -925.0 | -689.1 | |
| 7.03 | -9.00 | 4.04 | -9.00 | 13.15 | 56.69 | -30.40 | 75.31 | 0.5114 | -999.3 | 999999 | |
| 4.42 | -9.00 | 2.54 | -9.00 | 13.43 | 56.61 | -30.47 | 74.81 | 0.5131 | -807.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 10.99 | 56.77 | -30.31 | 79.53 | 0.5058 | -647.0 | -488.8 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 13.71 | 56.28 | -30.80 | 74.36 | 0.5187 | -734.0 | -608.3 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 14.42 | 56.18 | -30.91 | 73.07 | 0.5221 | -664.0 | -596.1 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 11.00 | 56.45 | -30.63 | 79.57 | 0.5106 | -553.0 | -541.2 | |
| 0.00 | 2.43 | 0.00 | 1.41 | 13.43 | 56.10 | -30.98 | 74.96 | 0.5205 | -870.0 | -751.3 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 14.65 | 55.88 | -31.20 | 72.74 | 0.5269 | -617.0 | -527.3 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 13.12 | 56.04 | -31.05 | 75.58 | 0.5207 | -757.0 | -632.8 | |
| 0.54 | -9.00 | 0.31 | -9.00 | 12.75 | 56.01 | -31.07 | 76.29 | 0.5202 | -667.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 14.09 | 55.79 | -31.30 | 73.82 | 0.5267 | -591.0 | -506.2 | |
| 0.99 | 3.69 | 0.58 | 2.15 | 13.38 | 55.82 | -31.27 | 75.14 | 0.5244 | -690.5 | -549.7 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 13.58 | 55.60 | -31.48 | 74.82 | 0.5280 | -544.0 | -430.2 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 12.91 | 55.56 | -31.53 | 76.11 | 0.5271 | -239.0 | -125.7 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 11.64 | 55.32 | -31.76 | 78.56 | 0.5281 | -494.0 | -330.2 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 12.18 | 54.74 | -32.35 | 77.66 | 0.5374 | 790.0 | 603.1 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 12.20 | 53.99 | -33.09 | 77.79 | 0.5481 | 730.0 | 537.8 | |
| 0.00 | 1.62 | 0.00 | 0.98 | 15.28 | 52.51 | -34.57 | 72.74 | 0.5753 | 713.0 | 572.3 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 13.05 | 52.78 | -34.30 | 76.54 | 0.5666 | 438.0 | 398.2 | |
| 0.00 | 2.25 | 0.00 | 1.36 | 13.29 | 52.25 | -34.83 | 76.24 | 0.5745 | 767.0 | 642.4 | |
| 0.00 | 0.90 | 0.00 | 0.55 | 14.29 | 52.00 | -35.08 | 74.58 | 0.5799 | 655.0 | 493.1 | |
| 0.00 | 3.15 | 0.00 | 1.91 | 13.83 | 52.05 | -35.04 | 75.35 | 0.5784 | 794.0 | 714.1 | |
| 0.00 | 1.98 | 0.00 | 1.21 | 14.66 | 51.51 | -35.57 | 74.08 | 0.5874 | 710.0 | 561.5 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 14.50 | 51.50 | -35.58 | 74.34 | 0.5872 | 659.0 | 513.5 | |
| 0.54 | 1.71 | 0.33 | 1.05 | 14.08 | 51.23 | -35.85 | 75.11 | 0.5900 | 917.5 | 745.3 | |
| 2.70 | 163.36 | 1.67 | 101.62 | 15.46 | 50.62 | -36.47 | 72.97 | 0.6013 | 1174.2 | 590.9 | |
| 0.00 | 0.63 | 0.00 | 0.39 | 14.02 | 50.74 | -36.35 | 75.33 | 0.5966 | 788.0 | 671.7 | |
| 4.69 | -39.00 | 2.89 | -39.00 | 14.26 | 50.62 | -36.47 | 74.96 | 0.5987 | 944.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 13.89 | 50.68 | -36.40 | 75.55 | 0.5971 | 731.0 | 605.3 | |
| 4.23 | -39.00 | 2.63 | -39.00 | 15.29 | 50.30 | -36.79 | 73.35 | 0.6051 | 1051.3 | 999999 | |
| 5.59 | -39.00 | 3.46 | -39.00 | 14.49 | 50.34 | -36.75 | 74.65 | 0.6029 | 1034.5 | 999999 | |
| 8.74 | -39.00 | 5.43 | -39.00 | 14.97 | 50.20 | -36.88 | 73.89 | 0.6057 | 1100.5 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.35 | 15.66 | 49.83 | -37.26 | 72.87 | 0.6122 | 18.0 | 85.8 | |
| 0.00 | 1.08 | 0.00 | 0.67 | 13.52 | 50.09 | -37.00 | 76.30 | 0.6044 | 645.0 | 532.8 | |
| 0.00 | 1.53 | 0.00 | 0.95 | 13.36 | 50.00 | -37.08 | 76.58 | 0.6054 | 642.0 | 510.4 | |
| 0.90 | -39.00 | 0.56 | -39.00 | 15.27 | 49.59 | -37.49 | 73.55 | 0.6145 | 701.6 | 999999 | |
| 5.59 | -39.00 | 3.50 | -39.00 | 14.65 | 49.60 | -37.49 | 74.55 | 0.6131 | 830.9 | 999999 | |
| 1.98 | -39.00 | 1.24 | -39.00 | 14.40 | 49.53 | -37.56 | 74.97 | 0.6135 | 639.0 | 999999 | |
| 1.98 | -39.00 | 1.24 | -39.00 | 14.86 | 49.40 | -37.69 | 74.27 | 0.6161 | 760.4 | 999999 | |
| 3.24 | -39.00 | 2.04 | -39.00 | 15.25 | 49.27 | -37.81 | 73.66 | 0.6186 | 664.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 14.00 | 49.49 | -37.60 | 75.64 | 0.6133 | 493.0 | 440.0 | |
| 0.00 | 2.25 | 0.00 | 1.41 | 13.62 | 49.40 | -37.68 | 76.26 | 0.6138 | 455.0 | 405.6 | |
| 0.00 | 0.81 | 0.00 | 0.51 | 12.68 | 49.53 | -37.56 | 77.78 | 0.6107 | 233.0 | 199.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
