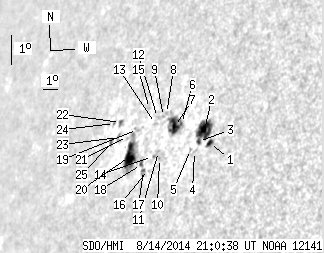

SDO HMI 2014-08-14 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.43 | 112.60 | 56.87 | 124.56 | 16.16 | 22.95 | -64.14 | 75.19 | 0.8952 | 0.7 | 166.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.34 | 4.05 | 2.32 | 4.02 | 16.41 | 26.41 | -60.68 | 74.85 | 0.8684 | -709.5 | -566.7 | |
| 17.75 | 25.23 | 17.90 | 25.45 | 16.80 | 25.87 | -61.21 | 74.42 | 0.8730 | -586.8 | -298.0 | |
| 1.35 | -2.00 | 1.37 | -2.00 | 16.40 | 25.69 | -61.40 | 74.88 | 0.8744 | -462.1 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.56 | 16.08 | 25.59 | -61.49 | 75.26 | 0.8751 | -404.0 | -357.0 | |
| 0.00 | 1.26 | 0.00 | 1.29 | 16.11 | 25.31 | -61.78 | 75.22 | 0.8774 | -275.0 | -170.7 | |
| 0.63 | 19.91 | 0.67 | 21.38 | 16.83 | 24.28 | -62.80 | 74.44 | 0.8856 | -615.7 | -168.3 | |
| 9.55 | -6.00 | 10.25 | -6.00 | 16.69 | 23.87 | -63.21 | 74.60 | 0.8888 | -460.9 | 999999 | |
| 0.00 | 1.35 | 0.00 | 1.49 | 17.02 | 23.09 | -63.99 | 74.25 | 0.8947 | 389.0 | 331.2 | |
| 0.00 | 0.99 | 0.00 | 1.10 | 16.91 | 22.94 | -64.14 | 74.37 | 0.8958 | 404.0 | 375.5 | |
| 0.00 | 0.54 | 0.00 | 0.59 | 15.64 | 23.41 | -63.67 | 75.79 | 0.8922 | 560.0 | 532.8 | |
| 0.00 | 0.90 | 0.00 | 0.99 | 15.84 | 23.23 | -63.86 | 75.57 | 0.8936 | 424.0 | 402.3 | |
| 0.00 | 2.25 | 0.00 | 2.52 | 16.84 | 22.54 | -64.54 | 74.46 | 0.8988 | 236.0 | 271.9 | |
| 0.00 | 1.53 | 0.00 | 1.72 | 16.65 | 22.52 | -64.57 | 74.67 | 0.8990 | 315.0 | 240.4 | |
| 0.00 | 0.36 | 0.00 | 0.40 | 15.65 | 22.90 | -64.18 | 75.78 | 0.8960 | 429.0 | 460.5 | |
| 0.00 | 0.90 | 0.00 | 1.04 | 17.05 | 21.80 | -65.28 | 74.24 | 0.9042 | 262.0 | 202.1 | |
| 0.00 | 0.36 | 0.00 | 0.40 | 15.24 | 22.84 | -64.24 | 76.24 | 0.8964 | 592.0 | 553.0 | |
| 0.90 | 5.50 | 1.01 | 6.19 | 15.17 | 22.51 | -64.57 | 76.32 | 0.8989 | 601.2 | 496.0 | |
| 0.72 | -17.00 | 0.82 | -17.00 | 15.34 | 22.27 | -64.81 | 76.14 | 0.9007 | 551.1 | 999999 | |
| 0.00 | 2.52 | 0.00 | 2.95 | 16.34 | 21.34 | -65.74 | 75.03 | 0.9074 | 470.0 | 347.4 | |
| 18.11 | 32.53 | 21.20 | 38.02 | 15.48 | 21.27 | -65.82 | 75.97 | 0.9079 | 557.3 | 386.3 | |
| 0.00 | 0.36 | 0.00 | 0.43 | 16.06 | 20.74 | -66.34 | 75.34 | 0.9116 | 341.0 | 317.0 | |
| 1.08 | 2.88 | 1.33 | 3.54 | 16.41 | 19.93 | -67.15 | 74.95 | 0.9171 | 477.8 | 430.4 | |
| 0.00 | 3.42 | 0.00 | 4.19 | 15.96 | 20.08 | -67.00 | 75.45 | 0.9161 | 413.0 | 469.5 | |
| 0.00 | 1.17 | 0.00 | 1.47 | 16.34 | 19.49 | -67.60 | 75.03 | 0.9200 | 60.0 | 56.2 | |
| 0.00 | 3.06 | 0.00 | 3.82 | 15.76 | 19.64 | -67.44 | 75.66 | 0.9190 | 242.0 | 112.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
