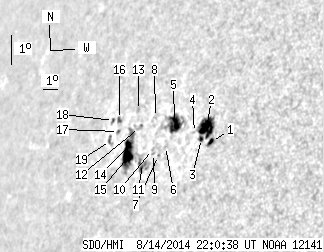

SDO HMI 2014-08-14 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.93 | 130.82 | 62.98 | 142.04 | 16.14 | 22.97 | -63.56 | 75.22 | 0.8908 | 2.4 | 205.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-14 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.43 | 4.24 | 2.37 | 4.13 | 16.41 | 26.49 | -60.04 | 74.83 | 0.8631 | -721.0 | -588.5 | |
| 18.74 | 29.38 | 18.54 | 29.08 | 16.80 | 25.97 | -60.57 | 74.40 | 0.8676 | -578.3 | -280.9 | |
| 1.35 | -2.00 | 1.34 | -2.00 | 16.44 | 25.83 | -60.70 | 74.82 | 0.8686 | -452.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 1.09 | 16.58 | 25.30 | -61.23 | 74.68 | 0.8731 | 316.0 | 242.2 | |
| 13.52 | 26.22 | 14.24 | 27.68 | 16.72 | 23.86 | -62.67 | 74.56 | 0.8846 | -411.3 | -31.3 | |
| 0.00 | 1.08 | 0.00 | 1.15 | 15.97 | 23.65 | -62.88 | 75.41 | 0.8861 | 484.0 | 455.3 | |
| 0.00 | 0.90 | 0.00 | 0.96 | 15.66 | 23.34 | -63.19 | 75.77 | 0.8885 | 638.0 | 570.5 | |
| 0.00 | 1.17 | 0.00 | 1.29 | 16.77 | 22.47 | -64.06 | 74.54 | 0.8952 | 214.0 | 254.5 | |
| 0.00 | 1.17 | 0.00 | 1.27 | 15.69 | 22.97 | -63.56 | 75.74 | 0.8913 | 578.0 | 505.2 | |
| 0.00 | 1.71 | 0.00 | 1.86 | 15.80 | 22.83 | -63.70 | 75.62 | 0.8924 | 533.0 | 456.4 | |
| 0.00 | 13.97 | 0.00 | 15.44 | 15.31 | 22.39 | -64.15 | 76.16 | 0.8957 | 381.0 | 465.1 | |
| 0.00 | 3.78 | 0.00 | 4.31 | 16.36 | 21.54 | -64.99 | 75.01 | 0.9020 | 483.0 | 324.2 | |
| 0.00 | 1.98 | 0.00 | 2.29 | 16.85 | 21.14 | -65.39 | 74.46 | 0.9049 | 206.0 | 185.8 | |
| 5.77 | 33.79 | 6.66 | 38.92 | 15.78 | 21.14 | -65.39 | 75.65 | 0.9049 | 650.0 | 371.1 | |
| 14.78 | -14.00 | 17.00 | -14.00 | 15.38 | 21.23 | -65.30 | 76.09 | 0.9042 | 565.0 | 999999 | |
| 1.08 | 2.79 | 1.30 | 3.37 | 16.44 | 19.92 | -66.61 | 74.92 | 0.9134 | 438.3 | 372.4 | |
| 0.54 | 1.80 | 0.65 | 2.16 | 16.08 | 20.08 | -66.45 | 75.32 | 0.9123 | 588.2 | 501.0 | |
| 0.72 | 1.98 | 0.88 | 2.43 | 16.37 | 19.49 | -67.04 | 75.00 | 0.9163 | 33.5 | 29.3 | |
| 0.00 | 3.78 | 0.00 | 4.61 | 15.75 | 19.66 | -66.87 | 75.67 | 0.9152 | 322.0 | 198.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
