SDO HMI 2014-08-15 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 85.72 | 378.27 | 49.57 | 220.26 | 14.03 | 54.29 | -31.14 | 73.82 | 0.5230 | -224.3 | 51.6 | |
|
previous
or next observation for the same group /

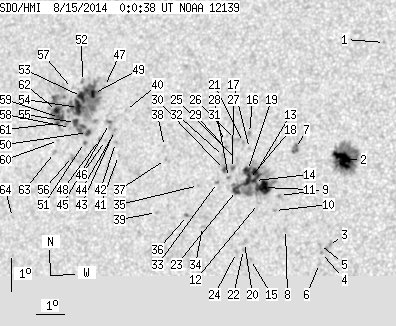

back to the solar disc SDO HMI 2014-08-15 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.55 | 17.63 | 60.93 | -24.50 | 63.09 | 0.4450 | -659.0 | -508.5 | |
| 18.48 | 66.33 | 10.19 | 36.56 | 13.98 | 59.98 | -25.45 | 71.61 | 0.4412 | -1247.0 | -569.2 | |
| 0.00 | 4.87 | 0.00 | 2.68 | 11.33 | 59.74 | -25.69 | 77.65 | 0.4369 | -729.0 | -729.3 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 11.11 | 59.52 | -25.91 | 78.23 | 0.4397 | -935.0 | -774.6 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 11.35 | 59.43 | -26.00 | 77.72 | 0.4417 | -865.0 | -614.3 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 10.77 | 59.48 | -25.94 | 79.01 | 0.4396 | -407.0 | -275.8 | |
| 0.00 | 5.68 | 0.00 | 3.18 | 14.23 | 58.27 | -27.16 | 71.92 | 0.4673 | -1070.0 | -853.6 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 11.74 | 58.21 | -27.22 | 77.22 | 0.4611 | -864.0 | -721.8 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 12.77 | 57.88 | -27.54 | 75.15 | 0.4685 | -781.0 | -729.6 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 12.30 | 57.76 | -27.66 | 76.18 | 0.4691 | -889.0 | -716.5 | |
| 12.62 | 87.60 | 7.11 | 49.51 | 12.98 | 57.30 | -28.13 | 74.92 | 0.4778 | -1111.6 | -490.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 12.49 | 57.18 | -28.25 | 75.98 | 0.4782 | -706.0 | -590.4 | |
| 5.50 | -11.00 | 3.11 | -11.00 | 13.43 | 56.96 | -28.47 | 74.13 | 0.4840 | -1032.0 | 999999 | |
| 2.79 | -11.00 | 1.58 | -11.00 | 13.18 | 56.95 | -28.48 | 74.64 | 0.4834 | -1076.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 10.77 | 57.08 | -28.34 | 79.59 | 0.4761 | -760.0 | -616.9 | |
| 0.00 | 1.71 | 0.00 | 0.97 | 14.60 | 56.58 | -28.84 | 71.92 | 0.4931 | -814.0 | -700.4 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 14.15 | 56.65 | -28.78 | 72.80 | 0.4907 | -775.0 | -573.2 | |
| 6.04 | -11.00 | 3.42 | -11.00 | 13.20 | 56.74 | -28.69 | 74.68 | 0.4866 | -957.7 | 999999 | |
| 3.61 | -11.00 | 2.04 | -11.00 | 13.47 | 56.67 | -28.76 | 74.15 | 0.4884 | -801.0 | 999999 | |
| 0.00 | 2.88 | 0.00 | 1.63 | 11.28 | 56.82 | -28.61 | 78.60 | 0.4810 | -374.0 | -370.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 14.32 | 56.41 | -29.02 | 72.56 | 0.4947 | -836.0 | -688.6 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 11.06 | 56.81 | -28.62 | 79.05 | 0.4808 | -592.0 | -478.3 | |
| 4.69 | -11.00 | 2.66 | -11.00 | 12.84 | 56.35 | -29.07 | 75.53 | 0.4913 | -711.7 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.12 | 10.96 | 56.57 | -28.86 | 79.32 | 0.4841 | -688.0 | -463.7 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 13.79 | 56.23 | -29.20 | 73.68 | 0.4956 | -727.0 | -583.7 | |
| 0.00 | 3.51 | 0.00 | 2.01 | 14.39 | 56.11 | -29.32 | 72.53 | 0.4992 | -610.0 | -615.7 | |
| 0.45 | 2.43 | 0.26 | 1.39 | 13.50 | 56.12 | -29.30 | 74.28 | 0.4964 | -855.0 | -703.8 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 13.22 | 56.02 | -29.41 | 74.88 | 0.4971 | -700.0 | -574.1 | |
| 0.00 | 1.62 | 0.00 | 0.93 | 14.13 | 55.79 | -29.64 | 73.17 | 0.5031 | -597.0 | -482.8 | |
| 1.17 | 4.42 | 0.67 | 2.52 | 13.46 | 55.84 | -29.58 | 74.47 | 0.5003 | -746.0 | -586.0 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 14.31 | 55.72 | -29.70 | 72.84 | 0.5045 | -491.0 | -343.2 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 13.85 | 55.75 | -29.67 | 73.73 | 0.5027 | -552.0 | -505.7 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 13.05 | 55.65 | -29.78 | 75.35 | 0.5021 | -466.0 | -310.8 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 11.68 | 55.28 | -30.15 | 78.15 | 0.5046 | -415.0 | -273.5 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 12.92 | 54.98 | -30.45 | 75.81 | 0.5115 | 645.0 | 476.1 | |
| 0.00 | 2.43 | 0.00 | 1.40 | 11.98 | 54.70 | -30.73 | 77.69 | 0.5136 | 878.0 | 700.4 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 13.64 | 53.67 | -31.76 | 74.82 | 0.5320 | -636.0 | -516.1 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 14.04 | 53.58 | -31.85 | 74.12 | 0.5344 | -562.0 | -423.6 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 12.01 | 53.57 | -31.86 | 77.90 | 0.5300 | 799.0 | 673.4 | |
| 0.00 | 0.63 | 0.00 | 0.38 | 15.05 | 51.95 | -33.47 | 72.81 | 0.5597 | -275.0 | -278.3 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 13.66 | 51.92 | -33.50 | 75.28 | 0.5567 | 710.0 | 637.9 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 14.05 | 51.75 | -33.68 | 74.64 | 0.5600 | 874.0 | 678.5 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 14.41 | 51.65 | -33.78 | 74.02 | 0.5623 | 812.0 | 692.7 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 14.25 | 51.60 | -33.83 | 74.31 | 0.5626 | 770.0 | 685.3 | |
| 0.00 | 4.06 | 0.00 | 2.43 | 14.61 | 51.42 | -34.00 | 73.74 | 0.5659 | 665.0 | 716.8 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 14.09 | 51.36 | -34.06 | 74.68 | 0.5655 | 638.0 | 506.4 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 15.73 | 51.03 | -34.40 | 71.92 | 0.5742 | 586.0 | 569.4 | |
| 0.00 | 1.44 | 0.00 | 0.87 | 14.10 | 51.13 | -34.30 | 74.71 | 0.5687 | 836.0 | 744.6 | |
| 2.79 | 141.68 | 1.69 | 86.39 | 15.49 | 50.65 | -34.78 | 72.45 | 0.5786 | 1255.0 | 667.0 | |
| 2.07 | -49.00 | 1.25 | -49.00 | 14.29 | 50.64 | -34.78 | 74.52 | 0.5758 | 917.2 | 999999 | |
| 0.36 | 1.44 | 0.22 | 0.87 | 13.98 | 50.58 | -34.84 | 75.07 | 0.5760 | 837.5 | 733.8 | |
| 0.00 | 1.89 | 0.00 | 1.16 | 15.83 | 50.16 | -35.27 | 72.03 | 0.5862 | 597.0 | 480.5 | |
| 5.14 | -49.00 | 3.13 | -49.00 | 15.37 | 50.21 | -35.21 | 72.79 | 0.5843 | 992.8 | 999999 | |
| 7.84 | -49.00 | 4.78 | -49.00 | 15.03 | 50.16 | -35.26 | 73.39 | 0.5841 | 1104.5 | 999999 | |
| 2.70 | -49.00 | 1.65 | -49.00 | 14.56 | 50.13 | -35.29 | 74.18 | 0.5834 | 1001.0 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.59 | 13.52 | 50.20 | -35.23 | 75.94 | 0.5803 | 706.0 | 602.5 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 15.59 | 49.82 | -35.61 | 72.53 | 0.5901 | 158.0 | 216.5 | |
| 0.00 | 1.26 | 0.00 | 0.77 | 14.40 | 49.97 | -35.46 | 74.50 | 0.5853 | 420.0 | 497.0 | |
| 4.24 | -49.00 | 2.60 | -49.00 | 14.68 | 49.49 | -35.93 | 74.16 | 0.5923 | 806.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 13.97 | 49.58 | -35.84 | 75.32 | 0.5896 | 618.0 | 506.5 | |
| 1.35 | -49.00 | 0.83 | -49.00 | 14.49 | 49.45 | -35.98 | 74.48 | 0.5925 | 601.3 | 999999 | |
| 3.88 | -49.00 | 2.38 | -49.00 | 14.88 | 49.34 | -36.09 | 73.85 | 0.5949 | 777.0 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.32 | 13.60 | 49.49 | -35.93 | 75.97 | 0.5901 | 593.0 | 483.8 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 11.52 | 48.21 | -37.22 | 79.66 | 0.6047 | 712.0 | 567.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
