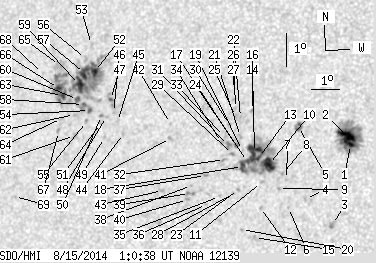

SDO HMI 2014-08-15 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.46 | 413.45 | 47.52 | 239.85 | 14.11 | 54.14 | -30.74 | 73.54 | 0.5175 | -181.9 | 55.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.06 | 70.94 | 1.68 | 38.94 | 13.77 | 60.10 | -24.77 | 71.72 | 0.4304 | -1274.6 | -558.6 | |
| 13.97 | -1.00 | 7.67 | -1.00 | 14.01 | 59.97 | -24.90 | 71.25 | 0.4332 | -1279.0 | 999999 | |
| 0.00 | 3.97 | 0.00 | 2.17 | 11.30 | 59.74 | -25.14 | 77.54 | 0.4284 | -870.0 | -825.6 | |
| 0.00 | 2.07 | 0.00 | 1.15 | 12.05 | 58.74 | -26.14 | 76.20 | 0.4455 | -662.0 | -534.3 | |
| 0.00 | 6.13 | 0.00 | 3.42 | 14.23 | 58.24 | -26.63 | 71.67 | 0.4597 | -1005.0 | -855.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 11.75 | 58.18 | -26.70 | 77.06 | 0.4532 | -812.0 | -723.2 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 12.60 | 58.02 | -26.86 | 75.27 | 0.4578 | -703.0 | -619.2 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 12.77 | 57.86 | -27.02 | 74.95 | 0.4607 | -815.0 | -726.5 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 12.31 | 57.77 | -27.11 | 75.98 | 0.4607 | -886.0 | -724.8 | |
| 11.18 | 93.47 | 6.26 | 52.57 | 13.02 | 57.34 | -27.54 | 74.62 | 0.4691 | -1168.8 | -492.1 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 12.46 | 57.16 | -27.72 | 75.87 | 0.4703 | -561.0 | -478.5 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 11.70 | 57.21 | -27.67 | 77.47 | 0.4677 | -792.0 | -649.1 | |
| 2.07 | -10.00 | 1.17 | -10.00 | 13.22 | 56.96 | -27.92 | 74.36 | 0.4752 | -1085.5 | 999999 | |
| 13.97 | -10.00 | 7.87 | -10.00 | 13.36 | 56.80 | -28.08 | 74.12 | 0.4780 | -977.3 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 10.78 | 57.09 | -27.79 | 79.46 | 0.4677 | -683.0 | -548.4 | |
| 0.00 | 1.35 | 0.00 | 0.77 | 14.64 | 56.56 | -28.32 | 71.62 | 0.4856 | -817.0 | -750.6 | |
| 1.89 | -10.00 | 1.07 | -10.00 | 13.07 | 56.59 | -28.29 | 74.79 | 0.4803 | -773.3 | 999999 | |
| 4.06 | -10.00 | 2.29 | -10.00 | 12.91 | 56.43 | -28.44 | 75.18 | 0.4822 | -702.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 13.40 | 56.37 | -28.51 | 74.21 | 0.4844 | -566.0 | -436.7 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 11.00 | 56.61 | -28.26 | 79.11 | 0.4753 | -689.0 | -511.6 | |
| 0.00 | 2.07 | 0.00 | 1.17 | 13.82 | 56.24 | -28.63 | 73.40 | 0.4875 | -752.0 | -520.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 14.40 | 56.16 | -28.71 | 72.26 | 0.4905 | -614.0 | -589.1 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 12.21 | 56.37 | -28.50 | 76.65 | 0.4813 | -632.0 | -523.6 | |
| 0.72 | 2.61 | 0.41 | 1.48 | 13.54 | 56.14 | -28.74 | 74.01 | 0.4882 | -852.5 | -677.3 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 14.42 | 55.98 | -28.89 | 72.30 | 0.4932 | -675.0 | -584.3 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 14.67 | 55.95 | -28.93 | 71.83 | 0.4945 | -500.0 | -311.7 | |
| 0.00 | 0.99 | 0.00 | 0.57 | 14.94 | 55.87 | -29.00 | 71.32 | 0.4965 | -550.0 | -454.5 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 12.07 | 56.21 | -28.66 | 76.97 | 0.4834 | -569.0 | -379.6 | |
| 0.00 | 2.07 | 0.00 | 1.18 | 13.26 | 56.03 | -28.84 | 74.61 | 0.4890 | -780.0 | -592.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 14.17 | 55.80 | -29.07 | 72.88 | 0.4950 | -675.0 | -550.4 | |
| 0.00 | 3.79 | 0.00 | 2.15 | 13.53 | 55.85 | -29.02 | 74.14 | 0.4923 | -785.0 | -666.1 | |
| 0.00 | 1.98 | 0.00 | 1.13 | 13.09 | 55.77 | -29.11 | 75.04 | 0.4924 | -355.0 | -233.0 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 13.79 | 55.68 | -29.20 | 73.68 | 0.4957 | -519.0 | -457.8 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 13.60 | 55.59 | -29.28 | 74.08 | 0.4963 | -544.0 | -442.7 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 11.96 | 55.73 | -29.15 | 77.35 | 0.4903 | -403.0 | -278.7 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 11.69 | 55.30 | -29.58 | 78.00 | 0.4962 | -495.0 | -296.5 | |
| 0.00 | 1.62 | 0.00 | 0.93 | 12.57 | 55.15 | -29.72 | 76.28 | 0.5001 | 870.0 | 708.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 12.24 | 54.69 | -30.18 | 77.07 | 0.5061 | 807.0 | 632.4 | |
| 0.00 | 3.24 | 0.00 | 1.86 | 11.99 | 54.65 | -30.22 | 77.57 | 0.5062 | 939.0 | 753.5 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 11.80 | 54.60 | -30.27 | 77.94 | 0.5066 | 600.0 | 506.3 | |
| 0.00 | 2.16 | 0.00 | 1.26 | 13.62 | 53.74 | -31.13 | 74.67 | 0.5231 | -714.0 | -573.0 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 14.08 | 53.68 | -31.20 | 73.83 | 0.5252 | -469.0 | -407.9 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 12.03 | 53.67 | -31.21 | 77.73 | 0.5206 | 870.0 | 649.2 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 13.67 | 52.00 | -32.87 | 75.09 | 0.5479 | 728.0 | 628.1 | |
| 0.00 | 1.80 | 0.00 | 1.07 | 14.03 | 51.72 | -33.15 | 74.53 | 0.5526 | 809.0 | 606.3 | |
| 0.00 | 1.62 | 0.00 | 0.97 | 14.29 | 51.53 | -33.35 | 74.12 | 0.5560 | 802.0 | 595.8 | |
| 0.90 | 7.03 | 0.54 | 4.19 | 14.68 | 51.35 | -33.53 | 73.48 | 0.5594 | 875.3 | 698.1 | |
| 0.00 | 2.07 | 0.00 | 1.24 | 14.15 | 51.29 | -33.59 | 74.43 | 0.5590 | 748.0 | 537.0 | |
| 0.00 | 1.26 | 0.00 | 0.75 | 13.51 | 51.32 | -33.56 | 75.57 | 0.5571 | 758.0 | 632.9 | |
| 0.00 | 1.44 | 0.00 | 0.86 | 14.17 | 51.10 | -33.78 | 74.45 | 0.5617 | 1005.0 | 847.9 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 13.93 | 51.10 | -33.78 | 74.88 | 0.5611 | 237.0 | 216.6 | |
| 4.15 | 145.39 | 2.50 | 88.07 | 15.50 | 50.59 | -34.28 | 72.29 | 0.5719 | 1207.0 | 664.1 | |
| 0.00 | 1.80 | 0.00 | 1.09 | 16.32 | 50.32 | -34.56 | 70.98 | 0.5780 | 360.0 | 246.1 | |
| 1.35 | -52.00 | 0.81 | -52.00 | 14.30 | 50.62 | -34.26 | 74.36 | 0.5686 | 959.9 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.92 | 13.96 | 50.57 | -34.31 | 74.98 | 0.5686 | 778.0 | 684.6 | |
| 0.00 | 2.61 | 0.00 | 1.58 | 15.87 | 50.18 | -34.70 | 71.78 | 0.5786 | 593.0 | 464.6 | |
| 7.39 | -52.00 | 4.47 | -52.00 | 15.41 | 50.23 | -34.65 | 72.55 | 0.5767 | 919.7 | 999999 | |
| 0.90 | -52.00 | 0.54 | -52.00 | 14.47 | 50.36 | -34.51 | 74.14 | 0.5725 | 1056.2 | 999999 | |
| 8.38 | -52.00 | 5.08 | -52.00 | 15.07 | 50.10 | -34.78 | 73.18 | 0.5775 | 1078.7 | 999999 | |
| 2.07 | -52.00 | 1.25 | -52.00 | 14.60 | 50.11 | -34.77 | 73.97 | 0.5763 | 1028.1 | 999999 | |
| 0.00 | 3.52 | 0.00 | 2.12 | 13.50 | 50.19 | -34.69 | 75.86 | 0.5729 | 765.0 | 589.6 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 14.14 | 50.08 | -34.80 | 74.78 | 0.5757 | 693.0 | 601.4 | |
| 3.79 | -52.00 | 2.31 | -52.00 | 14.69 | 49.52 | -35.36 | 73.99 | 0.5846 | 825.0 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.04 | 13.99 | 49.61 | -35.27 | 75.16 | 0.5818 | 555.0 | 454.5 | |
| 0.00 | 8.29 | 0.00 | 5.08 | 15.60 | 49.23 | -35.65 | 72.54 | 0.5907 | 8.0 | 52.6 | |
| 2.61 | -52.00 | 1.60 | -52.00 | 14.89 | 49.32 | -35.55 | 73.70 | 0.5876 | 796.2 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.26 | 13.58 | 49.56 | -35.32 | 75.86 | 0.5817 | 535.0 | 489.3 | |
| 0.00 | 0.63 | 0.00 | 0.39 | 15.31 | 48.62 | -36.26 | 73.19 | 0.5981 | 469.0 | 391.4 | |
| 0.00 | 1.89 | 0.00 | 1.17 | 11.50 | 48.20 | -36.68 | 79.63 | 0.5973 | 652.0 | 530.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
