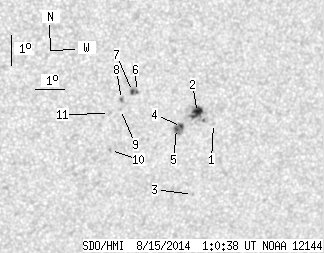

SDO HMI 2014-08-15 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.24 | 40.45 | 7.67 | 23.40 | -17.42 | 104.58 | 19.70 | 218.69 | 0.5163 | 254.9 | 214.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.74 | -17.72 | 106.04 | 21.16 | 220.34 | 0.5334 | 422.0 | 348.4 | |
| 7.84 | 16.40 | 4.55 | 9.53 | -17.33 | 105.45 | 20.57 | 220.04 | 0.5234 | 929.0 | 630.0 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -20.08 | 105.63 | 20.75 | 216.93 | 0.5559 | 599.0 | 490.9 | |
| 1.62 | 9.64 | 0.94 | 5.60 | -17.77 | 104.96 | 20.08 | 218.80 | 0.5238 | 905.1 | 638.6 | |
| 1.62 | -4.00 | 0.94 | -4.00 | -17.83 | 104.79 | 19.92 | 218.50 | 0.5229 | 898.2 | 999999 | |
| 0.36 | 5.23 | 0.21 | 2.97 | -16.54 | 103.31 | 18.43 | 218.00 | 0.4943 | -805.5 | -754.8 | |
| 1.35 | -6.00 | 0.77 | -6.00 | -16.54 | 103.17 | 18.30 | 217.80 | 0.4930 | -926.7 | 999999 | |
| 0.45 | 2.52 | 0.26 | 1.44 | -16.79 | 102.83 | 17.95 | 216.96 | 0.4928 | -886.0 | -769.7 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -17.12 | 102.83 | 17.95 | 216.54 | 0.4967 | -691.0 | -530.5 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -18.48 | 102.63 | 17.76 | 214.61 | 0.5114 | 834.0 | 647.2 | |
| 0.00 | 1.98 | 0.00 | 1.13 | -17.24 | 102.47 | 17.60 | 215.85 | 0.4950 | -542.0 | -459.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
