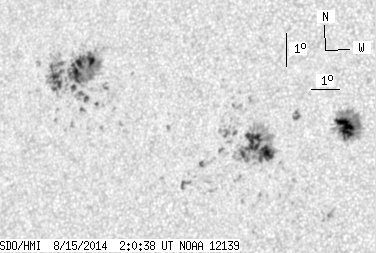

SDO HMI 2014-08-15 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.90 | 414.04 | 49.71 | 238.24 | 13.99 | 54.37 | -29.95 | 73.48 | 0.5060 | -160.6 | 27.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.11 | 67.07 | 10.45 | 36.65 | 13.97 | 59.98 | -24.35 | 71.02 | 0.4248 | -1242.2 | -546.6 | |
| 0.00 | 5.32 | 0.00 | 2.90 | 11.27 | 59.74 | -24.59 | 77.44 | 0.4198 | -933.0 | -785.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 11.08 | 59.52 | -24.81 | 77.97 | 0.4228 | -843.0 | -693.9 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 11.93 | 58.82 | -25.51 | 76.24 | 0.4356 | -805.0 | -732.0 | |
| 1.26 | 5.95 | 0.70 | 3.30 | 14.17 | 58.26 | -26.07 | 71.52 | 0.4511 | -1085.7 | -790.3 | |
| 0.00 | 1.98 | 0.00 | 1.09 | 12.25 | 58.37 | -25.95 | 75.70 | 0.4432 | -910.0 | -707.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 11.54 | 58.41 | -25.92 | 77.26 | 0.4408 | -826.0 | -714.2 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 12.59 | 57.99 | -26.34 | 75.08 | 0.4499 | -840.0 | -671.9 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 12.77 | 57.83 | -26.50 | 74.76 | 0.4528 | -787.0 | -756.7 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 11.77 | 57.94 | -26.39 | 76.93 | 0.4485 | -900.0 | -635.5 | |
| 14.96 | 97.99 | 8.35 | 54.82 | 13.02 | 57.31 | -27.01 | 74.43 | 0.4613 | -1100.9 | -469.3 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 12.49 | 57.20 | -27.13 | 75.60 | 0.4615 | -573.0 | -493.1 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 11.76 | 57.24 | -27.08 | 77.16 | 0.4590 | -688.0 | -577.1 | |
| 3.34 | -11.00 | 1.87 | -11.00 | 13.22 | 56.97 | -27.35 | 74.14 | 0.4669 | -1058.9 | 999999 | |
| 10.82 | -11.00 | 6.06 | -11.00 | 13.46 | 56.84 | -27.49 | 73.70 | 0.4696 | -987.4 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 10.60 | 57.15 | -27.18 | 79.72 | 0.4581 | -633.0 | -519.2 | |
| 3.16 | -11.00 | 1.77 | -11.00 | 13.18 | 56.77 | -27.56 | 74.31 | 0.4698 | -942.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 14.67 | 56.54 | -27.79 | 71.32 | 0.4780 | -777.0 | -686.7 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 14.36 | 56.44 | -27.89 | 72.00 | 0.4784 | -785.0 | -666.7 | |
| 2.07 | -11.00 | 1.16 | -11.00 | 12.95 | 56.55 | -27.78 | 74.87 | 0.4724 | -814.5 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 11.52 | 56.68 | -27.65 | 77.85 | 0.4671 | -658.0 | -533.2 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 13.46 | 56.38 | -27.95 | 73.87 | 0.4764 | -623.0 | -443.4 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 14.83 | 56.16 | -28.17 | 71.16 | 0.4841 | -664.0 | -509.5 | |
| 0.00 | 5.05 | 0.00 | 2.85 | 14.40 | 56.15 | -28.18 | 72.04 | 0.4827 | -638.0 | -628.8 | |
| 0.00 | 3.34 | 0.00 | 1.87 | 12.21 | 56.42 | -27.90 | 76.47 | 0.4724 | -511.0 | -486.0 | |
| 0.45 | 2.34 | 0.25 | 1.32 | 13.57 | 56.15 | -28.17 | 73.73 | 0.4800 | -942.8 | -724.3 | |
| 0.00 | 1.89 | 0.00 | 1.07 | 13.72 | 56.10 | -28.23 | 73.44 | 0.4813 | -699.0 | -664.2 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 14.67 | 55.93 | -28.39 | 71.60 | 0.4867 | -541.0 | -395.2 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 13.99 | 55.99 | -28.34 | 72.93 | 0.4837 | -603.0 | -475.8 | |
| 0.00 | 2.70 | 0.00 | 1.53 | 13.32 | 56.01 | -28.32 | 74.30 | 0.4814 | -745.0 | -558.6 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 12.95 | 55.98 | -28.34 | 75.07 | 0.4808 | 125.0 | 44.9 | |
| 0.00 | 7.93 | 0.00 | 4.49 | 13.62 | 55.83 | -28.50 | 73.77 | 0.4849 | -625.0 | -571.3 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 13.77 | 55.77 | -28.55 | 73.48 | 0.4862 | -466.0 | -392.6 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 15.20 | 55.54 | -28.79 | 70.72 | 0.4944 | -530.0 | -420.8 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 13.95 | 55.68 | -28.65 | 73.16 | 0.4881 | -432.0 | -353.9 | |
| 0.00 | 2.61 | 0.00 | 1.48 | 13.03 | 55.72 | -28.60 | 75.00 | 0.4848 | -581.0 | -369.7 | |
| 0.00 | 1.98 | 0.00 | 1.12 | 11.76 | 55.56 | -28.77 | 77.64 | 0.4843 | 154.0 | 154.8 | |
| 0.00 | 3.97 | 0.00 | 2.25 | 12.57 | 55.14 | -29.19 | 76.13 | 0.4922 | 963.0 | 730.6 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 12.19 | 54.90 | -29.42 | 76.96 | 0.4949 | 771.0 | 573.5 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 12.27 | 54.68 | -29.65 | 76.87 | 0.4984 | 746.0 | 594.8 | |
| 0.00 | 5.95 | 0.00 | 3.40 | 11.93 | 54.61 | -29.72 | 77.56 | 0.4986 | 517.0 | 714.4 | |
| 0.00 | 2.07 | 0.00 | 1.20 | 13.63 | 53.78 | -30.55 | 74.48 | 0.5147 | -724.0 | -567.0 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 14.05 | 53.71 | -30.61 | 73.68 | 0.5167 | -644.0 | -416.7 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 12.09 | 53.73 | -30.60 | 77.46 | 0.5119 | 783.0 | 649.9 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 15.20 | 52.21 | -32.12 | 72.09 | 0.5413 | -665.0 | -511.3 | |
| 0.00 | 1.98 | 0.00 | 1.16 | 13.42 | 52.23 | -32.09 | 75.35 | 0.5363 | 836.0 | 622.5 | |
| 0.00 | 1.98 | 0.00 | 1.17 | 13.65 | 52.01 | -32.31 | 74.98 | 0.5399 | 725.0 | 608.3 | |
| 0.00 | 1.71 | 0.00 | 1.01 | 14.06 | 51.69 | -32.64 | 74.33 | 0.5455 | 745.0 | 654.9 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 14.29 | 51.50 | -32.83 | 73.96 | 0.5487 | 781.0 | 639.6 | |
| 0.36 | 3.70 | 0.21 | 2.19 | 14.71 | 51.28 | -33.04 | 73.28 | 0.5528 | 984.5 | 727.3 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 14.16 | 51.30 | -33.03 | 74.26 | 0.5512 | 542.0 | 404.8 | |
| 0.00 | 1.53 | 0.00 | 0.91 | 13.48 | 51.33 | -32.99 | 75.47 | 0.5492 | 829.0 | 661.0 | |
| 0.00 | 2.16 | 0.00 | 1.29 | 14.61 | 51.15 | -33.18 | 73.50 | 0.5544 | 758.0 | 590.2 | |
| 0.54 | 1.44 | 0.32 | 0.86 | 14.20 | 51.03 | -33.30 | 74.26 | 0.5550 | 849.3 | 754.3 | |
| 3.97 | 75.81 | 2.38 | 45.48 | 15.51 | 50.61 | -33.71 | 72.10 | 0.5642 | 1185.7 | 709.1 | |
| 0.00 | 1.62 | 0.00 | 0.97 | 14.62 | 50.77 | -33.56 | 73.60 | 0.5597 | 840.0 | 602.4 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 13.42 | 50.82 | -33.51 | 75.72 | 0.5562 | 692.0 | 586.6 | |
| 1.98 | 9.56 | 1.18 | 5.72 | 14.33 | 50.63 | -33.70 | 74.15 | 0.5609 | 973.2 | 825.3 | |
| 0.54 | 2.16 | 0.32 | 1.29 | 13.99 | 50.50 | -33.83 | 74.80 | 0.5619 | 842.5 | 742.2 | |
| 4.24 | -55.00 | 2.55 | -55.00 | 15.39 | 50.18 | -34.15 | 72.45 | 0.5698 | 1028.0 | 999999 | |
| 9.01 | -55.00 | 5.43 | -55.00 | 15.07 | 50.12 | -34.20 | 73.01 | 0.5697 | 1108.2 | 999999 | |
| 1.89 | 4.06 | 1.14 | 2.44 | 14.64 | 50.09 | -34.24 | 73.77 | 0.5692 | 1029.2 | 802.7 | |
| 0.00 | 2.34 | 0.00 | 1.40 | 13.51 | 50.24 | -34.09 | 75.70 | 0.5645 | 659.0 | 642.2 | |
| 0.00 | 1.71 | 0.00 | 1.04 | 15.67 | 49.86 | -34.47 | 72.05 | 0.5750 | 59.0 | 89.4 | |
| 0.00 | 3.61 | 0.00 | 2.18 | 14.56 | 49.80 | -34.53 | 73.99 | 0.5729 | 746.0 | 648.8 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 13.31 | 49.97 | -34.36 | 76.12 | 0.5679 | 541.0 | 404.8 | |
| 0.81 | 43.99 | 0.49 | 26.71 | 15.10 | 49.51 | -34.82 | 73.15 | 0.5782 | 746.1 | 455.9 | |
| 3.79 | -67.00 | 2.29 | -67.00 | 14.73 | 49.50 | -34.83 | 73.79 | 0.5774 | 834.5 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.87 | 13.90 | 49.57 | -34.76 | 75.19 | 0.5746 | 545.0 | 493.2 | |
| 3.25 | -67.00 | 1.97 | -67.00 | 14.93 | 49.34 | -34.98 | 73.48 | 0.5800 | 798.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 13.59 | 49.58 | -34.75 | 75.72 | 0.5738 | 659.0 | 565.4 | |
| 1.35 | -67.00 | 0.82 | -67.00 | 14.56 | 49.37 | -34.95 | 74.10 | 0.5787 | 541.5 | 999999 | |
| 0.00 | 2.97 | 0.00 | 1.82 | 15.29 | 48.62 | -35.71 | 73.08 | 0.5906 | 518.0 | 379.4 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 14.38 | 48.44 | -35.88 | 74.65 | 0.5910 | 258.0 | 236.8 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 11.51 | 48.22 | -36.10 | 79.54 | 0.5893 | 682.0 | 574.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
