SDO HMI 2014-08-15 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.68 | 12.97 | 5.10 | 13.89 | -6.46 | 23.21 | -61.12 | 100.89 | 0.8870 | -254.3 | -184.7 | |
|
previous
or next observation for the same group /

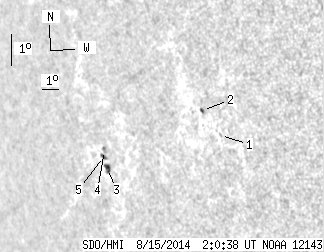

back to the solar disc SDO HMI 2014-08-15 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.89 | -5.32 | 29.11 | -55.22 | 100.93 | 0.8350 | 593.0 | 504.3 | |
| 0.63 | 1.80 | 0.58 | 1.65 | -4.64 | 28.22 | -56.11 | 99.91 | 0.8420 | 557.3 | 500.2 | |
| 2.88 | 4.87 | 3.21 | 5.42 | -7.05 | 22.08 | -62.24 | 101.30 | 0.8974 | -541.7 | -345.7 | |
| 0.00 | 2.61 | 0.00 | 2.91 | -6.50 | 22.01 | -62.31 | 100.68 | 0.8971 | -494.0 | -440.8 | |
| 1.17 | 2.70 | 1.31 | 3.02 | -6.70 | 21.90 | -62.42 | 100.87 | 0.8983 | -373.2 | -327.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
