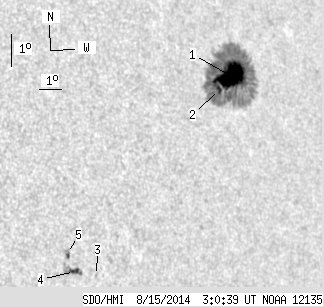

SDO HMI 2014-08-15 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.03 | 260.65 | 31.33 | 199.33 | 15.01 | 133.63 | 49.85 | 284.04 | 0.7629 | -748.5 | -254.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.07 | 242.98 | 27.10 | 187.62 | 15.34 | 134.17 | 50.39 | 284.46 | 0.7695 | -942.8 | -305.4 | |
| 2.89 | -1.00 | 2.20 | -1.00 | 14.99 | 133.46 | 49.69 | 284.07 | 0.7616 | -1002.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 9.83 | 126.69 | 42.91 | 277.30 | 0.6787 | 575.0 | 400.0 | |
| 3.07 | 12.71 | 2.03 | 8.42 | 10.02 | 125.80 | 42.02 | 277.61 | 0.6673 | 746.1 | 602.2 | |
| 0.00 | 4.15 | 0.00 | 2.74 | 10.59 | 125.60 | 41.82 | 278.48 | 0.6650 | 721.0 | 588.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
