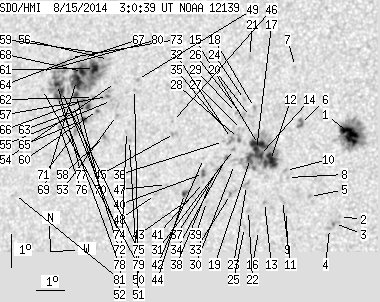

SDO HMI 2014-08-15 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.73 | 433.19 | 55.82 | 248.40 | 14.04 | 54.23 | -29.55 | 73.23 | 0.5004 | -129.3 | 21.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.11 | 67.98 | 10.95 | 36.99 | 13.97 | 60.01 | -23.77 | 70.69 | 0.4162 | -1247.7 | -528.4 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 11.46 | 59.88 | -23.90 | 76.73 | 0.4096 | -714.0 | -493.5 | |
| 0.00 | 2.70 | 0.00 | 1.47 | 11.24 | 59.73 | -24.05 | 77.32 | 0.4114 | -902.0 | -841.4 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 11.08 | 59.58 | -24.20 | 77.76 | 0.4134 | -917.0 | -718.8 | |
| 0.00 | 1.89 | 0.00 | 1.04 | 12.02 | 58.81 | -24.97 | 75.83 | 0.4276 | -825.0 | -649.8 | |
| 0.00 | 5.23 | 0.00 | 2.89 | 14.23 | 58.25 | -25.52 | 71.11 | 0.4433 | -1090.0 | -855.6 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 15.97 | 57.86 | -25.92 | 67.61 | 0.4564 | -443.0 | -398.6 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 12.56 | 57.99 | -25.78 | 74.93 | 0.4415 | -862.0 | -603.8 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 11.53 | 58.06 | -25.71 | 77.24 | 0.4377 | -788.0 | -577.1 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 12.77 | 57.90 | -25.88 | 74.50 | 0.4435 | -905.0 | -761.4 | |
| 0.00 | 3.70 | 0.00 | 2.04 | 11.85 | 57.89 | -25.88 | 76.56 | 0.4411 | -674.0 | -486.4 | |
| 12.53 | 92.05 | 6.96 | 51.27 | 13.05 | 57.35 | -26.43 | 74.12 | 0.4526 | -1146.0 | -508.8 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 11.76 | 57.28 | -26.50 | 76.97 | 0.4502 | -790.0 | -660.6 | |
| 5.32 | -12.00 | 2.96 | -12.00 | 13.19 | 56.95 | -26.83 | 74.00 | 0.4590 | -1037.4 | 999999 | |
| 9.38 | -12.00 | 5.23 | -12.00 | 13.52 | 56.87 | -26.90 | 73.32 | 0.4612 | -947.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 10.90 | 57.16 | -26.62 | 78.91 | 0.4502 | -375.0 | -442.8 | |
| 3.43 | -12.00 | 1.91 | -12.00 | 13.36 | 56.82 | -26.95 | 73.67 | 0.4614 | -1053.8 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.06 | 14.64 | 56.59 | -27.19 | 71.09 | 0.4692 | -932.0 | -659.6 | |
| 4.69 | -12.00 | 2.62 | -12.00 | 13.08 | 56.65 | -27.13 | 74.35 | 0.4632 | -803.8 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.01 | 14.36 | 56.49 | -27.29 | 71.73 | 0.4697 | -747.0 | -566.7 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 16.19 | 56.19 | -27.58 | 68.13 | 0.4811 | -658.0 | -553.0 | |
| 0.00 | 2.16 | 0.00 | 1.20 | 11.49 | 56.75 | -27.03 | 77.73 | 0.4576 | -702.0 | -551.7 | |
| 0.00 | 3.88 | 0.00 | 2.16 | 12.25 | 56.60 | -27.18 | 76.14 | 0.4616 | -469.0 | -479.5 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 14.87 | 56.21 | -27.57 | 70.81 | 0.4756 | -657.0 | -464.2 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 10.97 | 56.67 | -27.11 | 78.89 | 0.4578 | -726.0 | -493.3 | |
| 0.00 | 3.88 | 0.00 | 2.18 | 14.38 | 56.20 | -27.58 | 71.83 | 0.4739 | -717.0 | -633.4 | |
| 0.00 | 2.70 | 0.00 | 1.52 | 13.95 | 56.22 | -27.55 | 72.71 | 0.4721 | -619.0 | -480.8 | |
| 0.00 | 3.43 | 0.00 | 1.92 | 13.67 | 56.15 | -27.63 | 73.32 | 0.4723 | -954.0 | -794.0 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 14.46 | 55.98 | -27.80 | 71.76 | 0.4774 | -768.0 | -603.4 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 12.87 | 56.11 | -27.67 | 75.01 | 0.4706 | 257.0 | 201.6 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 13.32 | 56.02 | -27.76 | 74.09 | 0.4732 | -764.0 | -680.1 | |
| 0.00 | 6.13 | 0.00 | 3.45 | 13.65 | 55.91 | -27.87 | 73.45 | 0.4758 | -762.0 | -603.5 | |
| 0.00 | 1.80 | 0.00 | 1.01 | 11.95 | 56.07 | -27.70 | 76.96 | 0.4688 | -690.0 | -553.3 | |
| 0.54 | 2.43 | 0.30 | 1.37 | 13.07 | 55.80 | -27.97 | 74.70 | 0.4756 | -617.0 | -420.2 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 13.92 | 55.66 | -28.12 | 73.01 | 0.4803 | -454.0 | -399.4 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 13.55 | 55.64 | -28.14 | 73.77 | 0.4795 | -472.0 | -419.4 | |
| 0.00 | 2.16 | 0.00 | 1.22 | 12.65 | 55.54 | -28.24 | 75.65 | 0.4785 | 756.0 | 642.3 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 12.27 | 55.33 | -28.45 | 76.50 | 0.4806 | 684.0 | 549.9 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 11.69 | 55.26 | -28.52 | 77.73 | 0.4804 | -478.0 | -390.8 | |
| 1.26 | 3.25 | 0.71 | 1.84 | 12.54 | 55.05 | -28.72 | 76.05 | 0.4853 | 968.4 | 727.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 12.26 | 55.09 | -28.69 | 76.60 | 0.4842 | 450.0 | 419.0 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 12.99 | 55.00 | -28.78 | 75.14 | 0.4873 | 483.0 | 383.1 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 11.82 | 54.75 | -29.03 | 77.61 | 0.4883 | 884.0 | 665.9 | |
| 1.35 | 4.96 | 0.77 | 2.82 | 11.89 | 54.45 | -29.32 | 77.54 | 0.4928 | 880.9 | 676.1 | |
| 0.00 | 3.52 | 0.00 | 2.02 | 13.70 | 53.86 | -29.91 | 74.13 | 0.5057 | -590.0 | -531.2 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 14.06 | 53.74 | -30.04 | 73.47 | 0.5085 | -535.0 | -434.6 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 12.13 | 53.78 | -30.00 | 77.24 | 0.5032 | 750.0 | 505.9 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 11.80 | 53.43 | -30.35 | 77.97 | 0.5077 | 759.0 | 589.4 | |
| 0.00 | 1.26 | 0.00 | 0.74 | 15.27 | 52.27 | -31.51 | 71.73 | 0.5330 | -774.0 | -496.5 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 14.96 | 52.21 | -31.57 | 72.33 | 0.5328 | -412.0 | -347.8 | |
| 0.00 | 1.26 | 0.00 | 0.74 | 13.39 | 52.27 | -31.51 | 75.23 | 0.5278 | 877.0 | 676.7 | |
| 0.00 | 1.44 | 0.00 | 0.84 | 13.66 | 52.12 | -31.66 | 74.77 | 0.5306 | 595.0 | 559.5 | |
| 0.00 | 1.35 | 0.00 | 0.79 | 14.13 | 51.68 | -32.10 | 74.05 | 0.5380 | 878.0 | 724.9 | |
| 0.00 | 1.62 | 0.00 | 0.96 | 15.13 | 51.48 | -32.30 | 72.28 | 0.5436 | -210.0 | -144.7 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 14.57 | 51.42 | -32.35 | 73.31 | 0.5428 | 636.0 | 620.8 | |
| 0.00 | 1.71 | 0.00 | 1.02 | 15.82 | 51.10 | -32.68 | 71.18 | 0.5510 | 409.0 | 383.4 | |
| 0.45 | 6.31 | 0.27 | 3.73 | 14.69 | 51.26 | -32.52 | 73.16 | 0.5455 | 1046.8 | 727.6 | |
| 0.00 | 1.80 | 0.00 | 1.06 | 13.46 | 51.34 | -32.44 | 75.37 | 0.5413 | 746.0 | 667.8 | |
| 0.00 | 1.71 | 0.00 | 1.02 | 15.99 | 50.80 | -32.98 | 71.00 | 0.5555 | 458.0 | 456.1 | |
| 0.54 | 1.80 | 0.32 | 1.07 | 14.24 | 50.96 | -32.82 | 74.07 | 0.5485 | 931.3 | 742.7 | |
| 4.96 | 135.96 | 2.95 | 81.44 | 15.51 | 50.62 | -33.15 | 71.90 | 0.5565 | 1159.3 | 581.7 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 14.62 | 50.74 | -33.04 | 73.44 | 0.5525 | 907.0 | 791.2 | |
| 1.89 | 10.91 | 1.12 | 6.49 | 14.34 | 50.57 | -33.21 | 74.01 | 0.5542 | 975.8 | 785.1 | |
| 0.00 | 1.71 | 0.00 | 1.02 | 15.95 | 50.24 | -33.54 | 71.26 | 0.5631 | 513.0 | 447.7 | |
| 1.98 | 3.25 | 1.18 | 1.93 | 13.93 | 50.48 | -33.30 | 74.75 | 0.5544 | 901.5 | 730.4 | |
| 0.99 | -63.00 | 0.59 | -63.00 | 14.51 | 50.39 | -33.39 | 73.75 | 0.5571 | 1038.0 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 15.82 | 50.15 | -33.63 | 71.52 | 0.5639 | 550.0 | 424.6 | |
| 4.33 | -61.00 | 2.59 | -61.00 | 15.39 | 50.19 | -33.59 | 72.25 | 0.5621 | 1056.1 | 999999 | |
| 13.25 | -61.00 | 7.93 | -61.00 | 15.10 | 50.02 | -33.76 | 72.82 | 0.5637 | 1016.4 | 999999 | |
| 2.34 | -61.00 | 1.40 | -61.00 | 14.68 | 50.09 | -33.68 | 73.54 | 0.5616 | 1047.4 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.45 | 13.52 | 50.25 | -33.53 | 75.56 | 0.5567 | 769.0 | 700.2 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 14.37 | 50.03 | -33.74 | 74.11 | 0.5616 | 686.0 | 589.2 | |
| 0.00 | 1.53 | 0.00 | 0.92 | 15.79 | 49.66 | -34.12 | 71.74 | 0.5705 | 436.0 | 331.1 | |
| 0.00 | 2.25 | 0.00 | 1.35 | 14.44 | 49.76 | -34.02 | 74.06 | 0.5657 | 686.0 | 578.7 | |
| 3.34 | -61.00 | 2.01 | -61.00 | 14.73 | 49.51 | -34.26 | 73.62 | 0.5697 | 829.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 13.66 | 49.62 | -34.16 | 75.46 | 0.5658 | 682.0 | 585.5 | |
| 3.25 | -61.00 | 1.96 | -61.00 | 14.94 | 49.32 | -34.45 | 73.32 | 0.5728 | 757.5 | 999999 | |
| 1.80 | -61.00 | 1.09 | -61.00 | 14.57 | 49.39 | -34.39 | 73.93 | 0.5710 | 577.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.49 | 14.75 | 48.78 | -34.99 | 73.80 | 0.5797 | 375.0 | 291.1 | |
| 0.00 | 1.44 | 0.00 | 0.88 | 15.30 | 48.64 | -35.13 | 72.91 | 0.5829 | 547.0 | 412.1 | |
| 0.00 | 1.98 | 0.00 | 1.21 | 11.49 | 48.25 | -35.53 | 79.50 | 0.5814 | 668.0 | 581.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
