SDO HMI 2014-08-15 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.38 | 262.21 | 33.81 | 202.90 | 15.05 | 133.63 | 50.40 | 284.05 | 0.7690 | -797.4 | -231.5 | |
|
previous
or next observation for the same group /

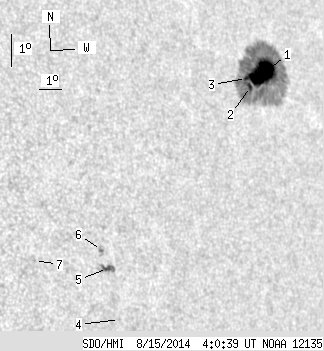

back to the solar disc SDO HMI 2014-08-15 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.06 | 246.52 | 28.95 | 192.44 | 15.35 | 134.18 | 50.95 | 284.42 | 0.7755 | -972.2 | -287.9 | |
| 3.52 | -1.00 | 2.71 | -1.00 | 15.01 | 133.47 | 50.24 | 284.04 | 0.7676 | -972.3 | 999999 | |
| 2.80 | -1.00 | 2.15 | -1.00 | 15.27 | 133.36 | 50.13 | 284.39 | 0.7666 | -1054.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 8.46 | 126.07 | 42.84 | 275.28 | 0.6777 | 710.0 | 571.0 | |
| 0.00 | 9.38 | 0.00 | 6.27 | 10.04 | 125.81 | 42.58 | 277.62 | 0.6744 | 811.0 | 661.1 | |
| 0.00 | 4.24 | 0.00 | 2.83 | 10.60 | 125.65 | 42.42 | 278.47 | 0.6726 | 778.0 | 588.0 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 10.50 | 122.88 | 39.65 | 278.47 | 0.6366 | 599.0 | 477.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
