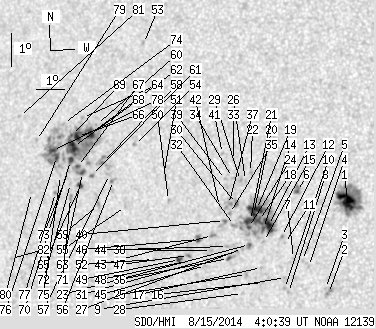

SDO HMI 2014-08-15 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.41 | 444.88 | 51.82 | 253.84 | 14.07 | 54.20 | -29.03 | 72.99 | 0.4930 | -152.0 | 41.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.03 | 65.82 | 9.78 | 35.68 | 13.97 | 60.01 | -23.22 | 70.37 | 0.4079 | -1259.8 | -582.2 | |
| 0.00 | 4.24 | 0.00 | 2.29 | 11.11 | 59.64 | -23.59 | 77.48 | 0.4040 | -840.0 | -771.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 11.25 | 59.52 | -23.71 | 77.16 | 0.4061 | -735.0 | -642.8 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 11.90 | 58.89 | -24.34 | 75.87 | 0.4177 | -887.0 | -638.4 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 12.07 | 58.67 | -24.56 | 75.55 | 0.4215 | -742.0 | -606.8 | |
| 0.99 | 4.60 | 0.55 | 2.53 | 14.17 | 58.27 | -24.96 | 70.95 | 0.4346 | -1046.1 | -839.7 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 12.12 | 58.35 | -24.88 | 75.58 | 0.4264 | -844.0 | -714.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 11.07 | 58.28 | -24.95 | 78.03 | 0.4249 | -696.0 | -592.8 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 11.53 | 58.14 | -25.09 | 77.03 | 0.4282 | -716.0 | -641.5 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 11.19 | 58.13 | -25.10 | 77.81 | 0.4274 | -755.0 | -531.0 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 12.56 | 58.00 | -25.23 | 74.71 | 0.4331 | -828.0 | -562.4 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 12.77 | 57.87 | -25.35 | 74.29 | 0.4356 | -956.0 | -754.2 | |
| 8.57 | 95.40 | 4.73 | 52.87 | 13.08 | 57.39 | -25.84 | 73.80 | 0.4439 | -1206.8 | -531.4 | |
| 1.08 | -13.00 | 0.60 | -13.00 | 12.98 | 57.23 | -26.00 | 74.10 | 0.4460 | -930.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 12.58 | 57.27 | -25.96 | 74.96 | 0.4442 | -784.0 | -631.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 11.34 | 57.36 | -25.86 | 77.72 | 0.4396 | -787.0 | -592.2 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 11.79 | 57.29 | -25.94 | 76.72 | 0.4418 | -779.0 | -653.5 | |
| 4.15 | -13.00 | 2.30 | -13.00 | 13.22 | 57.03 | -26.20 | 73.67 | 0.4497 | -1057.3 | 999999 | |
| 8.21 | -13.00 | 4.55 | -13.00 | 13.55 | 56.92 | -26.31 | 72.99 | 0.4524 | -975.2 | 999999 | |
| 3.16 | -13.00 | 1.75 | -13.00 | 13.39 | 56.83 | -26.40 | 73.37 | 0.4532 | -1045.8 | 999999 | |
| 5.59 | -13.00 | 3.11 | -13.00 | 13.20 | 56.75 | -26.48 | 73.82 | 0.4538 | -903.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 14.67 | 56.57 | -26.66 | 70.77 | 0.4616 | -864.0 | -705.9 | |
| 0.72 | 2.98 | 0.40 | 1.65 | 12.47 | 56.80 | -26.43 | 75.40 | 0.4510 | -873.5 | -674.0 | |
| 0.99 | -13.00 | 0.55 | -13.00 | 12.99 | 56.71 | -26.52 | 74.31 | 0.4538 | -871.5 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 11.55 | 56.79 | -26.44 | 77.42 | 0.4488 | -734.0 | -627.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 14.41 | 56.43 | -26.80 | 71.38 | 0.4627 | -708.0 | -561.7 | |
| 0.00 | 1.98 | 0.00 | 1.10 | 12.34 | 56.57 | -26.66 | 75.77 | 0.4541 | -526.0 | -329.7 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 10.97 | 56.71 | -26.52 | 78.74 | 0.4488 | -600.0 | -444.3 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 14.41 | 56.25 | -26.98 | 71.48 | 0.4652 | -808.0 | -631.2 | |
| 0.90 | 3.25 | 0.50 | 1.81 | 13.70 | 56.20 | -27.03 | 73.00 | 0.4636 | -946.7 | -748.7 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 12.23 | 56.37 | -26.86 | 76.07 | 0.4568 | -508.0 | -364.8 | |
| 0.00 | 2.52 | 0.00 | 1.41 | 13.02 | 56.21 | -27.02 | 74.43 | 0.4613 | 138.0 | 45.2 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 15.00 | 55.93 | -27.30 | 70.40 | 0.4722 | -598.0 | -389.9 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 14.48 | 55.96 | -27.27 | 71.46 | 0.4698 | -642.0 | -568.9 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 13.38 | 56.00 | -27.23 | 73.76 | 0.4656 | -732.0 | -589.0 | |
| 0.81 | 3.34 | 0.45 | 1.86 | 12.01 | 56.12 | -27.11 | 76.64 | 0.4600 | -712.1 | -530.5 | |
| 0.00 | 7.03 | 0.00 | 3.94 | 13.65 | 55.93 | -27.30 | 73.21 | 0.4675 | -815.0 | -584.9 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 12.37 | 56.04 | -27.19 | 75.89 | 0.4621 | 601.0 | 469.7 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 14.41 | 55.72 | -27.51 | 71.72 | 0.4730 | -376.0 | -352.9 | |
| 0.36 | 4.69 | 0.20 | 2.62 | 13.16 | 55.85 | -27.38 | 74.29 | 0.4671 | -694.5 | -213.6 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 15.20 | 55.51 | -27.72 | 70.21 | 0.4790 | -599.0 | -417.2 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 13.57 | 55.62 | -27.61 | 73.50 | 0.4718 | -413.0 | -321.9 | |
| 0.00 | 3.34 | 0.00 | 1.87 | 12.68 | 55.48 | -27.75 | 75.43 | 0.4712 | 919.0 | 608.7 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 12.22 | 55.50 | -27.73 | 76.39 | 0.4698 | 316.0 | 270.3 | |
| 0.00 | 2.16 | 0.00 | 1.21 | 11.75 | 55.34 | -27.89 | 77.43 | 0.4711 | -349.0 | -269.2 | |
| 1.80 | 4.60 | 1.02 | 2.59 | 12.53 | 55.00 | -28.23 | 75.90 | 0.4779 | 1015.1 | 749.5 | |
| 0.36 | 1.44 | 0.20 | 0.81 | 12.03 | 54.71 | -28.52 | 77.04 | 0.4811 | 937.8 | 779.1 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 11.84 | 54.62 | -28.60 | 77.45 | 0.4820 | 832.0 | 605.0 | |
| 2.16 | 3.70 | 1.22 | 2.09 | 11.89 | 54.41 | -28.82 | 77.41 | 0.4853 | 913.0 | 691.5 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 13.66 | 53.79 | -29.44 | 74.03 | 0.4987 | -707.0 | -616.7 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 14.38 | 53.51 | -29.72 | 72.72 | 0.5049 | -486.0 | -483.1 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 11.84 | 53.49 | -29.74 | 77.76 | 0.4989 | 791.0 | 618.3 | |
| 0.00 | 1.53 | 0.00 | 0.90 | 18.42 | 52.08 | -31.15 | 65.86 | 0.5399 | 582.0 | 545.5 | |
| 0.00 | 1.44 | 0.00 | 0.84 | 15.30 | 52.31 | -30.92 | 71.45 | 0.5248 | -767.0 | -572.6 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 13.39 | 52.27 | -30.96 | 75.06 | 0.5199 | 734.0 | 601.6 | |
| 0.00 | 2.80 | 0.00 | 1.63 | 14.16 | 51.72 | -31.51 | 73.79 | 0.5298 | 732.0 | 675.0 | |
| 0.00 | 2.16 | 0.00 | 1.27 | 14.33 | 51.55 | -31.68 | 73.53 | 0.5327 | 547.0 | 466.5 | |
| 0.45 | 10.37 | 0.26 | 6.08 | 14.69 | 51.23 | -32.00 | 72.99 | 0.5381 | 959.6 | 754.4 | |
| 0.00 | 2.43 | 0.00 | 1.42 | 13.40 | 51.28 | -31.95 | 75.35 | 0.5341 | 767.0 | 556.0 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 15.83 | 50.81 | -32.42 | 71.06 | 0.5474 | 747.0 | 683.0 | |
| 0.63 | 1.89 | 0.37 | 1.11 | 14.27 | 50.89 | -32.34 | 73.87 | 0.5418 | 924.9 | 708.8 | |
| 6.67 | 143.37 | 3.95 | 85.34 | 15.55 | 50.64 | -32.59 | 71.64 | 0.5489 | 1114.4 | 587.7 | |
| 1.71 | 9.56 | 1.01 | 5.66 | 14.34 | 50.54 | -32.69 | 73.85 | 0.5468 | 947.9 | 829.3 | |
| 0.00 | 1.53 | 0.00 | 0.91 | 16.02 | 50.25 | -32.98 | 70.94 | 0.5557 | 564.0 | 413.4 | |
| 2.07 | 3.61 | 1.22 | 2.13 | 13.94 | 50.53 | -32.70 | 74.57 | 0.5460 | 965.0 | 728.6 | |
| 4.33 | -62.00 | 2.57 | -62.00 | 15.42 | 50.17 | -33.06 | 72.02 | 0.5550 | 1046.0 | 999999 | |
| 1.08 | -63.00 | 0.64 | -63.00 | 14.51 | 50.33 | -32.90 | 73.60 | 0.5503 | 1047.2 | 999999 | |
| 6.49 | -62.00 | 3.86 | -62.00 | 15.11 | 50.08 | -33.15 | 72.61 | 0.5554 | 1127.7 | 999999 | |
| 1.71 | -62.00 | 1.02 | -62.00 | 15.44 | 49.94 | -33.29 | 72.07 | 0.5582 | 704.6 | 999999 | |
| 2.71 | -62.00 | 1.61 | -62.00 | 14.68 | 50.04 | -33.19 | 73.39 | 0.5548 | 985.0 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.55 | 13.55 | 50.22 | -33.01 | 75.36 | 0.5495 | 758.0 | 666.6 | |
| 0.00 | 1.26 | 0.00 | 0.75 | 13.98 | 50.15 | -33.08 | 74.61 | 0.5514 | 675.0 | 544.1 | |
| 0.00 | 1.62 | 0.00 | 0.96 | 14.37 | 50.01 | -33.22 | 73.95 | 0.5543 | 619.0 | 568.3 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 15.79 | 49.57 | -33.66 | 71.59 | 0.5642 | 482.0 | 383.5 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 14.20 | 49.74 | -33.49 | 74.34 | 0.5577 | 449.0 | 367.0 | |
| 3.07 | -62.00 | 1.83 | -62.00 | 14.77 | 49.49 | -33.74 | 73.40 | 0.5625 | 855.2 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.91 | 13.67 | 49.64 | -33.59 | 75.31 | 0.5579 | 692.0 | 573.2 | |
| 2.61 | -62.00 | 1.57 | -62.00 | 14.94 | 49.31 | -33.92 | 73.15 | 0.5655 | 777.2 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.93 | 15.21 | 48.65 | -34.58 | 72.89 | 0.5752 | 478.0 | 369.3 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 13.61 | 48.74 | -34.49 | 75.63 | 0.5702 | 568.0 | 476.7 | |
| 0.00 | 1.26 | 0.00 | 0.77 | 15.90 | 47.86 | -35.37 | 71.96 | 0.5876 | 515.0 | 437.6 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 11.56 | 48.30 | -34.93 | 79.30 | 0.5731 | 707.0 | 625.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
