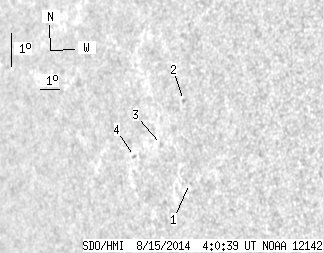

SDO HMI 2014-08-15 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.77 | 0.00 | 4.04 | 6.94 | 28.74 | -54.49 | 86.22 | 0.8119 | -411.5 | -356.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.37 | 5.72 | 30.34 | -52.89 | 87.88 | 0.7963 | -488.0 | -425.6 | |
| 0.00 | 1.44 | 0.00 | 1.19 | 8.19 | 29.63 | -53.60 | 84.73 | 0.8023 | -600.0 | -491.8 | |
| 0.00 | 1.53 | 0.00 | 1.30 | 6.76 | 28.73 | -54.50 | 86.45 | 0.8122 | -97.0 | -200.9 | |
| 0.00 | 1.35 | 0.00 | 1.18 | 6.26 | 27.35 | -55.88 | 86.95 | 0.8262 | -461.0 | -369.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
