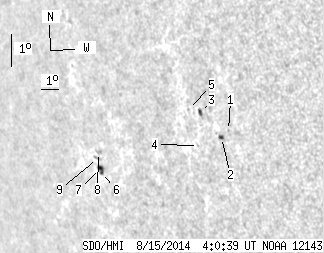

SDO HMI 2014-08-15 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.41 | 17.40 | 4.33 | 17.32 | -6.19 | 24.40 | -58.83 | 101.10 | 0.8674 | -74.9 | -150.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.62 | -5.10 | 29.72 | -53.51 | 101.08 | 0.8182 | 457.0 | 383.1 | |
| 0.99 | 2.43 | 0.86 | 2.11 | -5.35 | 29.32 | -53.91 | 101.29 | 0.8226 | 528.9 | 409.4 | |
| 1.08 | 2.71 | 0.96 | 2.40 | -4.68 | 28.30 | -54.93 | 100.24 | 0.8310 | 568.4 | 369.3 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -5.72 | 28.05 | -55.18 | 101.41 | 0.8354 | 315.0 | 331.3 | |
| 0.00 | 0.81 | 0.00 | 0.73 | -4.65 | 27.66 | -55.57 | 100.05 | 0.8370 | 492.0 | 440.9 | |
| 0.27 | 5.14 | 0.29 | 5.51 | -7.15 | 22.12 | -61.11 | 101.65 | 0.8889 | -523.7 | -426.3 | |
| 2.07 | -6.00 | 2.22 | -6.00 | -7.03 | 22.09 | -61.14 | 101.51 | 0.8890 | -574.3 | 999999 | |
| 0.00 | 2.61 | 0.00 | 2.80 | -6.54 | 22.07 | -61.16 | 100.96 | 0.8883 | -537.0 | -438.6 | |
| 0.00 | 2.71 | 0.00 | 2.91 | -6.73 | 21.96 | -61.27 | 101.16 | 0.8895 | -551.0 | -391.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
