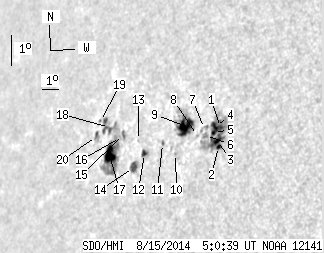

SDO HMI 2014-08-15 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.28 | 186.30 | 50.71 | 179.00 | 16.17 | 23.16 | -59.52 | 75.06 | 0.8577 | -49.1 | 86.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.89 | 51.58 | 1.66 | 45.39 | 16.88 | 26.66 | -56.02 | 74.07 | 0.8273 | -844.0 | -430.4 | |
| 1.89 | -1.00 | 1.65 | -1.00 | 16.30 | 26.81 | -55.88 | 74.77 | 0.8256 | -795.3 | 999999 | |
| 3.70 | -1.00 | 3.24 | -1.00 | 16.47 | 26.67 | -56.01 | 74.56 | 0.8270 | -904.2 | 999999 | |
| 4.87 | -1.00 | 4.30 | -1.00 | 16.88 | 26.37 | -56.31 | 74.09 | 0.8300 | -638.6 | 999999 | |
| 1.98 | -1.00 | 1.75 | -1.00 | 16.69 | 26.35 | -56.34 | 74.32 | 0.8302 | -567.5 | 999999 | |
| 0.00 | 3.16 | 0.00 | 2.82 | 16.56 | 25.94 | -56.74 | 74.50 | 0.8339 | -218.0 | -253.3 | |
| 0.00 | 3.34 | 0.00 | 2.99 | 16.76 | 25.79 | -56.89 | 74.27 | 0.8354 | -82.0 | -189.8 | |
| 0.00 | 1.26 | 0.00 | 1.14 | 16.52 | 25.49 | -57.19 | 74.58 | 0.8380 | -230.0 | -88.9 | |
| 15.87 | 38.69 | 14.63 | 35.81 | 16.72 | 24.68 | -58.00 | 74.38 | 0.8454 | -622.9 | -100.3 | |
| 0.00 | 0.99 | 0.00 | 0.92 | 15.86 | 24.49 | -58.20 | 75.42 | 0.8468 | -242.0 | -166.4 | |
| 0.54 | 1.71 | 0.51 | 1.62 | 16.08 | 23.58 | -59.10 | 75.19 | 0.8548 | -111.7 | -36.1 | |
| 2.52 | 4.24 | 2.46 | 4.13 | 15.68 | 22.65 | -60.03 | 75.69 | 0.8628 | 660.8 | 482.9 | |
| 0.00 | 0.72 | 0.00 | 0.71 | 16.03 | 22.09 | -60.59 | 75.30 | 0.8676 | 435.0 | 442.8 | |
| 4.51 | 7.48 | 4.44 | 7.38 | 15.20 | 22.18 | -60.50 | 76.26 | 0.8667 | 632.2 | 435.7 | |
| 1.26 | 3.25 | 1.29 | 3.31 | 16.12 | 21.05 | -61.63 | 75.23 | 0.8761 | 638.9 | 520.4 | |
| 0.00 | 1.35 | 0.00 | 1.39 | 16.01 | 20.91 | -61.77 | 75.36 | 0.8773 | 462.0 | 460.3 | |
| 14.25 | 45.54 | 14.78 | 47.05 | 15.43 | 20.47 | -62.21 | 76.02 | 0.8807 | 625.7 | 466.7 | |
| 0.00 | 17.22 | 0.00 | 18.13 | 16.23 | 20.03 | -62.65 | 75.12 | 0.8843 | 711.0 | 495.8 | |
| 0.00 | 1.17 | 0.00 | 1.26 | 16.35 | 19.33 | -63.35 | 75.00 | 0.8897 | 100.0 | 52.1 | |
| 0.00 | 4.60 | 0.00 | 4.95 | 15.88 | 19.32 | -63.36 | 75.53 | 0.8898 | 182.0 | 136.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
