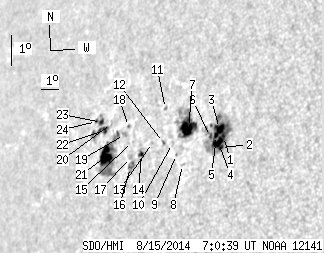

SDO HMI 2014-08-15 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.19 | 201.17 | 59.40 | 186.78 | 16.17 | 23.38 | -58.20 | 75.01 | 0.8462 | -89.1 | 89.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.71 | 65.74 | 2.30 | 56.29 | 16.63 | 26.90 | -54.68 | 74.28 | 0.8144 | -915.4 | -354.1 | |
| 0.90 | -1.00 | 0.77 | -1.00 | 16.28 | 26.88 | -54.71 | 74.71 | 0.8144 | -827.9 | 999999 | |
| 6.31 | -1.00 | 5.40 | -1.00 | 16.85 | 26.59 | -55.00 | 74.03 | 0.8176 | -780.8 | 999999 | |
| 6.40 | -1.00 | 5.46 | -1.00 | 16.42 | 26.71 | -54.87 | 74.55 | 0.8161 | -855.5 | 999999 | |
| 2.25 | -1.00 | 1.93 | -1.00 | 16.62 | 26.52 | -55.07 | 74.31 | 0.8182 | -624.4 | 999999 | |
| 1.08 | -1.00 | 0.93 | -1.00 | 16.56 | 26.21 | -55.38 | 74.41 | 0.8211 | -312.2 | 999999 | |
| 19.75 | 42.48 | 17.63 | 38.07 | 16.72 | 24.88 | -56.71 | 74.31 | 0.8337 | -634.1 | -48.7 | |
| 0.00 | 1.08 | 0.00 | 0.96 | 15.58 | 25.03 | -56.55 | 75.67 | 0.8317 | -431.0 | -368.4 | |
| 0.00 | 0.81 | 0.00 | 0.73 | 15.85 | 24.57 | -57.02 | 75.37 | 0.8361 | -135.0 | -138.0 | |
| 0.00 | 1.26 | 0.00 | 1.14 | 16.16 | 24.20 | -57.39 | 75.02 | 0.8396 | 172.0 | 217.4 | |
| 0.00 | 1.35 | 0.00 | 1.26 | 17.17 | 23.30 | -58.29 | 73.87 | 0.8482 | -244.0 | -134.9 | |
| 0.00 | 1.44 | 0.00 | 1.33 | 16.14 | 23.67 | -57.92 | 75.07 | 0.8444 | -369.0 | -159.7 | |
| 0.00 | 0.99 | 0.00 | 0.93 | 16.08 | 23.03 | -58.55 | 75.17 | 0.8501 | 241.0 | 243.5 | |
| 2.16 | 4.15 | 2.05 | 3.93 | 15.65 | 22.56 | -59.03 | 75.69 | 0.8541 | 657.5 | 478.6 | |
| 0.00 | 0.54 | 0.00 | 0.52 | 15.99 | 21.83 | -59.75 | 75.32 | 0.8605 | 578.0 | 476.2 | |
| 0.00 | 6.22 | 0.00 | 5.96 | 15.20 | 22.08 | -59.50 | 76.23 | 0.8581 | 641.0 | 519.5 | |
| 0.00 | 1.89 | 0.00 | 1.82 | 15.50 | 21.94 | -59.64 | 75.89 | 0.8594 | 322.0 | 255.0 | |
| 0.00 | 1.17 | 0.00 | 1.15 | 16.41 | 21.36 | -60.22 | 74.84 | 0.8646 | 528.0 | 441.8 | |
| 0.00 | 2.80 | 0.00 | 2.75 | 16.15 | 21.24 | -60.34 | 75.15 | 0.8655 | 517.0 | 425.0 | |
| 0.00 | 1.80 | 0.00 | 1.83 | 16.40 | 20.26 | -61.33 | 74.90 | 0.8737 | 504.0 | 430.4 | |
| 15.96 | 48.61 | 16.06 | 48.66 | 15.38 | 20.39 | -61.19 | 76.07 | 0.8725 | 664.2 | 471.8 | |
| 3.79 | 12.17 | 3.88 | 12.54 | 16.14 | 19.86 | -61.72 | 75.20 | 0.8769 | 628.0 | 358.6 | |
| 2.07 | 6.67 | 2.14 | 6.91 | 16.37 | 19.61 | -61.98 | 74.95 | 0.8790 | 486.8 | 272.8 | |
| 0.81 | -23.00 | 0.85 | -23.00 | 16.36 | 19.26 | -62.32 | 74.96 | 0.8817 | 149.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
