SDO HMI 2014-08-15 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.49 | 236.72 | 33.89 | 192.29 | 15.20 | 133.81 | 52.78 | 284.08 | 0.7943 | -895.2 | -253.1 | |
|
previous
or next observation for the same group /

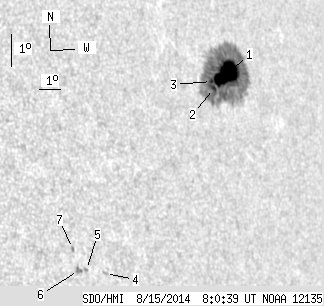

back to the solar disc SDO HMI 2014-08-15 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.98 | 228.16 | 29.46 | 186.33 | 15.40 | 134.17 | 53.14 | 284.32 | 0.7983 | -1076.9 | -285.4 | |
| 2.53 | -1.00 | 2.03 | -1.00 | 15.01 | 133.35 | 52.32 | 283.88 | 0.7896 | -1071.2 | 999999 | |
| 2.98 | -1.00 | 2.40 | -1.00 | 15.23 | 133.33 | 52.29 | 284.16 | 0.7895 | -1049.4 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.27 | 9.87 | 126.87 | 45.83 | 277.32 | 0.7148 | 574.0 | 459.2 | |
| 0.00 | 1.53 | 0.00 | 1.07 | 10.06 | 126.06 | 45.03 | 277.60 | 0.7050 | 520.0 | 484.4 | |
| 0.00 | 3.43 | 0.00 | 2.37 | 10.05 | 125.71 | 44.68 | 277.60 | 0.7007 | 833.0 | 714.8 | |
| 0.00 | 1.80 | 0.00 | 1.25 | 10.74 | 125.58 | 44.54 | 278.59 | 0.6992 | 572.0 | 495.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
