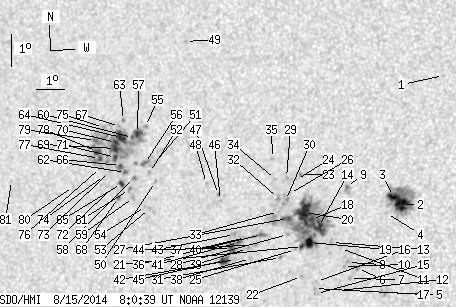

SDO HMI 2014-08-15 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.72 | 475.70 | 67.57 | 265.14 | 13.93 | 54.64 | -26.40 | 72.09 | 0.4543 | -119.4 | 62.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.63 | 17.89 | 61.11 | -19.92 | 58.13 | 0.3835 | -697.0 | -518.1 | |
| 14.34 | 67.19 | 7.65 | 35.87 | 13.88 | 60.12 | -20.92 | 68.97 | 0.3730 | -1356.4 | -527.0 | |
| 6.94 | -2.00 | 3.71 | -2.00 | 14.11 | 59.83 | -21.21 | 68.59 | 0.3785 | -1068.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 13.58 | 59.64 | -21.39 | 70.07 | 0.3788 | -546.0 | -495.6 | |
| 0.00 | 4.15 | 0.00 | 2.21 | 11.17 | 59.75 | -21.29 | 76.33 | 0.3682 | -820.0 | -785.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 11.87 | 58.82 | -22.21 | 74.96 | 0.3847 | -991.0 | -806.5 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 11.55 | 58.58 | -22.46 | 75.88 | 0.3875 | -852.0 | -724.4 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 12.04 | 58.47 | -22.56 | 74.71 | 0.3907 | -846.0 | -693.9 | |
| 0.36 | 4.60 | 0.20 | 2.49 | 14.35 | 58.21 | -22.82 | 69.18 | 0.4037 | -795.5 | -770.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 11.91 | 58.35 | -22.69 | 75.09 | 0.3922 | -974.0 | -828.0 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 12.45 | 58.20 | -22.84 | 73.81 | 0.3963 | -774.0 | -542.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 11.17 | 58.24 | -22.79 | 77.00 | 0.3917 | -725.0 | -583.7 | |
| 0.00 | 2.53 | 0.00 | 1.37 | 12.62 | 57.88 | -23.16 | 73.56 | 0.4018 | -882.0 | -782.6 | |
| 12.90 | 146.91 | 7.00 | 80.05 | 13.09 | 57.39 | -23.65 | 72.70 | 0.4109 | -1151.8 | -323.1 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 11.05 | 57.51 | -23.53 | 77.59 | 0.4028 | -740.0 | -577.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 11.41 | 57.48 | -23.56 | 76.71 | 0.4042 | -804.0 | -617.6 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 11.20 | 57.43 | -23.61 | 77.26 | 0.4044 | -736.0 | -592.2 | |
| 3.79 | -14.00 | 2.06 | -14.00 | 13.29 | 57.13 | -23.91 | 72.36 | 0.4156 | -1159.7 | 999999 | |
| 6.31 | -14.00 | 3.43 | -14.00 | 12.59 | 57.14 | -23.90 | 74.02 | 0.4131 | -908.3 | 999999 | |
| 22.00 | -14.00 | 12.00 | -14.00 | 13.50 | 56.87 | -24.17 | 72.03 | 0.4202 | -1004.4 | 999999 | |
| 1.71 | -14.00 | 0.93 | -14.00 | 12.46 | 56.91 | -24.13 | 74.45 | 0.4161 | -724.9 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 11.54 | 56.96 | -24.08 | 76.60 | 0.4126 | -815.0 | -694.6 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 14.65 | 56.61 | -24.43 | 69.54 | 0.4289 | -862.0 | -741.2 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 14.49 | 56.49 | -24.55 | 69.97 | 0.4300 | -717.0 | -600.7 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 12.36 | 56.68 | -24.36 | 74.79 | 0.4192 | -495.0 | -338.2 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 14.05 | 56.30 | -24.74 | 71.07 | 0.4310 | -791.0 | -626.0 | |
| 3.25 | -14.00 | 1.78 | -14.00 | 13.29 | 56.31 | -24.73 | 72.81 | 0.4279 | -501.6 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 12.80 | 56.36 | -24.68 | 73.90 | 0.4255 | -6.0 | 23.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 14.54 | 56.13 | -24.90 | 70.08 | 0.4353 | -733.0 | -703.5 | |
| 0.00 | 5.05 | 0.00 | 2.77 | 13.83 | 56.18 | -24.86 | 71.63 | 0.4318 | -911.0 | -779.3 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 12.09 | 56.19 | -24.84 | 75.62 | 0.4259 | -608.0 | -517.4 | |
| 0.00 | 3.34 | 0.00 | 1.84 | 13.88 | 55.93 | -25.10 | 71.65 | 0.4357 | -693.0 | -548.1 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 13.49 | 55.98 | -25.06 | 72.52 | 0.4336 | -641.0 | -484.9 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 14.46 | 55.76 | -25.28 | 70.47 | 0.4405 | -549.0 | -472.3 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 15.10 | 55.58 | -25.46 | 69.18 | 0.4458 | -702.0 | -575.8 | |
| 1.35 | 7.30 | 0.75 | 4.02 | 12.76 | 55.47 | -25.57 | 74.40 | 0.4388 | 1032.7 | 745.4 | |
| 0.00 | 2.34 | 0.00 | 1.29 | 12.45 | 55.33 | -25.71 | 75.16 | 0.4400 | 910.0 | 730.1 | |
| 0.00 | 2.43 | 0.00 | 1.34 | 12.01 | 55.17 | -25.87 | 76.20 | 0.4412 | 239.0 | 218.9 | |
| 0.00 | 2.34 | 0.00 | 1.30 | 12.31 | 55.04 | -26.00 | 75.59 | 0.4441 | 774.0 | 661.0 | |
| 0.00 | 1.80 | 0.00 | 1.00 | 12.64 | 54.93 | -26.11 | 74.89 | 0.4466 | 900.0 | 733.9 | |
| 1.35 | 10.73 | 0.75 | 5.95 | 12.48 | 54.71 | -26.33 | 75.34 | 0.4495 | 1072.4 | 824.2 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 11.95 | 54.66 | -26.38 | 76.51 | 0.4489 | 912.0 | 684.5 | |
| 0.00 | 2.89 | 0.00 | 1.60 | 12.71 | 54.54 | -26.50 | 74.89 | 0.4527 | 1036.0 | 714.2 | |
| 4.51 | -41.00 | 2.50 | -41.00 | 12.28 | 54.48 | -26.55 | 75.85 | 0.4523 | 1017.4 | 999999 | |
| 4.96 | 7.21 | 2.76 | 4.01 | 11.90 | 54.28 | -26.76 | 76.75 | 0.4545 | 1109.6 | 873.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 13.72 | 53.93 | -27.11 | 72.97 | 0.4648 | -812.0 | -646.2 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 13.90 | 53.84 | -27.20 | 72.64 | 0.4668 | -627.0 | -453.1 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 14.22 | 53.37 | -27.66 | 72.19 | 0.4746 | -670.0 | -530.9 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 18.54 | 51.94 | -29.10 | 64.51 | 0.5129 | 868.0 | 736.2 | |
| 0.00 | 1.62 | 0.00 | 0.93 | 14.18 | 51.56 | -29.48 | 73.02 | 0.5009 | 948.0 | 721.9 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 14.79 | 51.47 | -29.57 | 71.86 | 0.5041 | 863.0 | 775.4 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 14.45 | 51.30 | -29.73 | 72.61 | 0.5053 | 797.0 | 625.1 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 13.35 | 51.46 | -29.58 | 74.70 | 0.5000 | 916.0 | 629.6 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 13.40 | 51.31 | -29.73 | 74.65 | 0.5023 | 696.0 | 601.8 | |
| 0.00 | 2.25 | 0.00 | 1.30 | 15.85 | 50.94 | -30.10 | 70.08 | 0.5152 | 790.0 | 689.8 | |
| 1.62 | 10.55 | 0.93 | 6.07 | 14.71 | 51.08 | -29.96 | 72.18 | 0.5093 | 1015.2 | 799.9 | |
| 4.60 | 118.95 | 2.66 | 69.26 | 15.61 | 50.69 | -30.35 | 70.62 | 0.5179 | 1059.6 | 589.6 | |
| 0.36 | 2.62 | 0.21 | 1.51 | 14.26 | 50.79 | -30.25 | 73.16 | 0.5122 | 1042.5 | 852.3 | |
| 0.00 | 2.25 | 0.00 | 1.30 | 13.65 | 50.84 | -30.20 | 74.32 | 0.5097 | 797.0 | 721.2 | |
| 0.81 | -57.00 | 0.47 | -57.00 | 15.48 | 50.52 | -30.51 | 70.94 | 0.5197 | 1077.3 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.25 | 13.89 | 50.66 | -30.38 | 73.93 | 0.5129 | 989.0 | 861.8 | |
| 0.90 | 7.85 | 0.52 | 4.54 | 14.40 | 50.44 | -30.60 | 73.03 | 0.5175 | 1003.3 | 889.5 | |
| 0.00 | 1.26 | 0.00 | 0.74 | 15.98 | 50.11 | -30.93 | 70.18 | 0.5273 | 697.0 | 562.0 | |
| 7.58 | -57.00 | 4.40 | -57.00 | 15.46 | 50.12 | -30.91 | 71.15 | 0.5253 | 1046.9 | 999999 | |
| 2.16 | 3.61 | 1.25 | 2.09 | 14.05 | 50.34 | -30.69 | 73.72 | 0.5179 | 1004.8 | 850.8 | |
| 1.17 | -62.00 | 0.68 | -62.00 | 14.60 | 50.22 | -30.81 | 72.72 | 0.5212 | 1144.4 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 15.79 | 50.00 | -31.04 | 70.59 | 0.5282 | 592.0 | 470.1 | |
| 0.90 | 2.25 | 0.52 | 1.30 | 13.62 | 50.30 | -30.74 | 74.56 | 0.5174 | 811.2 | 677.9 | |
| 5.68 | -57.00 | 3.31 | -57.00 | 15.11 | 49.96 | -31.08 | 71.87 | 0.5264 | 1180.7 | 999999 | |
| 2.34 | -57.00 | 1.36 | -57.00 | 15.29 | 49.93 | -31.11 | 71.54 | 0.5274 | 1113.8 | 999999 | |
| 2.71 | -57.00 | 1.57 | -57.00 | 14.84 | 50.01 | -31.03 | 72.36 | 0.5250 | 1016.9 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 13.91 | 50.04 | -31.00 | 74.09 | 0.5219 | 679.0 | 582.8 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 14.40 | 49.85 | -31.18 | 73.24 | 0.5258 | 763.0 | 676.1 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 14.26 | 49.69 | -31.35 | 73.55 | 0.5278 | 550.0 | 438.8 | |
| 0.00 | 3.16 | 0.00 | 1.85 | 15.73 | 49.41 | -31.62 | 70.94 | 0.5361 | 59.0 | 99.0 | |
| 0.00 | 2.80 | 0.00 | 1.63 | 14.50 | 49.51 | -31.53 | 73.17 | 0.5310 | 528.0 | 480.7 | |
| 2.07 | -57.00 | 1.21 | -57.00 | 14.77 | 49.43 | -31.61 | 72.69 | 0.5330 | 840.4 | 999999 | |
| 3.61 | -57.00 | 2.11 | -57.00 | 14.98 | 49.32 | -31.72 | 72.35 | 0.5351 | 798.8 | 999999 | |
| 1.44 | -57.00 | 0.85 | -57.00 | 15.31 | 49.19 | -31.85 | 71.79 | 0.5379 | 620.6 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.80 | 13.86 | 48.61 | -32.43 | 74.63 | 0.5421 | 320.0 | 321.3 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 13.90 | 46.27 | -34.77 | 75.19 | 0.5748 | 495.0 | 354.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
