SDO HMI 2014-08-15 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.82 | 209.93 | 60.75 | 191.86 | 16.19 | 23.40 | -57.64 | 74.95 | 0.8410 | -121.2 | 97.8 | |
|
previous
or next observation for the same group /

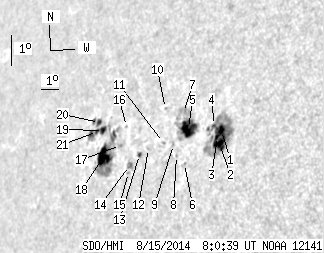

back to the solar disc SDO HMI 2014-08-15 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.21 | 73.50 | 6.92 | 61.98 | 16.81 | 26.72 | -54.32 | 74.02 | 0.8110 | -793.5 | -304.1 | |
| 11.45 | -1.00 | 9.63 | -1.00 | 16.41 | 26.78 | -54.26 | 74.51 | 0.8102 | -853.9 | 999999 | |
| 2.62 | -1.00 | 2.21 | -1.00 | 16.61 | 26.58 | -54.46 | 74.28 | 0.8122 | -637.1 | 999999 | |
| 0.72 | -1.00 | 0.61 | -1.00 | 16.93 | 26.28 | -54.76 | 73.91 | 0.8153 | -394.9 | 999999 | |
| 18.94 | 32.56 | 16.65 | 28.69 | 16.71 | 24.92 | -56.12 | 74.28 | 0.8282 | -637.3 | -134.4 | |
| 0.00 | 0.72 | 0.00 | 0.63 | 15.64 | 25.15 | -55.89 | 75.57 | 0.8254 | -518.0 | -449.6 | |
| 0.00 | 9.74 | 0.00 | 8.67 | 17.17 | 24.42 | -56.62 | 73.77 | 0.8331 | 7.0 | 96.6 | |
| 0.00 | 0.90 | 0.00 | 0.80 | 15.84 | 24.61 | -56.43 | 75.36 | 0.8306 | -306.0 | -228.7 | |
| 0.00 | 1.80 | 0.00 | 1.61 | 16.15 | 24.30 | -56.74 | 74.99 | 0.8337 | 19.0 | 92.3 | |
| 0.00 | 0.72 | 0.00 | 0.66 | 17.19 | 23.34 | -57.69 | 73.81 | 0.8429 | -364.0 | -304.6 | |
| 0.00 | 1.26 | 0.00 | 1.14 | 16.16 | 23.71 | -57.33 | 75.02 | 0.8391 | -444.0 | -275.2 | |
| 0.00 | 1.08 | 0.00 | 1.00 | 15.90 | 22.94 | -58.10 | 75.36 | 0.8460 | 401.0 | 387.6 | |
| 1.08 | 2.43 | 1.01 | 2.27 | 15.67 | 22.50 | -58.54 | 75.65 | 0.8498 | 712.0 | 562.8 | |
| 0.00 | 3.79 | 0.00 | 3.58 | 15.28 | 22.06 | -58.98 | 76.12 | 0.8536 | 617.0 | 553.5 | |
| 0.00 | 1.35 | 0.00 | 1.28 | 15.07 | 22.10 | -58.94 | 76.37 | 0.8532 | 601.0 | 507.9 | |
| 0.00 | 0.90 | 0.00 | 0.87 | 16.43 | 21.32 | -59.72 | 74.81 | 0.8603 | 522.0 | 471.6 | |
| 0.00 | 1.71 | 0.00 | 1.66 | 15.83 | 21.24 | -59.80 | 75.51 | 0.8608 | 622.0 | 464.5 | |
| 16.95 | 77.47 | 16.80 | 77.02 | 15.40 | 20.36 | -60.68 | 76.03 | 0.8682 | 675.9 | 421.8 | |
| 3.34 | -18.00 | 3.35 | -18.00 | 16.17 | 19.97 | -61.07 | 75.15 | 0.8716 | 657.4 | 999999 | |
| 2.34 | -18.00 | 2.38 | -18.00 | 16.38 | 19.59 | -61.45 | 74.92 | 0.8747 | 502.2 | 999999 | |
| 1.17 | -18.00 | 1.19 | -18.00 | 16.10 | 19.61 | -61.43 | 75.24 | 0.8745 | 543.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
