SDO HMI 2014-08-15 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.29 | 485.81 | 64.89 | 269.60 | 13.91 | 54.55 | -25.94 | 71.92 | 0.4474 | -78.6 | 31.7 | |
|
previous
or next observation for the same group /

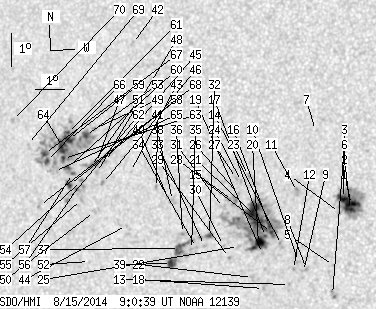

back to the solar disc SDO HMI 2014-08-15 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.10 | 60.87 | 5.37 | 32.38 | 13.93 | 60.14 | -20.35 | 68.38 | 0.3647 | -1341.3 | -556.7 | |
| 3.79 | -1.00 | 2.01 | -1.00 | 13.78 | 60.12 | -20.37 | 68.80 | 0.3642 | -1314.6 | 999999 | |
| 6.58 | -1.00 | 3.51 | -1.00 | 14.10 | 59.85 | -20.64 | 68.16 | 0.3698 | -1092.1 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 13.67 | 59.76 | -20.73 | 69.35 | 0.3691 | -596.0 | -463.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 12.05 | 59.70 | -20.79 | 73.70 | 0.3632 | -866.0 | -693.3 | |
| 0.00 | 3.07 | 0.00 | 1.63 | 11.16 | 59.73 | -20.76 | 76.09 | 0.3597 | -631.0 | -758.1 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 16.15 | 58.70 | -21.79 | 64.11 | 0.3981 | -589.0 | -561.0 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 11.92 | 58.81 | -21.68 | 74.55 | 0.3766 | -942.0 | -822.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 11.83 | 58.72 | -21.77 | 74.84 | 0.3777 | -639.0 | -569.2 | |
| 0.00 | 2.16 | 0.00 | 1.16 | 12.12 | 58.53 | -21.96 | 74.18 | 0.3817 | -472.0 | -548.5 | |
| 0.00 | 3.25 | 0.00 | 1.75 | 14.26 | 58.29 | -22.20 | 68.97 | 0.3940 | -985.0 | -862.0 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 11.87 | 58.38 | -22.11 | 74.90 | 0.3832 | -1044.0 | -871.3 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 11.41 | 58.28 | -22.21 | 76.13 | 0.3832 | -776.0 | -664.6 | |
| 0.00 | 2.98 | 0.00 | 1.60 | 12.62 | 57.91 | -22.58 | 73.26 | 0.3929 | -669.0 | -803.2 | |
| 1.44 | 153.48 | 0.78 | 83.27 | 12.97 | 57.54 | -22.95 | 72.61 | 0.3999 | -1204.7 | -394.9 | |
| 2.62 | -15.00 | 1.41 | -15.00 | 13.18 | 57.45 | -23.04 | 72.14 | 0.4020 | -1269.0 | 999999 | |
| 0.72 | -15.00 | 0.39 | -15.00 | 12.84 | 57.35 | -23.14 | 73.03 | 0.4023 | -809.1 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 11.25 | 57.42 | -23.07 | 76.91 | 0.3962 | -651.0 | -564.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 12.32 | 57.30 | -23.19 | 74.33 | 0.4013 | -706.0 | -569.3 | |
| 9.92 | -15.00 | 5.37 | -15.00 | 12.61 | 57.13 | -23.36 | 73.69 | 0.4048 | -845.0 | 999999 | |
| 29.76 | -15.00 | 16.15 | -15.00 | 13.43 | 56.95 | -23.54 | 71.83 | 0.4106 | -1033.8 | 999999 | |
| 0.00 | 3.25 | 0.00 | 1.76 | 11.57 | 57.02 | -23.47 | 76.29 | 0.4032 | -845.0 | -636.0 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 14.67 | 56.57 | -23.92 | 69.16 | 0.4214 | -798.0 | -656.5 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 14.48 | 56.36 | -24.13 | 69.74 | 0.4238 | -783.0 | -680.9 | |
| 0.00 | 1.89 | 0.00 | 1.03 | 12.49 | 56.46 | -24.03 | 74.31 | 0.4146 | 188.0 | 178.3 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 14.11 | 56.29 | -24.20 | 70.63 | 0.4231 | -733.0 | -571.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 14.56 | 56.17 | -24.32 | 69.67 | 0.4268 | -691.0 | -628.2 | |
| 0.00 | 8.30 | 0.00 | 4.54 | 13.89 | 56.11 | -24.38 | 71.25 | 0.4249 | -574.0 | -696.0 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 12.14 | 56.19 | -24.30 | 75.26 | 0.4177 | -648.0 | -553.1 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 12.50 | 55.95 | -24.54 | 74.53 | 0.4225 | 734.0 | 537.8 | |
| 0.00 | 3.97 | 0.00 | 2.17 | 13.66 | 55.83 | -24.66 | 71.92 | 0.4283 | -412.0 | -399.1 | |
| 1.80 | 6.49 | 0.99 | 3.56 | 12.78 | 55.44 | -25.05 | 74.12 | 0.4311 | 1018.2 | 780.1 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 12.47 | 55.30 | -25.19 | 74.89 | 0.4322 | 840.0 | 616.3 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 12.40 | 55.03 | -25.46 | 75.17 | 0.4361 | 777.0 | 620.6 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 12.33 | 54.87 | -25.62 | 75.39 | 0.4384 | 916.0 | 814.0 | |
| 0.00 | 2.16 | 0.00 | 1.20 | 12.80 | 54.51 | -25.98 | 74.49 | 0.4452 | 969.0 | 790.3 | |
| 7.30 | 25.34 | 4.04 | 14.00 | 12.34 | 54.45 | -26.04 | 75.53 | 0.4447 | 995.4 | 773.7 | |
| 0.00 | 4.60 | 0.00 | 2.56 | 13.79 | 54.05 | -26.44 | 72.53 | 0.4553 | -727.0 | -564.4 | |
| 5.68 | -37.00 | 3.14 | -37.00 | 11.87 | 54.22 | -26.27 | 76.66 | 0.4469 | 1075.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 13.90 | 53.86 | -26.63 | 72.38 | 0.4584 | -639.0 | -493.3 | |
| 0.00 | 1.89 | 0.00 | 1.06 | 14.16 | 53.44 | -27.05 | 72.04 | 0.4655 | -567.0 | -515.3 | |
| 0.00 | 2.25 | 0.00 | 1.29 | 18.53 | 51.90 | -28.59 | 64.20 | 0.5059 | 691.0 | 576.2 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 14.60 | 52.46 | -28.03 | 71.58 | 0.4813 | 756.0 | 724.8 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 12.94 | 52.53 | -27.96 | 74.95 | 0.4751 | -596.0 | -465.8 | |
| 0.00 | 3.16 | 0.00 | 1.80 | 14.85 | 51.46 | -29.03 | 71.52 | 0.4966 | 923.0 | 699.7 | |
| 0.00 | 1.98 | 0.00 | 1.13 | 14.18 | 51.52 | -28.97 | 72.83 | 0.4935 | 862.0 | 703.9 | |
| 0.90 | 8.57 | 0.52 | 4.90 | 14.81 | 51.21 | -29.28 | 71.71 | 0.5000 | 1022.8 | 823.8 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 14.50 | 51.26 | -29.23 | 72.29 | 0.4983 | 848.0 | 736.2 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 15.85 | 50.98 | -29.51 | 69.80 | 0.5069 | 769.0 | 743.6 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 13.31 | 51.35 | -29.14 | 74.63 | 0.4935 | 623.0 | 524.7 | |
| 0.63 | -47.00 | 0.36 | -47.00 | 14.68 | 51.01 | -29.48 | 72.05 | 0.5023 | 1032.0 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 11.78 | 51.36 | -29.13 | 77.71 | 0.4897 | 624.0 | 416.9 | |
| 3.34 | 121.74 | 1.92 | 70.47 | 15.61 | 50.69 | -29.80 | 70.38 | 0.5102 | 1056.1 | 580.5 | |
| 0.36 | 1.80 | 0.21 | 1.03 | 14.23 | 50.75 | -29.74 | 73.03 | 0.5047 | 1036.0 | 859.5 | |
| 0.00 | 2.71 | 0.00 | 1.55 | 13.65 | 50.84 | -29.65 | 74.13 | 0.5018 | 805.0 | 636.9 | |
| 0.72 | 5.23 | 0.41 | 3.00 | 13.95 | 50.61 | -29.88 | 73.63 | 0.5059 | 1023.1 | 682.7 | |
| 0.99 | 8.30 | 0.57 | 4.78 | 14.43 | 50.40 | -30.09 | 72.78 | 0.5104 | 983.9 | 820.5 | |
| 2.52 | 4.51 | 1.45 | 2.59 | 14.08 | 50.34 | -30.15 | 73.46 | 0.5102 | 966.6 | 760.8 | |
| 6.40 | -53.00 | 3.70 | -53.00 | 15.46 | 50.09 | -30.40 | 70.94 | 0.5180 | 1058.7 | 999999 | |
| 2.16 | -57.00 | 1.25 | -57.00 | 14.60 | 50.19 | -30.30 | 72.53 | 0.5139 | 1071.4 | 999999 | |
| 1.71 | -53.00 | 0.99 | -53.00 | 15.67 | 50.02 | -30.47 | 70.57 | 0.5197 | 769.4 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.14 | 13.59 | 50.34 | -30.15 | 74.42 | 0.5089 | 852.0 | 747.5 | |
| 1.80 | -53.00 | 1.04 | -53.00 | 14.87 | 50.00 | -30.49 | 72.09 | 0.5173 | 1108.8 | 999999 | |
| 10.64 | -53.00 | 6.16 | -53.00 | 15.23 | 49.91 | -30.58 | 71.44 | 0.5198 | 1053.2 | 999999 | |
| 0.00 | 5.05 | 0.00 | 2.93 | 14.45 | 49.74 | -30.75 | 72.98 | 0.5198 | 297.0 | 556.9 | |
| 2.34 | -53.00 | 1.36 | -53.00 | 14.74 | 49.40 | -31.09 | 72.56 | 0.5255 | 834.8 | 999999 | |
| 3.07 | -53.00 | 1.79 | -53.00 | 14.98 | 49.29 | -31.20 | 72.15 | 0.5278 | 797.6 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.05 | 13.38 | 49.35 | -31.14 | 75.13 | 0.5226 | 544.0 | 433.3 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 15.22 | 48.62 | -31.87 | 71.96 | 0.5379 | 474.0 | 397.8 | |
| 0.00 | 2.43 | 0.00 | 1.44 | 15.92 | 47.94 | -32.55 | 70.95 | 0.5495 | 647.0 | 480.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
