SDO HMI 2014-08-15 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.98 | 49.40 | 8.43 | 29.72 | -17.63 | 105.28 | 24.79 | 224.87 | 0.5685 | 384.0 | 417.6 | |
|
previous
or next observation for the same group /

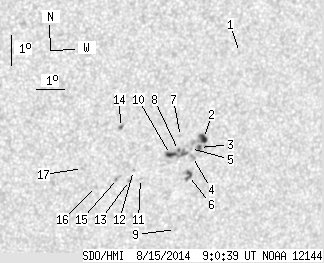

back to the solar disc SDO HMI 2014-08-15 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.70 | -14.38 | 107.09 | 26.60 | 231.34 | 0.5575 | 579.0 | 434.6 | |
| 4.69 | 10.37 | 2.83 | 6.25 | -17.15 | 106.20 | 25.71 | 226.57 | 0.5731 | 909.4 | 747.3 | |
| 1.53 | 3.16 | 0.93 | 1.91 | -17.44 | 106.11 | 25.62 | 226.07 | 0.5748 | 896.9 | 684.6 | |
| 0.00 | 2.62 | 0.00 | 1.58 | -17.73 | 105.90 | 25.41 | 225.47 | 0.5755 | 726.0 | 561.2 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -17.46 | 105.79 | 25.30 | 225.70 | 0.5718 | 782.0 | 730.1 | |
| 2.98 | 6.49 | 1.81 | 3.94 | -18.36 | 105.86 | 25.37 | 224.61 | 0.5811 | 807.5 | 643.2 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -17.04 | 105.38 | 24.89 | 225.79 | 0.5635 | 745.0 | 683.0 | |
| 0.54 | 13.44 | 0.33 | 8.08 | -17.50 | 105.38 | 24.89 | 225.18 | 0.5680 | 1062.5 | 775.8 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -20.17 | 105.69 | 25.20 | 222.20 | 0.5972 | 569.0 | 309.1 | |
| 3.52 | -8.00 | 2.11 | -8.00 | -17.62 | 105.11 | 24.62 | 224.72 | 0.5665 | 967.8 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -18.37 | 104.17 | 23.68 | 222.66 | 0.5646 | -249.0 | -294.1 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -18.09 | 103.88 | 23.39 | 222.67 | 0.5590 | -645.0 | -519.5 | |
| 0.00 | 1.35 | 0.00 | 0.81 | -18.42 | 103.79 | 23.30 | 222.14 | 0.5615 | -259.0 | -279.5 | |
| 0.72 | 1.80 | 0.42 | 1.06 | -16.63 | 103.24 | 22.75 | 223.79 | 0.5376 | -829.4 | -720.8 | |
| 0.00 | 2.43 | 0.00 | 1.45 | -18.33 | 103.36 | 22.87 | 221.73 | 0.5564 | -776.0 | -548.4 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -18.57 | 102.67 | 22.18 | 220.57 | 0.5522 | 367.0 | 316.6 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -17.94 | 102.10 | 21.61 | 220.63 | 0.5401 | -757.0 | -564.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
