SDO HMI 2014-08-15 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.69 | 211.16 | 61.23 | 186.79 | 16.19 | 23.59 | -56.35 | 74.88 | 0.8291 | -81.1 | 45.7 | |
|
previous
or next observation for the same group /

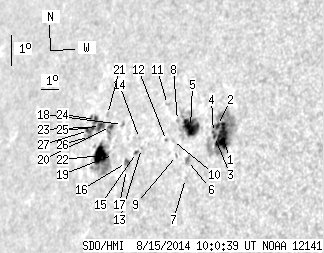

back to the solar disc SDO HMI 2014-08-15 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.48 | 82.33 | 15.96 | 67.61 | 16.55 | 26.82 | -53.12 | 74.25 | 0.7989 | -832.6 | -277.6 | |
| 1.71 | -1.00 | 1.42 | -1.00 | 16.85 | 26.43 | -53.51 | 73.90 | 0.8031 | -479.4 | 999999 | |
| 0.99 | -1.00 | 0.82 | -1.00 | 16.51 | 26.41 | -53.53 | 74.33 | 0.8030 | -299.4 | 999999 | |
| 0.27 | -1.00 | 0.22 | -1.00 | 16.62 | 26.31 | -53.63 | 74.19 | 0.8041 | -306.3 | 999999 | |
| 17.22 | 33.90 | 14.70 | 29.03 | 16.67 | 25.03 | -54.91 | 74.25 | 0.8166 | -667.5 | -137.6 | |
| 0.00 | 3.79 | 0.00 | 3.21 | 15.66 | 25.28 | -54.66 | 75.47 | 0.8136 | -557.0 | -437.1 | |
| 0.00 | 0.63 | 0.00 | 0.53 | 15.10 | 25.39 | -54.56 | 76.14 | 0.8123 | -416.0 | -369.6 | |
| 0.00 | 1.08 | 0.00 | 0.94 | 16.81 | 24.24 | -55.70 | 74.13 | 0.8243 | -145.0 | -47.7 | |
| 0.00 | 1.08 | 0.00 | 0.93 | 15.75 | 24.63 | -55.31 | 75.39 | 0.8199 | -155.0 | -128.2 | |
| 0.00 | 1.08 | 0.00 | 0.94 | 16.18 | 24.23 | -55.71 | 74.89 | 0.8240 | -18.0 | -72.8 | |
| 0.00 | 1.08 | 0.00 | 0.96 | 17.24 | 23.47 | -56.47 | 73.66 | 0.8318 | -407.0 | -235.9 | |
| 0.00 | 1.17 | 0.00 | 1.03 | 16.15 | 23.90 | -56.04 | 74.95 | 0.8271 | -172.0 | -180.8 | |
| 0.00 | 1.08 | 0.00 | 0.98 | 15.78 | 22.62 | -57.32 | 75.46 | 0.8389 | 602.0 | 520.5 | |
| 0.00 | 1.17 | 0.00 | 1.07 | 16.07 | 22.37 | -57.57 | 75.13 | 0.8413 | 360.0 | 298.5 | |
| 0.72 | 2.16 | 0.66 | 1.97 | 15.64 | 22.39 | -57.55 | 75.65 | 0.8409 | 525.1 | 519.3 | |
| 0.00 | 3.52 | 0.00 | 3.23 | 15.28 | 21.95 | -57.99 | 76.09 | 0.8448 | 585.0 | 529.4 | |
| 0.00 | 0.27 | 0.00 | 0.25 | 15.07 | 22.04 | -57.90 | 76.33 | 0.8439 | 663.0 | 607.7 | |
| 0.00 | 1.98 | 0.00 | 1.86 | 16.40 | 21.19 | -58.75 | 74.80 | 0.8519 | 588.0 | 440.3 | |
| 0.00 | 0.81 | 0.00 | 0.76 | 15.45 | 21.08 | -58.86 | 75.92 | 0.8526 | 468.0 | 469.1 | |
| 1.62 | 8.21 | 1.55 | 7.85 | 16.27 | 20.51 | -59.43 | 74.98 | 0.8578 | 729.1 | 580.6 | |
| 0.00 | 1.53 | 0.00 | 1.48 | 16.61 | 20.15 | -59.80 | 74.60 | 0.8610 | 492.0 | 404.4 | |
| 16.32 | 43.46 | 15.71 | 41.66 | 15.34 | 20.33 | -59.62 | 76.07 | 0.8591 | 611.4 | 439.4 | |
| 3.61 | 20.83 | 3.51 | 20.50 | 16.21 | 19.90 | -60.04 | 75.07 | 0.8630 | 654.1 | 329.4 | |
| 2.43 | -23.00 | 2.40 | -23.00 | 16.39 | 19.49 | -60.45 | 74.88 | 0.8665 | 486.0 | 999999 | |
| 1.53 | -23.00 | 1.51 | -23.00 | 16.10 | 19.44 | -60.50 | 75.21 | 0.8668 | 527.7 | 999999 | |
| 0.72 | -23.00 | 0.71 | -23.00 | 15.85 | 19.38 | -60.56 | 75.51 | 0.8673 | 360.6 | 999999 | |
| 2.07 | -23.00 | 2.06 | -23.00 | 16.02 | 19.23 | -60.71 | 75.32 | 0.8686 | 356.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
