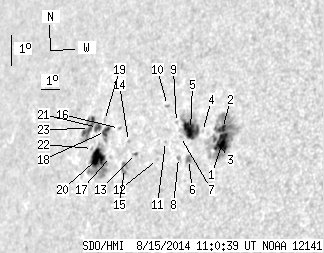

SDO HMI 2014-08-15 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.85 | 222.59 | 65.27 | 194.88 | 16.15 | 23.48 | -55.91 | 74.90 | 0.8249 | -47.3 | 31.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.59 | 82.77 | 13.41 | 67.10 | 16.44 | 26.89 | -52.50 | 74.32 | 0.7925 | -847.3 | -256.9 | |
| 3.88 | -1.00 | 3.15 | -1.00 | 16.86 | 26.73 | -52.66 | 73.81 | 0.7946 | -704.6 | 999999 | |
| 0.90 | -1.00 | 0.74 | -1.00 | 16.50 | 26.50 | -52.89 | 74.28 | 0.7965 | -355.6 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.37 | 16.68 | 25.74 | -53.65 | 74.13 | 0.8044 | -441.0 | -362.6 | |
| 18.12 | 34.80 | 15.25 | 29.35 | 16.68 | 25.08 | -54.31 | 74.18 | 0.8108 | -634.5 | -186.8 | |
| 0.90 | 4.24 | 0.75 | 3.54 | 15.77 | 25.34 | -54.05 | 75.29 | 0.8076 | -597.4 | -455.5 | |
| 0.00 | 1.17 | 0.00 | 1.00 | 16.42 | 24.64 | -54.75 | 74.53 | 0.8149 | 107.0 | 112.8 | |
| 0.00 | 1.80 | 0.00 | 1.53 | 15.78 | 24.80 | -54.60 | 75.31 | 0.8131 | -200.0 | -229.4 | |
| 0.00 | 0.90 | 0.00 | 0.77 | 16.83 | 24.25 | -55.14 | 74.07 | 0.8190 | -167.0 | -91.3 | |
| 0.00 | 1.62 | 0.00 | 1.42 | 17.29 | 23.53 | -55.86 | 73.55 | 0.8261 | -458.0 | -257.8 | |
| 0.00 | 0.90 | 0.00 | 0.78 | 16.20 | 23.90 | -55.49 | 74.86 | 0.8219 | -373.0 | -275.5 | |
| 0.00 | 0.99 | 0.00 | 0.86 | 15.62 | 23.69 | -55.70 | 75.58 | 0.8236 | 241.0 | 207.0 | |
| 0.36 | 1.80 | 0.32 | 1.62 | 15.68 | 22.41 | -56.99 | 75.56 | 0.8357 | 622.8 | 612.8 | |
| 0.00 | 1.08 | 0.00 | 0.98 | 16.01 | 21.85 | -57.54 | 75.21 | 0.8410 | 748.0 | 610.8 | |
| 0.00 | 6.76 | 0.00 | 6.13 | 15.18 | 21.98 | -57.41 | 76.19 | 0.8395 | 604.0 | 530.8 | |
| 0.00 | 0.99 | 0.00 | 0.92 | 16.35 | 21.16 | -58.24 | 74.83 | 0.8474 | 454.0 | 397.2 | |
| 0.00 | 1.17 | 0.00 | 1.09 | 15.46 | 21.02 | -58.37 | 75.89 | 0.8483 | 503.0 | 401.6 | |
| 4.24 | 8.84 | 4.01 | 8.35 | 16.18 | 20.38 | -59.01 | 75.07 | 0.8542 | 719.0 | 548.1 | |
| 0.00 | 1.17 | 0.00 | 1.12 | 16.50 | 20.16 | -59.23 | 74.70 | 0.8562 | 489.0 | 446.2 | |
| 16.68 | 44.09 | 15.82 | 41.68 | 15.33 | 20.29 | -59.11 | 76.07 | 0.8547 | 597.9 | 403.8 | |
| 3.25 | 25.34 | 3.12 | 24.63 | 16.25 | 19.84 | -59.55 | 75.00 | 0.8588 | 623.2 | 223.8 | |
| 0.00 | 1.71 | 0.00 | 1.64 | 15.60 | 19.85 | -59.54 | 75.77 | 0.8586 | 68.0 | 12.6 | |
| 8.93 | -21.00 | 8.70 | -21.00 | 16.18 | 19.38 | -60.02 | 75.11 | 0.8628 | 406.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
