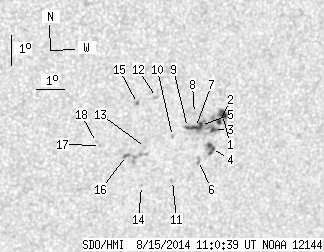

SDO HMI 2014-08-15 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.10 | 76.53 | 12.24 | 46.50 | -17.74 | 105.23 | 25.84 | 225.90 | 0.5801 | 334.2 | 276.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.87 | 43.37 | 2.97 | 26.42 | -17.15 | 106.31 | 26.92 | 227.85 | 0.5856 | 899.1 | 644.1 | |
| 1.80 | -1.00 | 1.10 | -1.00 | -17.38 | 106.24 | 26.85 | 227.48 | 0.5870 | 925.0 | 999999 | |
| 1.80 | -1.00 | 1.10 | -1.00 | -17.64 | 106.07 | 26.67 | 226.96 | 0.5875 | 848.0 | 999999 | |
| 4.33 | 8.11 | 2.66 | 4.98 | -18.27 | 106.10 | 26.71 | 226.18 | 0.5937 | 836.9 | 681.4 | |
| 2.34 | -1.00 | 1.42 | -1.00 | -17.48 | 105.58 | 26.19 | 226.65 | 0.5810 | 910.7 | 999999 | |
| 0.00 | 2.89 | 0.00 | 1.77 | -18.65 | 105.70 | 26.30 | 225.27 | 0.5932 | 506.0 | 588.2 | |
| 2.89 | -1.00 | 1.75 | -1.00 | -17.53 | 105.41 | 26.02 | 226.40 | 0.5798 | 943.7 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -17.06 | 105.30 | 25.91 | 226.90 | 0.5743 | 900.0 | 806.1 | |
| 1.08 | -1.00 | 0.65 | -1.00 | -17.52 | 105.12 | 25.73 | 226.10 | 0.5767 | 1003.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -17.79 | 104.63 | 25.24 | 225.21 | 0.5743 | -280.0 | -247.8 | |
| 0.00 | 2.16 | 0.00 | 1.33 | -19.27 | 104.87 | 25.48 | 223.59 | 0.5911 | -662.0 | -497.3 | |
| 0.00 | 2.07 | 0.00 | 1.23 | -16.46 | 103.88 | 24.49 | 226.11 | 0.5538 | -673.0 | -556.3 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -18.11 | 103.73 | 24.34 | 223.77 | 0.5684 | -638.0 | -438.7 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -19.39 | 103.79 | 24.39 | 222.24 | 0.5818 | 587.0 | 476.5 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -16.62 | 103.25 | 23.85 | 225.14 | 0.5488 | -858.0 | -764.6 | |
| 0.99 | 11.81 | 0.59 | 7.10 | -18.34 | 103.10 | 23.71 | 222.73 | 0.5646 | -636.7 | -387.2 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -17.96 | 102.14 | 22.75 | 222.05 | 0.5513 | -741.0 | -567.9 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -17.85 | 101.99 | 22.60 | 222.00 | 0.5487 | -776.0 | -618.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
