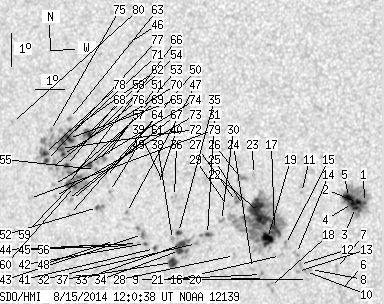

SDO HMI 2014-08-15 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.74 | 518.79 | 62.65 | 283.96 | 13.78 | 54.62 | -24.22 | 71.24 | 0.4215 | -114.8 | 33.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.72 | 60.94 | 0.38 | 32.09 | 13.96 | 60.41 | -18.43 | 66.53 | 0.3359 | -1081.6 | -587.9 | |
| 3.07 | -1.00 | 1.61 | -1.00 | 13.96 | 60.18 | -18.66 | 66.78 | 0.3393 | -1435.5 | 999999 | |
| 2.61 | -1.00 | 1.38 | -1.00 | 13.80 | 60.13 | -18.71 | 67.27 | 0.3392 | -1285.1 | 999999 | |
| 3.34 | -1.00 | 1.76 | -1.00 | 13.92 | 60.02 | -18.82 | 67.04 | 0.3415 | -1268.1 | 999999 | |
| 6.76 | -1.00 | 3.57 | -1.00 | 14.10 | 59.87 | -18.97 | 66.69 | 0.3448 | -1082.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 11.22 | 59.80 | -19.04 | 74.95 | 0.3329 | -811.0 | -659.0 | |
| 0.00 | 2.79 | 0.00 | 1.47 | 11.92 | 59.65 | -19.19 | 73.02 | 0.3378 | -812.0 | -651.5 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 11.86 | 58.80 | -20.04 | 73.76 | 0.3509 | -963.0 | -766.6 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 11.55 | 58.72 | -20.12 | 74.67 | 0.3510 | -873.0 | -683.8 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 11.79 | 58.64 | -20.20 | 74.04 | 0.3531 | -1027.0 | -807.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 14.19 | 58.30 | -20.54 | 67.84 | 0.3689 | -1017.0 | -771.2 | |
| 0.00 | 3.07 | 0.00 | 1.62 | 12.00 | 58.42 | -20.42 | 73.61 | 0.3572 | -997.0 | -741.6 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 11.78 | 58.37 | -20.47 | 74.23 | 0.3572 | -960.0 | -888.1 | |
| 0.00 | 2.88 | 0.00 | 1.53 | 12.33 | 58.30 | -20.54 | 72.79 | 0.3605 | -915.0 | -839.1 | |
| 0.00 | 3.16 | 0.00 | 1.68 | 12.59 | 57.91 | -20.93 | 72.34 | 0.3675 | -925.0 | -772.1 | |
| 0.00 | 2.43 | 0.00 | 1.30 | 12.25 | 57.77 | -21.07 | 73.34 | 0.3683 | -747.0 | -683.1 | |
| 8.11 | 163.89 | 4.33 | 87.87 | 13.03 | 57.50 | -21.34 | 71.45 | 0.3755 | -1226.4 | -352.9 | |
| 0.00 | 4.15 | 0.00 | 2.21 | 11.29 | 57.51 | -21.33 | 76.03 | 0.3691 | -495.0 | -662.7 | |
| 11.63 | -17.00 | 6.22 | -17.00 | 12.75 | 57.29 | -21.55 | 72.32 | 0.3776 | -927.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 11.52 | 57.30 | -21.54 | 75.51 | 0.3732 | -653.0 | -576.4 | |
| 0.00 | 2.16 | 0.00 | 1.16 | 11.64 | 57.19 | -21.65 | 75.26 | 0.3753 | -799.0 | -705.7 | |
| 26.50 | -17.00 | 14.22 | -17.00 | 13.53 | 56.95 | -21.89 | 70.55 | 0.3860 | -1040.3 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 14.68 | 56.64 | -22.21 | 67.95 | 0.3961 | -748.0 | -599.2 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 11.81 | 56.87 | -21.97 | 74.98 | 0.3808 | -619.0 | -548.7 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 13.72 | 56.40 | -22.45 | 70.45 | 0.3953 | -769.0 | -645.7 | |
| 0.00 | 6.22 | 0.00 | 3.36 | 14.54 | 56.24 | -22.60 | 68.57 | 0.4013 | -829.0 | -634.0 | |
| 0.36 | 8.38 | 0.19 | 4.53 | 13.83 | 56.15 | -22.69 | 70.34 | 0.3995 | -844.0 | -673.0 | |
| 0.00 | 2.07 | 0.00 | 1.12 | 12.18 | 56.24 | -22.61 | 74.36 | 0.3918 | -682.0 | -485.7 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 13.70 | 55.86 | -22.99 | 70.86 | 0.4033 | -552.0 | -435.6 | |
| 0.00 | 2.25 | 0.00 | 1.22 | 13.23 | 55.70 | -23.14 | 72.08 | 0.4038 | -419.0 | -319.8 | |
| 1.17 | 5.50 | 0.64 | 2.98 | 12.78 | 55.27 | -23.57 | 73.39 | 0.4087 | 1013.5 | 802.2 | |
| 0.00 | 1.89 | 0.00 | 1.03 | 12.49 | 54.92 | -23.92 | 74.26 | 0.4130 | 896.0 | 708.3 | |
| 4.33 | 19.38 | 2.36 | 10.57 | 12.44 | 54.41 | -24.43 | 74.62 | 0.4206 | 938.6 | 824.8 | |
| 3.79 | -33.00 | 2.07 | -33.00 | 12.25 | 54.36 | -24.48 | 75.08 | 0.4208 | 991.7 | 999999 | |
| 1.71 | 4.24 | 0.94 | 2.32 | 12.80 | 54.28 | -24.57 | 73.85 | 0.4238 | 860.7 | 621.5 | |
| 0.00 | 2.52 | 0.00 | 1.39 | 13.89 | 54.02 | -24.82 | 71.48 | 0.4316 | -464.0 | -516.0 | |
| 5.14 | 7.75 | 2.81 | 4.23 | 11.88 | 54.16 | -24.68 | 76.05 | 0.4228 | 1027.6 | 728.9 | |
| 0.00 | 2.79 | 0.00 | 1.53 | 12.58 | 54.09 | -24.75 | 74.45 | 0.4259 | 591.0 | 507.9 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 14.30 | 53.59 | -25.25 | 70.80 | 0.4395 | -551.0 | -401.4 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 14.23 | 53.43 | -25.41 | 71.04 | 0.4417 | -491.0 | -347.6 | |
| 0.72 | 1.98 | 0.40 | 1.09 | 12.27 | 53.51 | -25.34 | 75.39 | 0.4339 | -539.9 | -495.4 | |
| 0.54 | 1.71 | 0.30 | 0.94 | 12.41 | 53.18 | -25.66 | 75.22 | 0.4392 | -637.7 | -455.5 | |
| 0.63 | 6.40 | 0.35 | 3.53 | 12.68 | 53.05 | -25.79 | 74.67 | 0.4420 | -869.7 | -498.3 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 12.40 | 52.91 | -25.94 | 75.36 | 0.4433 | 279.0 | 57.4 | |
| 0.00 | 3.07 | 0.00 | 1.70 | 12.32 | 52.67 | -26.17 | 75.61 | 0.4467 | 750.0 | 608.8 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 18.54 | 51.78 | -27.06 | 63.17 | 0.4853 | 822.0 | 691.2 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 13.32 | 52.42 | -26.42 | 73.52 | 0.4534 | 658.0 | 517.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 12.45 | 52.10 | -26.74 | 75.55 | 0.4556 | 656.0 | 473.1 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 13.93 | 51.75 | -27.09 | 72.52 | 0.4653 | 815.0 | 690.1 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 14.35 | 51.56 | -27.29 | 71.73 | 0.4696 | 825.0 | 652.4 | |
| 0.00 | 2.16 | 0.00 | 1.22 | 14.93 | 51.44 | -27.40 | 70.59 | 0.4734 | 943.0 | 843.8 | |
| 0.81 | 5.23 | 0.45 | 2.93 | 13.42 | 51.39 | -27.45 | 73.74 | 0.4689 | 760.2 | 527.8 | |
| 0.00 | 2.52 | 0.00 | 1.42 | 14.83 | 51.21 | -27.63 | 70.92 | 0.4763 | 958.0 | 763.4 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 15.78 | 51.07 | -27.77 | 69.06 | 0.4820 | 675.0 | 557.7 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 14.58 | 51.17 | -27.67 | 71.44 | 0.4760 | 952.0 | 777.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 12.29 | 51.39 | -27.46 | 76.14 | 0.4659 | 783.0 | 596.5 | |
| 2.25 | 3.70 | 1.27 | 2.08 | 14.72 | 50.94 | -27.90 | 71.26 | 0.4799 | 955.2 | 764.4 | |
| 5.23 | 12.53 | 2.96 | 7.09 | 15.67 | 50.73 | -28.11 | 69.46 | 0.4864 | 964.8 | 650.9 | |
| 1.44 | 31.46 | 0.82 | 17.77 | 14.31 | 50.61 | -28.24 | 72.26 | 0.4833 | 1011.4 | 701.1 | |
| 1.53 | -59.00 | 0.87 | -59.00 | 14.02 | 50.50 | -28.34 | 72.88 | 0.4839 | 1092.7 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.97 | 13.62 | 50.45 | -28.39 | 73.72 | 0.4834 | 886.0 | 697.6 | |
| 0.90 | 96.28 | 0.51 | 54.92 | 15.73 | 50.11 | -28.73 | 69.65 | 0.4954 | 743.3 | 657.4 | |
| 0.00 | 1.89 | 0.00 | 1.08 | 16.09 | 50.02 | -28.82 | 68.98 | 0.4982 | 833.0 | 659.8 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 13.16 | 50.44 | -28.41 | 74.66 | 0.4823 | 751.0 | 618.2 | |
| 5.41 | -62.00 | 3.08 | -62.00 | 15.48 | 50.08 | -28.76 | 70.16 | 0.4950 | 1046.5 | 999999 | |
| 1.44 | -59.00 | 0.82 | -59.00 | 14.07 | 50.25 | -28.60 | 72.89 | 0.4877 | 953.6 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 13.61 | 50.31 | -28.54 | 73.79 | 0.4855 | 688.0 | 563.8 | |
| 1.89 | -62.00 | 1.08 | -62.00 | 14.65 | 50.13 | -28.71 | 71.78 | 0.4913 | 1030.5 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 14.25 | 50.18 | -28.66 | 72.55 | 0.4892 | 775.0 | 666.5 | |
| 1.62 | -62.00 | 0.92 | -62.00 | 14.98 | 49.94 | -28.90 | 71.21 | 0.4952 | 1075.7 | 999999 | |
| 3.52 | -62.00 | 2.00 | -62.00 | 15.38 | 49.88 | -28.96 | 70.46 | 0.4974 | 987.1 | 999999 | |
| 2.43 | -62.00 | 1.39 | -62.00 | 15.16 | 49.84 | -29.00 | 70.90 | 0.4972 | 1081.1 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 13.68 | 49.83 | -29.01 | 73.83 | 0.4926 | 720.0 | 581.5 | |
| 0.00 | 1.71 | 0.00 | 0.98 | 14.04 | 49.75 | -29.09 | 73.14 | 0.4949 | 642.0 | 476.1 | |
| 0.00 | 1.98 | 0.00 | 1.14 | 15.69 | 49.40 | -29.45 | 70.07 | 0.5054 | 465.0 | 349.5 | |
| 0.00 | 2.16 | 0.00 | 1.24 | 14.53 | 49.57 | -29.27 | 72.26 | 0.4989 | 602.0 | 560.3 | |
| 2.07 | -62.00 | 1.19 | -62.00 | 14.76 | 49.39 | -29.45 | 71.87 | 0.5023 | 788.3 | 999999 | |
| 3.07 | -62.00 | 1.76 | -62.00 | 14.97 | 49.29 | -29.55 | 71.50 | 0.5044 | 802.1 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 13.57 | 48.95 | -29.89 | 74.37 | 0.5051 | 468.0 | 429.0 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 15.86 | 47.98 | -30.86 | 70.38 | 0.5259 | 617.0 | 487.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
