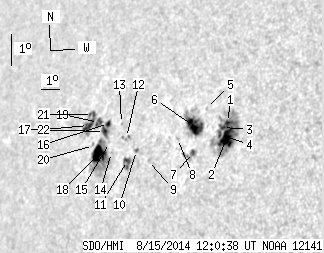

SDO HMI 2014-08-15 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.71 | 212.29 | 67.03 | 184.27 | 16.07 | 23.26 | -55.58 | 74.97 | 0.8218 | -21.2 | 40.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.53 | 72.39 | 1.23 | 57.91 | 16.92 | 26.79 | -52.05 | 73.68 | 0.7884 | -736.2 | -329.6 | |
| 16.95 | -1.00 | 13.53 | -1.00 | 16.43 | 26.92 | -51.92 | 74.28 | 0.7866 | -818.8 | 999999 | |
| 1.53 | -1.00 | 1.23 | -1.00 | 16.74 | 26.59 | -52.25 | 73.92 | 0.7902 | -578.6 | 999999 | |
| 1.35 | -1.00 | 1.09 | -1.00 | 16.52 | 26.53 | -52.32 | 74.21 | 0.7907 | -396.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.97 | 17.25 | 25.55 | -53.29 | 73.39 | 0.8012 | -512.0 | -385.8 | |
| 17.13 | 29.30 | 14.22 | 24.37 | 16.65 | 25.15 | -53.69 | 74.17 | 0.8047 | -629.0 | -134.0 | |
| 1.35 | 9.11 | 1.12 | 7.54 | 15.86 | 25.41 | -53.43 | 75.13 | 0.8016 | -655.5 | -360.0 | |
| 0.00 | 1.26 | 0.00 | 1.06 | 16.20 | 24.41 | -54.43 | 74.78 | 0.8117 | -145.0 | -88.1 | |
| 0.00 | 1.26 | 0.00 | 1.10 | 15.40 | 23.13 | -55.72 | 75.85 | 0.8237 | 297.0 | 272.2 | |
| 0.54 | 1.89 | 0.48 | 1.68 | 15.64 | 22.34 | -56.50 | 75.60 | 0.8312 | 725.7 | 640.7 | |
| 2.16 | 7.39 | 1.93 | 6.61 | 15.29 | 21.97 | -56.87 | 76.03 | 0.8345 | 643.3 | 500.5 | |
| 0.00 | 2.97 | 0.00 | 2.68 | 15.97 | 21.62 | -57.23 | 75.23 | 0.8381 | 557.0 | 524.3 | |
| 0.00 | 0.63 | 0.00 | 0.58 | 16.37 | 21.14 | -57.70 | 74.79 | 0.8426 | 488.0 | 426.6 | |
| 0.00 | 0.45 | 0.00 | 0.41 | 15.44 | 20.96 | -57.88 | 75.89 | 0.8438 | 601.0 | 559.4 | |
| 0.00 | 0.36 | 0.00 | 0.33 | 15.73 | 20.71 | -58.13 | 75.56 | 0.8462 | 379.0 | 361.0 | |
| 2.43 | 10.64 | 2.27 | 9.93 | 16.30 | 20.39 | -58.45 | 74.91 | 0.8492 | 589.5 | 541.9 | |
| 3.88 | -16.00 | 3.62 | -16.00 | 16.03 | 20.27 | -58.57 | 75.22 | 0.8502 | 692.4 | 999999 | |
| 15.96 | 49.13 | 14.92 | 45.81 | 15.31 | 20.24 | -58.60 | 76.07 | 0.8503 | 583.9 | 375.5 | |
| 3.34 | 22.63 | 3.16 | 21.67 | 16.27 | 19.79 | -59.05 | 74.97 | 0.8545 | 588.0 | 310.5 | |
| 0.00 | 1.71 | 0.00 | 1.62 | 15.55 | 19.82 | -59.02 | 75.80 | 0.8540 | -69.0 | -37.6 | |
| 2.25 | -19.00 | 2.16 | -19.00 | 16.47 | 19.31 | -59.53 | 74.75 | 0.8587 | 357.1 | 999999 | |
| 6.31 | -19.00 | 6.07 | -19.00 | 16.12 | 19.24 | -59.60 | 75.16 | 0.8593 | 345.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
