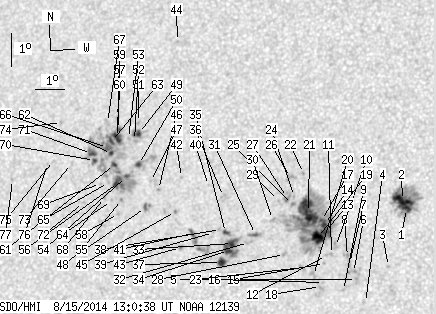

SDO HMI 2014-08-15 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.74 | 538.59 | 67.79 | 293.62 | 13.78 | 54.55 | -23.74 | 70.96 | 0.4143 | -66.4 | 16.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.33 | 60.48 | 2.27 | 31.75 | 13.76 | 60.18 | -18.11 | 66.79 | 0.3300 | -1229.3 | -522.3 | |
| 14.78 | -1.00 | 7.76 | -1.00 | 14.00 | 60.03 | -18.27 | 66.26 | 0.3336 | -1183.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 11.97 | 59.72 | -18.57 | 72.41 | 0.3283 | -886.0 | -759.0 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 10.85 | 59.04 | -19.25 | 76.17 | 0.3349 | -220.0 | -234.6 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 11.54 | 58.70 | -19.59 | 74.37 | 0.3426 | -907.0 | -756.1 | |
| 0.00 | 4.96 | 0.00 | 2.62 | 11.75 | 58.59 | -19.71 | 73.85 | 0.3452 | -854.0 | -815.0 | |
| 0.00 | 2.88 | 0.00 | 1.52 | 12.02 | 58.43 | -19.86 | 73.19 | 0.3486 | -936.0 | -733.2 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 12.23 | 58.35 | -19.94 | 72.66 | 0.3507 | -943.0 | -737.6 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 11.19 | 58.30 | -19.99 | 75.61 | 0.3478 | -718.0 | -575.7 | |
| 0.00 | 3.79 | 0.00 | 2.01 | 12.52 | 57.93 | -20.36 | 72.15 | 0.3584 | -845.0 | -753.7 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 12.27 | 57.82 | -20.47 | 72.90 | 0.3591 | -880.0 | -779.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 12.23 | 57.66 | -20.64 | 73.10 | 0.3615 | -648.0 | -555.2 | |
| 3.43 | 172.97 | 1.82 | 92.36 | 12.93 | 57.53 | -20.76 | 71.32 | 0.3662 | -1082.4 | -383.8 | |
| 2.88 | -13.00 | 1.54 | -13.00 | 13.18 | 57.51 | -20.78 | 70.69 | 0.3676 | -1258.4 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 11.99 | 57.61 | -20.68 | 73.80 | 0.3613 | -808.0 | -637.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 11.41 | 57.62 | -20.67 | 75.37 | 0.3592 | -835.0 | -737.6 | |
| 0.27 | -13.00 | 0.14 | -13.00 | 13.29 | 57.40 | -20.89 | 70.46 | 0.3698 | -1154.0 | 999999 | |
| 0.00 | 3.88 | 0.00 | 2.06 | 11.28 | 57.53 | -20.76 | 75.76 | 0.3602 | -543.0 | -553.0 | |
| 10.10 | -13.00 | 5.38 | -13.00 | 12.77 | 57.31 | -20.98 | 71.89 | 0.3689 | -988.9 | 999999 | |
| 0.00 | 4.60 | 0.00 | 2.45 | 11.61 | 57.27 | -21.02 | 75.01 | 0.3653 | -670.0 | -660.0 | |
| 30.47 | -13.00 | 16.29 | -13.00 | 13.52 | 56.94 | -21.35 | 70.20 | 0.3778 | -926.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 14.71 | 56.66 | -21.63 | 67.44 | 0.3877 | -753.0 | -640.2 | |
| 0.00 | 3.06 | 0.00 | 1.63 | 11.84 | 56.89 | -21.40 | 74.61 | 0.3720 | -630.0 | -553.9 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 13.99 | 56.43 | -21.86 | 69.39 | 0.3877 | -526.0 | -548.5 | |
| 0.00 | 2.34 | 0.00 | 1.26 | 13.74 | 56.38 | -21.91 | 70.03 | 0.3872 | -778.0 | -651.8 | |
| 0.00 | 5.32 | 0.00 | 2.86 | 14.57 | 56.23 | -22.06 | 68.12 | 0.3934 | -793.0 | -650.1 | |
| 0.00 | 4.96 | 0.00 | 2.67 | 13.95 | 56.19 | -22.10 | 69.65 | 0.3910 | -898.0 | -732.1 | |
| 0.00 | 2.07 | 0.00 | 1.11 | 12.21 | 56.26 | -22.03 | 73.99 | 0.3831 | -647.0 | -432.1 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 13.85 | 55.90 | -22.39 | 70.11 | 0.3950 | -477.0 | -424.4 | |
| 0.00 | 2.25 | 0.00 | 1.21 | 13.26 | 55.76 | -22.53 | 71.65 | 0.3947 | -512.0 | -332.1 | |
| 1.08 | 5.50 | 0.58 | 2.97 | 12.78 | 55.23 | -23.06 | 73.14 | 0.4009 | 1010.8 | 762.8 | |
| 0.00 | 3.24 | 0.00 | 1.76 | 12.52 | 55.01 | -23.28 | 73.87 | 0.4033 | 560.0 | 583.7 | |
| 5.68 | 20.28 | 3.08 | 11.01 | 12.47 | 54.48 | -23.81 | 74.27 | 0.4113 | 959.2 | 816.8 | |
| 6.85 | -33.00 | 3.72 | -33.00 | 12.25 | 54.36 | -23.93 | 74.85 | 0.4124 | 987.5 | 999999 | |
| 1.71 | 3.97 | 0.93 | 2.16 | 12.79 | 54.21 | -24.08 | 73.63 | 0.4165 | 851.9 | 482.6 | |
| 0.00 | 1.98 | 0.00 | 1.08 | 13.89 | 54.02 | -24.27 | 71.18 | 0.4233 | -546.0 | -573.5 | |
| 4.69 | 6.94 | 2.55 | 3.77 | 11.87 | 54.16 | -24.13 | 75.83 | 0.4144 | 999.4 | 755.6 | |
| 0.00 | 1.98 | 0.00 | 1.08 | 12.88 | 54.03 | -24.26 | 73.52 | 0.4195 | 497.0 | 490.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 12.77 | 53.80 | -24.49 | 73.87 | 0.4226 | 497.0 | 437.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 14.20 | 53.47 | -24.82 | 70.79 | 0.4328 | -465.0 | -403.6 | |
| 1.53 | 16.59 | 0.84 | 9.09 | 12.71 | 53.08 | -25.21 | 74.35 | 0.4333 | -687.9 | -534.1 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 14.40 | 52.51 | -25.78 | 70.88 | 0.4477 | 785.0 | 592.2 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 12.26 | 52.72 | -25.57 | 75.51 | 0.4375 | 772.0 | 672.6 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 18.57 | 51.77 | -26.52 | 62.74 | 0.4782 | 744.0 | 656.1 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 13.35 | 52.43 | -25.87 | 73.21 | 0.4452 | 757.0 | 619.2 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 13.99 | 51.76 | -26.53 | 72.13 | 0.4573 | 777.0 | 655.1 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 14.22 | 51.45 | -26.84 | 71.79 | 0.4627 | 745.0 | 561.0 | |
| 0.99 | 5.59 | 0.55 | 3.12 | 13.42 | 51.37 | -26.92 | 73.53 | 0.4611 | 735.6 | 604.9 | |
| 2.43 | 8.20 | 1.37 | 4.62 | 15.67 | 50.83 | -27.46 | 69.12 | 0.4772 | 976.0 | 755.4 | |
| 2.07 | 11.72 | 1.16 | 6.56 | 14.72 | 50.96 | -27.33 | 70.99 | 0.4716 | 974.8 | 751.3 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 16.01 | 50.78 | -27.51 | 68.46 | 0.4793 | 652.0 | 528.7 | |
| 0.00 | 1.80 | 0.00 | 1.02 | 15.45 | 50.72 | -27.58 | 69.62 | 0.4779 | 490.0 | 429.1 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 15.50 | 50.49 | -27.80 | 69.64 | 0.4813 | 877.0 | 754.8 | |
| 1.26 | 133.04 | 0.71 | 75.33 | 14.33 | 50.59 | -27.71 | 71.97 | 0.4756 | 991.3 | 673.4 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 13.62 | 50.50 | -27.79 | 73.47 | 0.4746 | 870.0 | 766.5 | |
| 7.84 | -54.00 | 4.42 | -54.00 | 14.14 | 50.33 | -27.96 | 72.49 | 0.4787 | 1088.7 | 999999 | |
| 1.17 | -54.00 | 0.66 | -54.00 | 15.76 | 50.10 | -28.19 | 69.33 | 0.4879 | 749.2 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 13.19 | 50.45 | -27.84 | 74.39 | 0.4740 | 690.0 | 519.3 | |
| 6.22 | -54.00 | 3.52 | -54.00 | 15.51 | 50.10 | -28.19 | 69.82 | 0.4869 | 1018.2 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 16.15 | 50.00 | -28.29 | 68.59 | 0.4909 | 709.0 | 626.5 | |
| 1.98 | -54.00 | 1.12 | -54.00 | 14.68 | 50.11 | -28.18 | 71.48 | 0.4837 | 1088.2 | 999999 | |
| 1.62 | -54.00 | 0.92 | -54.00 | 15.01 | 49.96 | -28.33 | 70.89 | 0.4871 | 1027.3 | 999999 | |
| 2.34 | -54.00 | 1.33 | -54.00 | 15.38 | 49.90 | -28.39 | 70.18 | 0.4892 | 1013.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 13.57 | 50.15 | -28.14 | 73.71 | 0.4795 | 676.0 | 535.1 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 14.12 | 49.98 | -28.32 | 72.68 | 0.4838 | 672.0 | 499.7 | |
| 3.52 | -54.00 | 2.00 | -54.00 | 15.19 | 49.79 | -28.50 | 70.61 | 0.4902 | 1031.7 | 999999 | |
| 0.00 | 3.79 | 0.00 | 2.16 | 15.95 | 49.67 | -28.62 | 69.16 | 0.4947 | 598.0 | 383.7 | |
| 0.00 | 1.44 | 0.00 | 0.82 | 13.65 | 49.89 | -28.40 | 73.65 | 0.4835 | 726.0 | 615.3 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 14.07 | 49.70 | -28.59 | 72.88 | 0.4877 | 591.0 | 469.6 | |
| 1.35 | -54.00 | 0.77 | -54.00 | 14.76 | 49.38 | -28.91 | 71.64 | 0.4945 | 819.6 | 999999 | |
| 4.15 | -54.00 | 2.36 | -54.00 | 14.97 | 49.25 | -29.04 | 71.29 | 0.4972 | 738.0 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.51 | 13.46 | 49.17 | -29.12 | 74.31 | 0.4936 | 557.0 | 484.3 | |
| 0.00 | 1.62 | 0.00 | 0.93 | 14.63 | 48.58 | -29.72 | 72.24 | 0.5056 | 575.0 | 452.8 | |
| 0.00 | 1.08 | 0.00 | 0.63 | 15.86 | 48.02 | -30.27 | 70.12 | 0.5177 | 660.0 | 559.6 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 14.68 | 47.91 | -30.38 | 72.40 | 0.5152 | 606.0 | 472.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 14.58 | 47.71 | -30.58 | 72.67 | 0.5178 | 453.0 | 404.3 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 14.02 | 46.51 | -31.78 | 74.14 | 0.5332 | 436.0 | 402.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
