SDO HMI 2014-08-15 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.74 | 224.41 | 59.89 | 192.32 | 16.10 | 23.23 | -55.06 | 74.90 | 0.8168 | -42.9 | 47.2 | |
|
previous
or next observation for the same group /

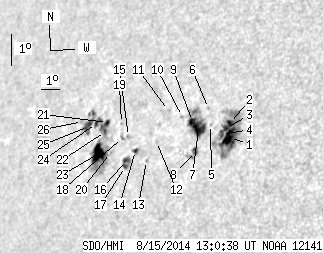

back to the solar disc SDO HMI 2014-08-15 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.26 | 72.29 | 9.67 | 57.11 | 16.45 | 26.98 | -51.31 | 74.19 | 0.7802 | -861.2 | -360.8 | |
| 2.52 | -1.00 | 2.00 | -1.00 | 16.88 | 26.82 | -51.47 | 73.67 | 0.7823 | -687.1 | 999999 | |
| 2.16 | -1.00 | 1.72 | -1.00 | 16.71 | 26.68 | -51.61 | 73.90 | 0.7836 | -613.1 | 999999 | |
| 1.44 | -1.00 | 1.15 | -1.00 | 16.51 | 26.55 | -51.74 | 74.16 | 0.7848 | -334.7 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.36 | 16.76 | 25.88 | -52.41 | 73.91 | 0.7919 | -488.0 | -459.2 | |
| 0.00 | 0.90 | 0.00 | 0.73 | 17.24 | 25.59 | -52.70 | 73.34 | 0.7953 | -438.0 | -399.2 | |
| 12.62 | 34.97 | 10.31 | 28.69 | 16.59 | 25.32 | -52.97 | 74.18 | 0.7974 | -707.4 | -181.2 | |
| 1.98 | 8.11 | 1.61 | 6.62 | 15.88 | 25.44 | -52.85 | 75.06 | 0.7957 | -656.3 | -422.4 | |
| 4.51 | -7.00 | 3.72 | -7.00 | 16.77 | 24.93 | -53.36 | 73.99 | 0.8015 | -458.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.98 | 16.87 | 24.35 | -53.94 | 73.91 | 0.8073 | -154.0 | -159.2 | |
| 0.00 | 1.17 | 0.00 | 1.00 | 16.99 | 23.53 | -54.76 | 73.84 | 0.8154 | 282.0 | 219.2 | |
| 0.00 | 0.90 | 0.00 | 0.77 | 15.99 | 23.29 | -55.00 | 75.08 | 0.8171 | 204.0 | 184.2 | |
| 0.00 | 1.35 | 0.00 | 1.16 | 15.37 | 22.98 | -55.31 | 75.85 | 0.8198 | 436.0 | 418.3 | |
| 1.26 | 2.43 | 1.10 | 2.13 | 15.62 | 22.26 | -56.03 | 75.59 | 0.8268 | 558.9 | 529.9 | |
| 0.00 | 1.98 | 0.00 | 1.76 | 16.00 | 21.70 | -56.59 | 75.16 | 0.8322 | 421.0 | 471.1 | |
| 2.70 | 8.29 | 2.39 | 7.32 | 15.27 | 21.89 | -56.40 | 76.03 | 0.8301 | 602.4 | 492.7 | |
| 1.71 | -16.00 | 1.51 | -16.00 | 15.09 | 21.91 | -56.38 | 76.26 | 0.8299 | 575.6 | 999999 | |
| 0.00 | 2.70 | 0.00 | 2.42 | 15.94 | 21.38 | -56.91 | 75.25 | 0.8352 | 599.0 | 523.0 | |
| 0.00 | 0.90 | 0.00 | 0.81 | 16.36 | 21.13 | -57.16 | 74.77 | 0.8376 | 369.0 | 346.5 | |
| 0.00 | 0.63 | 0.00 | 0.57 | 15.43 | 20.90 | -57.39 | 75.89 | 0.8394 | 634.0 | 497.0 | |
| 1.98 | 84.64 | 1.83 | 78.42 | 16.31 | 20.32 | -57.97 | 74.87 | 0.8449 | 640.6 | 402.7 | |
| 1.26 | -21.00 | 1.16 | -21.00 | 16.03 | 20.33 | -57.96 | 75.20 | 0.8447 | 737.7 | 999999 | |
| 15.23 | -21.00 | 14.05 | -21.00 | 15.33 | 20.23 | -58.06 | 76.03 | 0.8455 | 612.9 | 999999 | |
| 1.44 | -21.00 | 1.35 | -21.00 | 16.22 | 19.70 | -58.59 | 75.00 | 0.8505 | 572.6 | 999999 | |
| 6.67 | -21.00 | 6.32 | -21.00 | 16.08 | 19.27 | -59.02 | 75.18 | 0.8542 | 364.1 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.47 | 16.20 | 18.84 | -59.45 | 75.06 | 0.8579 | -343.0 | -253.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
