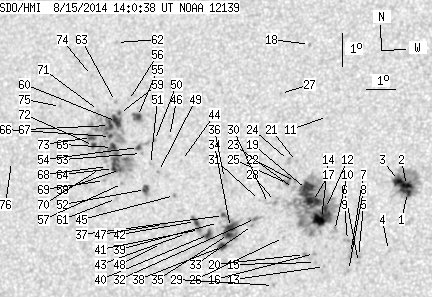

SDO HMI 2014-08-15 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137.79 | 525.62 | 74.47 | 285.38 | 13.79 | 54.56 | -23.18 | 70.60 | 0.4061 | -127.2 | 69.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.23 | 56.78 | 2.73 | 29.72 | 13.75 | 60.19 | -17.55 | 66.25 | 0.3214 | -1166.3 | -495.2 | |
| 8.92 | -1.00 | 4.67 | -1.00 | 13.96 | 60.14 | -17.60 | 65.68 | 0.3234 | -1268.9 | 999999 | |
| 6.67 | -1.00 | 3.50 | -1.00 | 14.11 | 59.86 | -17.88 | 65.57 | 0.3284 | -993.0 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 11.96 | 59.69 | -18.04 | 72.05 | 0.3199 | -700.0 | -664.4 | |
| 0.00 | 3.60 | 0.00 | 1.89 | 11.74 | 58.73 | -19.01 | 73.41 | 0.3342 | -1032.0 | -758.1 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 11.56 | 58.74 | -19.00 | 73.94 | 0.3334 | -984.0 | -746.0 | |
| 0.00 | 4.33 | 0.00 | 2.28 | 11.82 | 58.46 | -19.28 | 73.36 | 0.3388 | -822.0 | -795.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 11.30 | 58.43 | -19.31 | 74.88 | 0.3373 | -632.0 | -690.0 | |
| 0.00 | 2.70 | 0.00 | 1.42 | 12.22 | 58.33 | -19.41 | 72.32 | 0.3423 | -937.0 | -776.7 | |
| 0.00 | 4.33 | 0.00 | 2.29 | 12.51 | 57.88 | -19.86 | 71.84 | 0.3506 | -896.0 | -781.7 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 15.98 | 57.33 | -20.41 | 63.22 | 0.3772 | -395.0 | -439.2 | |
| 3.88 | 165.37 | 2.06 | 87.96 | 13.17 | 57.53 | -20.21 | 70.30 | 0.3589 | -1244.6 | -352.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 11.40 | 57.63 | -20.11 | 75.09 | 0.3502 | -793.0 | -711.5 | |
| 20.55 | -12.00 | 10.90 | -12.00 | 12.86 | 57.42 | -20.32 | 71.21 | 0.3591 | -1056.3 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 11.51 | 57.33 | -20.41 | 74.95 | 0.3554 | -712.0 | -560.2 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 11.78 | 57.27 | -20.46 | 74.23 | 0.3572 | -885.0 | -776.1 | |
| 14.33 | -12.00 | 7.62 | -12.00 | 13.36 | 57.08 | -20.66 | 70.11 | 0.3666 | -1060.2 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 18.18 | 56.46 | -21.28 | 58.97 | 0.4041 | -672.0 | -460.9 | |
| 15.32 | -12.00 | 8.17 | -12.00 | 13.72 | 56.84 | -20.89 | 69.35 | 0.3718 | -1006.8 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.24 | 11.74 | 56.95 | -20.79 | 74.54 | 0.3622 | -780.0 | -639.8 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 14.56 | 56.43 | -21.31 | 67.54 | 0.3823 | -916.0 | -675.5 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 13.95 | 56.45 | -21.29 | 69.06 | 0.3788 | -830.0 | -710.5 | |
| 0.00 | 2.88 | 0.00 | 1.54 | 13.73 | 56.41 | -21.33 | 69.64 | 0.3785 | -686.0 | -610.9 | |
| 0.00 | 3.60 | 0.00 | 1.93 | 14.58 | 56.16 | -21.58 | 67.71 | 0.3864 | -668.0 | -613.6 | |
| 0.99 | 7.30 | 0.53 | 3.91 | 13.88 | 56.19 | -21.55 | 69.44 | 0.3824 | -874.5 | -666.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 12.23 | 56.21 | -21.53 | 73.66 | 0.3754 | -610.0 | -483.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 16.63 | 55.66 | -22.08 | 63.26 | 0.4050 | -725.0 | -555.7 | |
| 0.00 | 2.79 | 0.00 | 1.50 | 13.31 | 55.84 | -21.90 | 71.10 | 0.3852 | -598.0 | -391.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 10.75 | 55.99 | -21.75 | 77.65 | 0.3742 | -679.0 | -528.4 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 13.24 | 55.61 | -22.13 | 71.43 | 0.3884 | 96.0 | -0.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 13.32 | 55.30 | -22.44 | 71.43 | 0.3935 | 599.0 | 478.3 | |
| 0.00 | 5.41 | 0.00 | 2.91 | 12.77 | 55.22 | -22.52 | 72.86 | 0.3926 | 1108.0 | 836.9 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 12.55 | 55.14 | -22.60 | 73.44 | 0.3930 | 687.0 | 657.8 | |
| 7.12 | 41.55 | 3.85 | 22.49 | 12.46 | 54.40 | -23.34 | 74.06 | 0.4040 | 942.9 | 669.2 | |
| 4.87 | -34.00 | 2.63 | -34.00 | 12.24 | 54.36 | -23.38 | 74.61 | 0.4040 | 1030.1 | 999999 | |
| 0.00 | 4.06 | 0.00 | 2.21 | 13.94 | 54.05 | -23.69 | 70.71 | 0.4149 | -677.0 | -574.8 | |
| 1.44 | -34.00 | 0.78 | -34.00 | 12.81 | 54.13 | -23.61 | 73.34 | 0.4093 | 899.3 | 999999 | |
| 4.42 | -34.00 | 2.39 | -34.00 | 11.87 | 54.19 | -23.55 | 75.60 | 0.4054 | 1035.1 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 12.59 | 53.98 | -23.76 | 73.95 | 0.4108 | 492.0 | 534.0 | |
| 3.42 | 19.38 | 1.86 | 10.56 | 12.21 | 53.68 | -24.06 | 75.00 | 0.4143 | -560.6 | -356.5 | |
| 0.99 | -40.00 | 0.54 | -40.00 | 12.35 | 53.36 | -24.38 | 74.81 | 0.4196 | -779.6 | 999999 | |
| 2.97 | -40.00 | 1.62 | -40.00 | 12.59 | 53.20 | -24.54 | 74.33 | 0.4227 | -782.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 12.21 | 52.93 | -24.81 | 75.33 | 0.4257 | 710.0 | 570.5 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 14.42 | 52.51 | -25.22 | 70.52 | 0.4396 | 737.0 | 534.3 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 13.34 | 52.40 | -25.34 | 72.98 | 0.4374 | 732.0 | 678.7 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 15.14 | 52.01 | -25.73 | 69.25 | 0.4500 | -607.0 | -440.7 | |
| 0.00 | 2.16 | 0.00 | 1.19 | 12.44 | 52.11 | -25.62 | 75.13 | 0.4388 | 874.0 | 736.0 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 11.86 | 52.10 | -25.63 | 76.45 | 0.4373 | 633.0 | 445.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 14.05 | 51.76 | -25.98 | 71.74 | 0.4493 | 888.0 | 699.4 | |
| 0.00 | 1.80 | 0.00 | 1.00 | 14.99 | 51.50 | -26.24 | 69.86 | 0.4567 | 977.0 | 828.5 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 14.25 | 51.46 | -26.28 | 71.46 | 0.4545 | 839.0 | 700.4 | |
| 3.51 | 6.40 | 1.95 | 3.55 | 13.48 | 51.37 | -26.36 | 73.16 | 0.4530 | 865.9 | 547.3 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 14.57 | 51.10 | -26.64 | 70.96 | 0.4610 | 860.0 | 732.7 | |
| 1.71 | 6.85 | 0.96 | 3.82 | 14.75 | 50.97 | -26.77 | 70.65 | 0.4635 | 1012.0 | 758.2 | |
| 3.88 | 7.03 | 2.17 | 3.94 | 15.70 | 50.81 | -26.93 | 68.77 | 0.4697 | 1004.1 | 816.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 16.17 | 50.42 | -27.32 | 68.03 | 0.4773 | 688.0 | 519.6 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 13.62 | 50.55 | -27.19 | 73.22 | 0.4657 | 730.0 | 670.7 | |
| 2.16 | 135.00 | 1.21 | 76.10 | 14.05 | 50.43 | -27.31 | 72.39 | 0.4689 | 1040.1 | 681.3 | |
| 0.81 | -58.00 | 0.46 | -58.00 | 15.76 | 50.16 | -27.58 | 69.01 | 0.4792 | 738.0 | 999999 | |
| 7.03 | -58.00 | 3.96 | -58.00 | 15.51 | 50.09 | -27.65 | 69.55 | 0.4792 | 997.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 13.15 | 50.40 | -27.34 | 74.27 | 0.4665 | 605.0 | 473.1 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 17.93 | 49.70 | -28.03 | 64.99 | 0.4954 | 662.0 | 532.5 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 16.12 | 49.96 | -27.78 | 68.39 | 0.4835 | 709.0 | 587.7 | |
| 1.98 | -58.00 | 1.11 | -58.00 | 14.06 | 50.18 | -27.56 | 72.46 | 0.4726 | 917.4 | 999999 | |
| 4.42 | -58.00 | 2.49 | -58.00 | 14.70 | 50.06 | -27.68 | 71.20 | 0.4766 | 1053.3 | 999999 | |
| 1.53 | -58.00 | 0.86 | -58.00 | 15.04 | 49.94 | -27.80 | 70.58 | 0.4795 | 1115.3 | 999999 | |
| 4.87 | -58.00 | 2.75 | -58.00 | 15.37 | 49.86 | -27.88 | 69.94 | 0.4820 | 1005.9 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 14.11 | 49.96 | -27.78 | 72.45 | 0.4760 | 620.0 | 522.7 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 13.68 | 49.91 | -27.83 | 73.37 | 0.4753 | 708.0 | 635.0 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 14.04 | 49.72 | -28.02 | 72.71 | 0.4792 | 529.0 | 406.7 | |
| 0.00 | 1.08 | 0.00 | 0.61 | 15.81 | 49.40 | -28.34 | 69.30 | 0.4902 | 419.0 | 353.2 | |
| 1.98 | -58.00 | 1.12 | -58.00 | 14.73 | 49.38 | -28.36 | 71.46 | 0.4865 | 747.5 | 999999 | |
| 2.79 | -58.00 | 1.58 | -58.00 | 14.97 | 49.27 | -28.47 | 71.03 | 0.4889 | 785.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 16.87 | 48.98 | -28.76 | 67.45 | 0.5005 | 474.0 | 336.3 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 15.86 | 48.02 | -29.72 | 69.88 | 0.5099 | 615.0 | 528.4 | |
| 0.00 | 0.72 | 0.00 | 0.42 | 14.08 | 46.51 | -31.23 | 73.85 | 0.5257 | 492.0 | 471.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
