SDO HMI 2014-08-15 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.42 | 10.72 | 3.13 | 9.19 | -6.04 | 24.51 | -53.23 | 102.25 | 0.8160 | 78.9 | 71.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

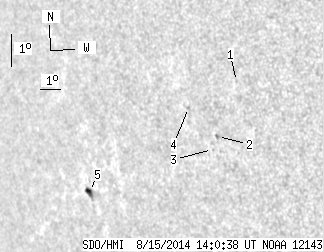

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.68 | -2.92 | 29.90 | -47.84 | 99.82 | 0.7536 | 457.0 | 394.2 | |
| 0.00 | 1.89 | 0.00 | 1.46 | -4.71 | 28.89 | -48.85 | 101.84 | 0.7691 | 593.0 | 479.9 | |
| 0.00 | 0.54 | 0.00 | 0.42 | -5.13 | 28.61 | -49.13 | 102.30 | 0.7731 | 437.0 | 413.3 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -3.93 | 27.59 | -50.15 | 100.50 | 0.7812 | 598.0 | 436.1 | |
| 3.42 | 6.49 | 3.13 | 5.92 | -7.04 | 22.15 | -55.59 | 102.84 | 0.8419 | -486.4 | -365.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
