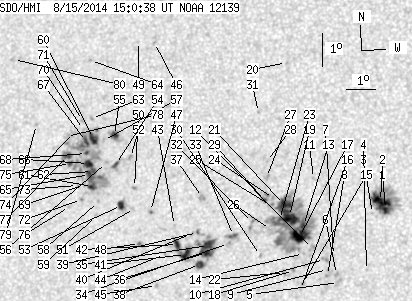

SDO HMI 2014-08-15 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 143.62 | 538.68 | 77.55 | 291.43 | 13.79 | 54.49 | -22.70 | 70.27 | 0.3988 | -57.9 | 38.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.51 | 57.31 | 2.35 | 29.91 | 13.77 | 60.19 | -17.00 | 65.59 | 0.3132 | -1194.3 | -524.4 | |
| 15.95 | -1.00 | 8.33 | -1.00 | 14.01 | 60.01 | -17.18 | 65.08 | 0.3173 | -1173.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 13.63 | 59.78 | -17.41 | 66.45 | 0.3186 | -627.0 | -489.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 11.89 | 59.70 | -17.48 | 71.82 | 0.3108 | -880.0 | -726.6 | |
| 0.00 | 4.60 | 0.00 | 2.40 | 11.49 | 58.82 | -18.37 | 73.71 | 0.3232 | -809.0 | -669.2 | |
| 0.00 | 2.16 | 0.00 | 1.13 | 11.73 | 58.73 | -18.45 | 73.05 | 0.3254 | -1030.0 | -852.7 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 12.31 | 58.59 | -18.59 | 71.45 | 0.3300 | -682.0 | -570.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 11.69 | 58.44 | -18.74 | 73.38 | 0.3298 | -1026.0 | -890.0 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 11.88 | 58.43 | -18.76 | 72.85 | 0.3308 | -836.0 | -777.3 | |
| 0.00 | 2.97 | 0.00 | 1.56 | 12.18 | 58.31 | -18.88 | 72.05 | 0.3339 | -890.0 | -771.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 14.64 | 57.74 | -19.44 | 65.71 | 0.3549 | -698.0 | -431.8 | |
| 0.00 | 4.15 | 0.00 | 2.18 | 12.50 | 57.89 | -19.30 | 71.45 | 0.3418 | -859.0 | -830.4 | |
| 1.98 | 162.74 | 1.05 | 86.24 | 13.19 | 57.54 | -19.65 | 69.80 | 0.3503 | -1335.6 | -409.2 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 12.33 | 57.61 | -19.58 | 72.12 | 0.3455 | -747.0 | -685.6 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 11.42 | 57.64 | -19.55 | 74.70 | 0.3415 | -868.0 | -683.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 11.23 | 57.59 | -19.60 | 75.26 | 0.3417 | -647.0 | -488.9 | |
| 13.97 | -13.00 | 7.38 | -13.00 | 12.85 | 57.43 | -19.75 | 70.82 | 0.3504 | -1151.6 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 11.80 | 57.32 | -19.87 | 73.81 | 0.3479 | -966.0 | -779.0 | |
| 17.93 | -13.00 | 9.51 | -13.00 | 13.44 | 57.05 | -20.13 | 69.49 | 0.3590 | -1084.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 18.17 | 56.46 | -20.73 | 58.41 | 0.3965 | -779.0 | -566.6 | |
| 10.72 | -13.00 | 5.70 | -13.00 | 13.80 | 56.85 | -20.33 | 68.69 | 0.3637 | -1000.1 | 999999 | |
| 0.00 | 3.51 | 0.00 | 1.86 | 11.73 | 57.02 | -20.16 | 74.19 | 0.3523 | -753.0 | -579.1 | |
| 1.35 | -13.00 | 0.72 | -13.00 | 13.34 | 56.73 | -20.46 | 70.02 | 0.3634 | -641.3 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 13.97 | 56.47 | -20.72 | 68.56 | 0.3704 | -751.0 | -698.1 | |
| 0.00 | 2.16 | 0.00 | 1.15 | 13.76 | 56.39 | -20.80 | 69.19 | 0.3705 | -704.0 | -658.5 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 13.02 | 56.46 | -20.73 | 71.06 | 0.3662 | 249.0 | 251.5 | |
| 0.00 | 2.88 | 0.00 | 1.54 | 14.61 | 56.18 | -21.01 | 67.19 | 0.3780 | -675.0 | -642.0 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 15.10 | 56.13 | -21.06 | 66.01 | 0.3814 | -700.0 | -539.9 | |
| 0.90 | 4.51 | 0.48 | 2.41 | 13.90 | 56.21 | -20.98 | 68.95 | 0.3739 | -896.5 | -737.6 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 12.22 | 56.19 | -21.00 | 73.37 | 0.3670 | -650.0 | -509.9 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 16.59 | 55.69 | -21.50 | 62.81 | 0.3965 | -631.0 | -502.0 | |
| 0.00 | 7.48 | 0.00 | 4.00 | 13.21 | 55.84 | -21.35 | 70.99 | 0.3764 | -398.0 | -27.8 | |
| 1.71 | 6.04 | 0.92 | 3.24 | 12.79 | 55.24 | -21.95 | 72.46 | 0.3839 | 1011.9 | 505.6 | |
| 0.00 | 2.25 | 0.00 | 1.21 | 12.54 | 55.09 | -22.09 | 73.18 | 0.3852 | 947.0 | 632.9 | |
| 8.38 | 36.85 | 4.52 | 19.87 | 12.45 | 54.43 | -22.76 | 73.77 | 0.3951 | 960.1 | 665.4 | |
| 7.57 | -35.00 | 4.08 | -35.00 | 12.24 | 54.38 | -22.81 | 74.34 | 0.3951 | 1056.6 | 999999 | |
| 0.00 | 3.51 | 0.00 | 1.90 | 13.91 | 54.08 | -23.10 | 70.44 | 0.4059 | -823.0 | -687.1 | |
| 4.33 | -35.00 | 2.33 | -35.00 | 11.86 | 54.18 | -23.01 | 75.37 | 0.3970 | 1051.8 | 999999 | |
| 0.54 | 3.15 | 0.29 | 1.70 | 12.83 | 54.02 | -23.17 | 73.06 | 0.4027 | 822.5 | 663.9 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 12.79 | 53.82 | -23.37 | 73.26 | 0.4056 | 581.0 | 572.5 | |
| 6.67 | 23.79 | 3.61 | 12.90 | 12.14 | 53.68 | -23.51 | 74.90 | 0.4056 | -576.6 | -262.7 | |
| 3.96 | -41.00 | 2.15 | -41.00 | 12.44 | 53.38 | -23.81 | 74.34 | 0.4111 | -738.5 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 13.01 | 53.22 | -23.97 | 73.06 | 0.4155 | 684.0 | 503.3 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 12.11 | 52.97 | -24.22 | 75.30 | 0.4164 | 810.0 | 609.7 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 11.16 | 52.78 | -24.40 | 77.65 | 0.4167 | 846.0 | 689.6 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 18.59 | 51.80 | -25.38 | 61.83 | 0.4627 | 709.0 | 492.9 | |
| 0.36 | 1.26 | 0.20 | 0.69 | 13.40 | 52.36 | -24.83 | 72.60 | 0.4298 | 660.5 | 523.1 | |
| 0.63 | 3.24 | 0.35 | 1.78 | 12.41 | 52.08 | -25.10 | 75.00 | 0.4307 | 874.7 | 681.7 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 18.60 | 51.23 | -25.95 | 62.26 | 0.4705 | 538.0 | 478.8 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 14.11 | 51.72 | -25.46 | 71.35 | 0.4419 | 802.0 | 653.4 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 13.47 | 51.80 | -25.39 | 72.73 | 0.4385 | 235.0 | 203.5 | |
| 0.00 | 2.25 | 0.00 | 1.25 | 15.02 | 51.47 | -25.71 | 69.51 | 0.4492 | 936.0 | 824.6 | |
| 4.24 | 8.74 | 2.34 | 4.83 | 13.54 | 51.34 | -25.85 | 72.80 | 0.4455 | 969.0 | 658.8 | |
| 1.80 | 6.67 | 1.00 | 3.71 | 14.78 | 50.98 | -26.21 | 70.30 | 0.4554 | 981.3 | 753.2 | |
| 4.24 | 10.27 | 2.36 | 5.73 | 15.66 | 50.83 | -26.36 | 68.51 | 0.4614 | 992.8 | 603.1 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 14.82 | 50.66 | -26.53 | 70.37 | 0.4603 | 865.0 | 689.8 | |
| 0.00 | 1.71 | 0.00 | 0.96 | 15.49 | 50.46 | -26.73 | 69.08 | 0.4659 | 664.0 | 521.6 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 13.62 | 50.53 | -26.66 | 73.00 | 0.4579 | 789.0 | 649.6 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 13.19 | 50.51 | -26.68 | 73.93 | 0.4568 | 568.0 | 481.5 | |
| 7.21 | 122.46 | 4.04 | 68.68 | 15.54 | 50.10 | -27.09 | 69.19 | 0.4712 | 1006.3 | 709.3 | |
| 3.15 | -60.00 | 1.76 | -60.00 | 14.07 | 50.26 | -26.92 | 72.17 | 0.4633 | 1100.1 | 999999 | |
| 2.43 | -60.00 | 1.36 | -60.00 | 14.52 | 50.20 | -26.98 | 71.23 | 0.4658 | 1110.3 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 16.14 | 49.94 | -27.24 | 68.04 | 0.4761 | 677.0 | 636.6 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 17.93 | 49.63 | -27.56 | 64.70 | 0.4889 | 690.0 | 580.6 | |
| 4.05 | -60.00 | 2.27 | -60.00 | 14.43 | 50.11 | -27.08 | 71.48 | 0.4668 | 1073.8 | 999999 | |
| 5.32 | -60.00 | 2.98 | -60.00 | 14.76 | 50.03 | -27.16 | 70.82 | 0.4692 | 1084.0 | 999999 | |
| 3.42 | -60.00 | 1.92 | -60.00 | 15.43 | 49.87 | -27.32 | 69.53 | 0.4741 | 988.8 | 999999 | |
| 1.17 | -60.00 | 0.66 | -60.00 | 15.06 | 49.92 | -27.27 | 70.26 | 0.4719 | 1139.7 | 999999 | |
| 0.00 | 2.97 | 0.00 | 1.66 | 14.11 | 49.97 | -27.21 | 72.20 | 0.4677 | 542.0 | 505.2 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 15.79 | 49.71 | -27.48 | 68.88 | 0.4779 | 150.0 | 194.8 | |
| 0.00 | 1.44 | 0.00 | 0.81 | 16.07 | 49.63 | -27.55 | 68.37 | 0.4801 | 573.0 | 481.0 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 13.65 | 49.93 | -27.26 | 73.20 | 0.4668 | 769.0 | 647.8 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 14.07 | 49.73 | -27.45 | 72.40 | 0.4710 | 546.0 | 397.6 | |
| 0.00 | 2.52 | 0.00 | 1.43 | 15.68 | 49.37 | -27.82 | 69.28 | 0.4823 | 368.0 | 288.2 | |
| 1.71 | -60.00 | 0.96 | -60.00 | 14.73 | 49.40 | -27.79 | 71.20 | 0.4782 | 790.3 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 13.42 | 49.53 | -27.65 | 73.85 | 0.4719 | 527.0 | 478.5 | |
| 3.42 | -60.00 | 1.93 | -60.00 | 14.97 | 49.26 | -27.93 | 70.78 | 0.4811 | 775.3 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.48 | 15.55 | 49.14 | -28.05 | 69.67 | 0.4850 | -47.0 | 42.0 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 15.86 | 48.01 | -29.17 | 69.62 | 0.5022 | 616.0 | 459.2 | |
| 0.00 | 2.52 | 0.00 | 1.47 | 17.81 | 46.84 | -30.35 | 66.55 | 0.5265 | 333.0 | 345.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
