SDO HMI 2014-08-15 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.51 | 12.70 | 3.16 | 10.84 | -6.39 | 24.20 | -52.99 | 102.77 | 0.8146 | -45.9 | -21.2 | |
|
previous
or next observation for the same group /

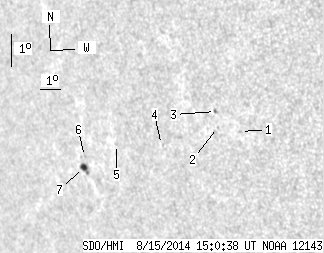

back to the solar disc SDO HMI 2014-08-15 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.88 | -5.21 | 30.03 | -47.16 | 103.00 | 0.7517 | 524.0 | 465.3 | |
| 0.00 | 0.63 | 0.00 | 0.48 | -5.17 | 28.98 | -48.20 | 102.63 | 0.7632 | 583.0 | 524.0 | |
| 0.00 | 1.62 | 0.00 | 1.24 | -4.68 | 28.94 | -48.25 | 101.99 | 0.7624 | 606.0 | 546.2 | |
| 0.00 | 0.72 | 0.00 | 0.58 | -5.94 | 26.25 | -50.94 | 102.80 | 0.7942 | 278.0 | 287.8 | |
| 0.00 | 0.99 | 0.00 | 0.85 | -6.15 | 23.97 | -53.22 | 102.42 | 0.8176 | -535.0 | -505.4 | |
| 0.00 | 0.99 | 0.00 | 0.89 | -6.69 | 22.20 | -54.98 | 102.60 | 0.8356 | -456.0 | -315.5 | |
| 3.51 | 6.58 | 3.16 | 5.92 | -7.05 | 22.09 | -55.10 | 102.98 | 0.8374 | -449.6 | -347.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
