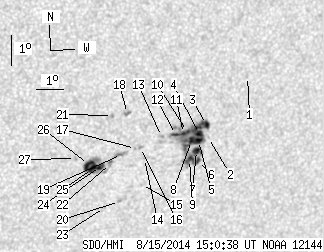

SDO HMI 2014-08-15 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.94 | 142.35 | 28.50 | 88.27 | -17.78 | 105.29 | 28.11 | 228.19 | 0.6038 | 145.7 | 357.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 1.02 | -15.60 | 107.97 | 30.79 | 233.64 | 0.6144 | 625.0 | 399.1 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -17.54 | 106.88 | 29.69 | 230.08 | 0.6180 | -194.0 | -165.2 | |
| 3.51 | 88.04 | 2.20 | 55.05 | -17.10 | 106.72 | 29.54 | 230.51 | 0.6128 | 750.2 | 716.2 | |
| 3.42 | -3.00 | 2.14 | -3.00 | -17.38 | 106.52 | 29.33 | 229.94 | 0.6130 | 924.7 | 999999 | |
| 4.78 | -3.00 | 2.99 | -3.00 | -17.62 | 106.52 | 29.34 | 229.64 | 0.6150 | 886.3 | 999999 | |
| 1.89 | -3.00 | 1.19 | -3.00 | -18.29 | 106.61 | 29.42 | 228.86 | 0.6215 | 501.5 | 999999 | |
| 3.96 | -3.00 | 2.49 | -3.00 | -17.95 | 106.51 | 29.32 | 229.20 | 0.6176 | 856.8 | 999999 | |
| 3.78 | -3.00 | 2.37 | -3.00 | -17.60 | 106.26 | 29.08 | 229.42 | 0.6122 | 922.4 | 999999 | |
| 4.60 | -3.00 | 2.89 | -3.00 | -18.23 | 106.30 | 29.12 | 228.64 | 0.6180 | 752.1 | 999999 | |
| 1.44 | -3.00 | 0.90 | -3.00 | -17.29 | 106.06 | 28.88 | 229.63 | 0.6074 | 1020.0 | 999999 | |
| 1.53 | -3.00 | 0.95 | -3.00 | -17.35 | 105.93 | 28.74 | 229.43 | 0.6065 | 1072.5 | 999999 | |
| 1.71 | -3.00 | 1.06 | -3.00 | -17.36 | 105.64 | 28.45 | 229.12 | 0.6036 | 1031.7 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.17 | -17.40 | 105.14 | 27.95 | 228.58 | 0.5987 | 733.0 | 559.8 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -18.10 | 104.65 | 27.46 | 227.17 | 0.5998 | -402.0 | -271.8 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -18.97 | 104.69 | 27.50 | 226.11 | 0.6082 | 456.0 | 501.7 | |
| 0.00 | 1.80 | 0.00 | 1.11 | -17.72 | 104.44 | 27.25 | 227.45 | 0.5943 | -678.0 | -515.8 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -17.75 | 104.26 | 27.08 | 227.24 | 0.5927 | -522.0 | -347.2 | |
| 0.00 | 2.88 | 0.00 | 1.75 | -16.56 | 103.79 | 26.61 | 228.31 | 0.5771 | -702.0 | -623.2 | |
| 0.00 | 5.41 | 0.00 | 3.31 | -17.92 | 103.79 | 26.60 | 226.52 | 0.5894 | -738.0 | -504.5 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -19.51 | 103.99 | 26.80 | 224.73 | 0.6062 | 538.0 | 445.8 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -16.60 | 103.27 | 26.08 | 227.70 | 0.5718 | -763.0 | -567.2 | |
| 0.00 | 2.97 | 0.00 | 1.82 | -18.20 | 103.44 | 26.26 | 225.79 | 0.5885 | -395.0 | -316.2 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -19.68 | 103.48 | 26.29 | 223.98 | 0.6028 | 632.0 | 508.1 | |
| 3.42 | 28.92 | 2.09 | 17.62 | -18.28 | 103.10 | 25.91 | 225.31 | 0.5858 | -781.9 | -80.7 | |
| 5.77 | -24.00 | 3.51 | -24.00 | -18.33 | 102.82 | 25.64 | 224.94 | 0.5836 | -882.9 | 999999 | |
| 6.13 | -24.00 | 3.72 | -24.00 | -18.19 | 102.66 | 25.47 | 224.94 | 0.5806 | -873.9 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -17.97 | 102.16 | 24.98 | 224.68 | 0.5734 | -814.0 | -600.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
