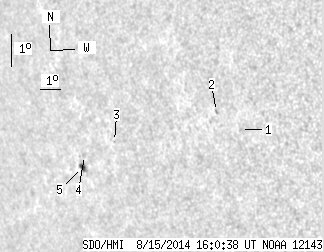

SDO HMI 2014-08-15 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.70 | 9.64 | 2.40 | 8.16 | -6.44 | 23.97 | -52.66 | 102.93 | 0.8115 | -106.8 | -38.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.93 | -5.16 | 30.02 | -46.61 | 103.11 | 0.7454 | 677.0 | 547.9 | |
| 0.00 | 1.35 | 0.00 | 1.02 | -4.69 | 28.99 | -47.64 | 102.18 | 0.7557 | 655.0 | 586.7 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -6.07 | 23.95 | -52.69 | 102.47 | 0.8122 | -588.0 | -572.3 | |
| 0.00 | 1.62 | 0.00 | 1.43 | -6.66 | 22.30 | -54.33 | 102.73 | 0.8294 | -141.0 | -203.5 | |
| 2.70 | 5.14 | 2.40 | 4.55 | -7.05 | 22.13 | -54.50 | 103.14 | 0.8319 | -536.2 | -420.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
