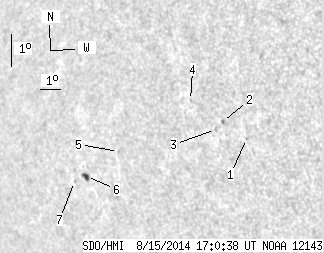

SDO HMI 2014-08-15 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.70 | 11.43 | 2.36 | 9.40 | -6.16 | 24.71 | -51.37 | 102.94 | 0.7977 | 16.1 | 70.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 17:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.73 | -5.14 | 30.05 | -46.03 | 103.27 | 0.7387 | 584.0 | 513.0 | |
| 0.00 | 1.62 | 0.00 | 1.21 | -4.70 | 29.03 | -47.05 | 102.37 | 0.7492 | 716.0 | 589.1 | |
| 0.00 | 1.35 | 0.00 | 1.01 | -4.98 | 28.68 | -47.40 | 102.63 | 0.7537 | 506.0 | 436.5 | |
| 0.00 | 0.63 | 0.00 | 0.48 | -4.17 | 27.62 | -48.46 | 101.28 | 0.7635 | 541.0 | 466.3 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -6.08 | 23.95 | -52.13 | 102.63 | 0.8066 | -638.0 | -563.4 | |
| 2.70 | 4.77 | 2.36 | 4.18 | -7.02 | 22.17 | -53.91 | 103.27 | 0.8262 | -517.1 | -321.7 | |
| 0.00 | 1.17 | 0.00 | 1.04 | -7.24 | 21.49 | -54.59 | 103.35 | 0.8331 | -354.0 | -238.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
