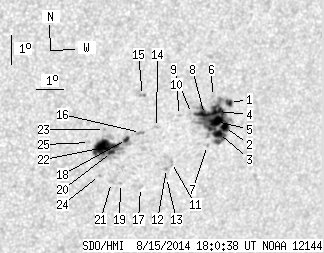

SDO HMI 2014-08-15 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.83 | 184.37 | 43.31 | 116.23 | -17.86 | 105.11 | 29.59 | 229.49 | 0.6201 | 195.8 | 358.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 18:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.24 | 101.07 | 2.07 | 64.48 | -17.01 | 107.00 | 31.47 | 232.35 | 0.6328 | 808.8 | 639.9 | |
| 5.95 | -1.00 | 3.82 | -1.00 | -17.84 | 106.97 | 31.45 | 231.26 | 0.6389 | 767.1 | 999999 | |
| 5.86 | -1.00 | 3.76 | -1.00 | -18.02 | 106.78 | 31.26 | 230.86 | 0.6385 | 881.8 | 999999 | |
| 8.47 | -1.00 | 5.39 | -1.00 | -17.28 | 106.60 | 31.08 | 231.66 | 0.6307 | 1049.6 | 999999 | |
| 9.73 | -1.00 | 6.21 | -1.00 | -17.62 | 106.63 | 31.10 | 231.25 | 0.6336 | 1065.2 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -16.77 | 106.32 | 30.80 | 232.08 | 0.6237 | 157.0 | 153.6 | |
| 0.00 | 1.35 | 0.00 | 0.87 | -18.40 | 106.45 | 30.92 | 230.08 | 0.6380 | 716.0 | 594.9 | |
| 6.40 | -1.00 | 4.05 | -1.00 | -17.35 | 106.13 | 30.61 | 231.15 | 0.6263 | 1128.7 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.80 | -17.29 | 105.64 | 30.12 | 230.79 | 0.6206 | 618.0 | 543.9 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -17.33 | 105.21 | 29.68 | 230.34 | 0.6163 | 370.0 | 328.3 | |
| 0.00 | 1.98 | 0.00 | 1.26 | -18.89 | 105.21 | 29.68 | 228.33 | 0.6294 | 740.0 | 576.0 | |
| 0.00 | 1.71 | 0.00 | 1.09 | -19.08 | 105.06 | 29.53 | 227.96 | 0.6295 | 632.0 | 619.2 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -19.39 | 105.12 | 29.59 | 227.63 | 0.6327 | 800.0 | 629.2 | |
| 0.00 | 1.53 | 0.00 | 0.96 | -17.68 | 104.43 | 28.90 | 229.14 | 0.6111 | -615.0 | -469.5 | |
| 0.00 | 2.43 | 0.00 | 1.50 | -16.58 | 103.74 | 28.21 | 229.92 | 0.5944 | -597.0 | -565.1 | |
| 0.00 | 2.52 | 0.00 | 1.57 | -17.81 | 103.87 | 28.35 | 228.43 | 0.6064 | -671.0 | -538.8 | |
| 0.00 | 1.89 | 0.00 | 1.20 | -19.67 | 104.21 | 28.69 | 226.42 | 0.6262 | 607.0 | 432.4 | |
| 2.52 | 59.54 | 1.56 | 36.79 | -18.01 | 103.40 | 27.87 | 227.69 | 0.6034 | -694.1 | -42.8 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -19.49 | 103.45 | 27.92 | 225.89 | 0.6171 | 765.0 | 596.1 | |
| 3.06 | -18.00 | 1.90 | -18.00 | -18.42 | 102.93 | 27.40 | 226.70 | 0.6022 | -562.7 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.41 | -19.44 | 103.11 | 27.58 | 225.61 | 0.6133 | 359.0 | 328.4 | |
| 23.60 | -18.00 | 14.55 | -18.00 | -18.24 | 102.64 | 27.12 | 226.64 | 0.5977 | -952.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -17.63 | 102.54 | 27.02 | 227.31 | 0.5912 | -762.0 | -648.4 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -19.17 | 102.63 | 27.10 | 225.44 | 0.6061 | 587.0 | 487.2 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -18.04 | 102.07 | 26.55 | 226.29 | 0.5901 | -852.0 | -717.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
