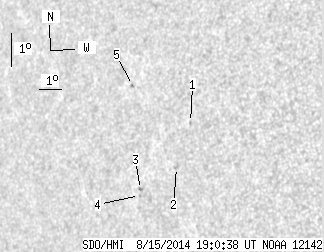

SDO HMI 2014-08-15 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.48 | 0.00 | 4.65 | 7.19 | 28.29 | -46.68 | 86.41 | 0.7256 | -583.6 | -493.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.63 | 8.27 | 29.70 | -45.28 | 84.95 | 0.7082 | -458.0 | -491.7 | |
| 0.00 | 1.89 | 0.00 | 1.33 | 6.87 | 29.27 | -45.70 | 86.92 | 0.7139 | -691.0 | -477.4 | |
| 0.00 | 1.53 | 0.00 | 1.11 | 6.07 | 27.76 | -47.21 | 87.91 | 0.7325 | -679.0 | -545.4 | |
| 0.00 | 0.90 | 0.00 | 0.65 | 5.88 | 27.74 | -47.24 | 88.16 | 0.7330 | -482.0 | -401.7 | |
| 0.00 | 1.26 | 0.00 | 0.93 | 9.18 | 26.94 | -48.03 | 83.64 | 0.7408 | -608.0 | -521.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
