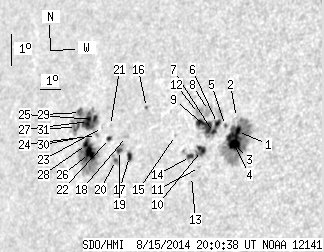

SDO HMI 2014-08-15 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.96 | 282.36 | 70.47 | 221.54 | 16.15 | 23.37 | -51.05 | 74.52 | 0.7762 | 23.4 | -43.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.86 | 84.31 | 3.55 | 61.44 | 16.64 | 27.12 | -47.30 | 73.46 | 0.7368 | -960.5 | -483.3 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 17.07 | 26.93 | -47.48 | 72.92 | 0.7394 | -264.0 | -252.9 | |
| 11.26 | -1.00 | 8.21 | -1.00 | 16.27 | 27.10 | -47.32 | 73.97 | 0.7365 | -1022.7 | 999999 | |
| 3.96 | -1.00 | 2.91 | -1.00 | 16.47 | 26.85 | -47.57 | 73.74 | 0.7396 | -658.9 | 999999 | |
| 0.45 | 1.35 | 0.33 | 1.00 | 16.78 | 26.51 | -47.91 | 73.37 | 0.7438 | -573.8 | -458.0 | |
| 2.79 | 33.60 | 2.08 | 25.14 | 16.81 | 26.12 | -48.30 | 73.38 | 0.7482 | -625.2 | -377.6 | |
| 2.07 | -6.00 | 1.54 | -6.00 | 16.52 | 26.02 | -48.40 | 73.78 | 0.7489 | -786.3 | 999999 | |
| 0.00 | 6.94 | 0.00 | 5.22 | 17.17 | 25.56 | -48.86 | 72.98 | 0.7548 | -42.0 | -26.1 | |
| 11.08 | -6.00 | 8.33 | -6.00 | 16.70 | 25.53 | -48.89 | 73.61 | 0.7545 | -704.4 | 999999 | |
| 5.04 | 10.99 | 3.78 | 8.24 | 15.93 | 25.64 | -48.78 | 74.61 | 0.7524 | -771.6 | -544.0 | |
| 0.00 | 1.17 | 0.00 | 0.88 | 15.41 | 25.71 | -48.71 | 75.30 | 0.7511 | -594.0 | -491.2 | |
| 0.00 | 7.84 | 0.00 | 5.94 | 17.04 | 25.12 | -49.30 | 73.21 | 0.7594 | 185.0 | 36.3 | |
| 0.00 | 0.81 | 0.00 | 0.61 | 15.10 | 25.42 | -49.00 | 75.74 | 0.7540 | -510.0 | -363.8 | |
| 2.43 | 6.12 | 1.84 | 4.64 | 15.70 | 25.18 | -49.23 | 74.96 | 0.7572 | -499.3 | -300.5 | |
| 0.00 | 0.90 | 0.00 | 0.69 | 16.28 | 24.25 | -50.16 | 74.31 | 0.7679 | -380.0 | -275.6 | |
| 0.36 | 1.35 | 0.29 | 1.08 | 17.00 | 22.52 | -51.90 | 73.57 | 0.7868 | 456.0 | 396.7 | |
| 2.79 | 4.86 | 2.24 | 3.90 | 15.45 | 22.22 | -52.20 | 75.57 | 0.7886 | 741.6 | 536.0 | |
| 0.00 | 2.16 | 0.00 | 1.75 | 16.04 | 21.85 | -52.57 | 74.86 | 0.7929 | 296.0 | 235.2 | |
| 1.89 | 5.85 | 1.54 | 4.75 | 15.58 | 21.65 | -52.77 | 75.45 | 0.7946 | 807.7 | 635.1 | |
| 0.90 | 5.04 | 0.73 | 4.11 | 15.26 | 21.56 | -52.86 | 75.85 | 0.7953 | 712.7 | 552.4 | |
| 0.00 | 0.72 | 0.00 | 0.60 | 16.29 | 20.90 | -53.52 | 74.61 | 0.8026 | 534.0 | 455.8 | |
| 1.62 | 2.97 | 1.34 | 2.45 | 15.90 | 21.00 | -53.41 | 75.10 | 0.8013 | 636.8 | 492.4 | |
| 0.00 | 0.27 | 0.00 | 0.23 | 16.20 | 20.51 | -53.91 | 74.76 | 0.8065 | 546.0 | 544.0 | |
| 0.00 | 1.71 | 0.00 | 1.43 | 15.93 | 20.29 | -54.12 | 75.11 | 0.8084 | 752.0 | 665.2 | |
| 4.14 | 46.12 | 3.49 | 39.38 | 16.40 | 19.99 | -54.42 | 74.55 | 0.8117 | 829.5 | 276.8 | |
| 10.27 | 54.31 | 8.62 | 45.60 | 15.35 | 20.14 | -54.28 | 75.84 | 0.8097 | 903.4 | 363.9 | |
| 12.70 | -25.00 | 10.79 | -25.00 | 16.31 | 19.70 | -54.72 | 74.68 | 0.8145 | 765.5 | 999999 | |
| 3.69 | -26.00 | 3.12 | -26.00 | 15.61 | 19.88 | -54.54 | 75.54 | 0.8124 | 569.3 | 999999 | |
| 2.88 | -25.00 | 2.48 | -25.00 | 16.54 | 19.16 | -55.26 | 74.44 | 0.8198 | 381.7 | 999999 | |
| 0.00 | 2.34 | 0.00 | 2.00 | 15.79 | 19.47 | -54.94 | 75.34 | 0.8164 | 362.0 | 175.0 | |
| 3.78 | -25.00 | 3.26 | -25.00 | 16.10 | 19.12 | -55.29 | 74.98 | 0.8199 | 379.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
