SDO HMI 2014-08-15 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.69 | 542.37 | 61.80 | 285.46 | 13.73 | 54.96 | -18.35 | 66.86 | 0.3330 | -152.9 | 15.3 | |
|
previous
or next observation for the same group /

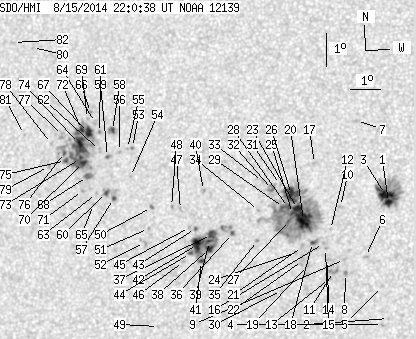

back to the solar disc SDO HMI 2014-08-15 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.23 | 56.21 | 2.17 | 28.82 | 13.75 | 60.14 | -13.17 | 60.32 | 0.2559 | -1235.5 | -589.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 10.22 | 60.31 | -13.00 | 73.71 | 0.2317 | -791.0 | -509.6 | |
| 8.74 | -1.00 | 4.48 | -1.00 | 14.00 | 60.03 | -13.28 | 59.67 | 0.2594 | -1359.5 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 10.03 | 60.13 | -13.18 | 74.68 | 0.2339 | -812.0 | -670.9 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 11.19 | 60.08 | -13.23 | 70.02 | 0.2400 | -737.0 | -597.6 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 12.09 | 59.49 | -13.82 | 67.33 | 0.2542 | -826.0 | -710.9 | |
| 0.00 | 2.70 | 0.00 | 1.40 | 16.24 | 58.95 | -14.37 | 54.55 | 0.2937 | -858.0 | -499.0 | |
| 0.00 | 2.25 | 0.00 | 1.16 | 11.55 | 58.88 | -14.43 | 70.06 | 0.2609 | -1045.0 | -918.8 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 11.98 | 58.83 | -14.48 | 68.58 | 0.2640 | -927.0 | -740.7 | |
| 0.00 | 1.80 | 0.00 | 0.93 | 13.59 | 58.61 | -14.71 | 63.31 | 0.2774 | -874.0 | -672.2 | |
| 0.00 | 5.13 | 0.00 | 2.64 | 11.60 | 58.50 | -14.82 | 70.31 | 0.2672 | -865.0 | -912.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 12.88 | 58.33 | -14.98 | 66.06 | 0.2770 | -755.0 | -572.5 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 11.39 | 58.38 | -14.93 | 71.21 | 0.2680 | -797.0 | -636.8 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 11.93 | 58.29 | -15.03 | 69.38 | 0.2722 | -961.0 | -838.4 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 12.30 | 58.20 | -15.11 | 68.21 | 0.2755 | -1042.0 | -829.3 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 12.45 | 58.13 | -15.18 | 67.78 | 0.2775 | -918.0 | -738.3 | |
| 0.00 | 1.44 | 0.00 | 0.75 | 14.88 | 57.68 | -15.64 | 60.59 | 0.3004 | -612.0 | -591.4 | |
| 0.90 | 4.50 | 0.47 | 2.33 | 12.47 | 57.77 | -15.54 | 68.13 | 0.2831 | -1039.7 | -912.6 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 11.76 | 57.65 | -15.66 | 70.64 | 0.2813 | -885.0 | -675.7 | |
| 21.53 | 192.23 | 11.15 | 99.73 | 13.13 | 57.44 | -15.87 | 66.35 | 0.2921 | -1321.6 | -382.1 | |
| 0.00 | 2.25 | 0.00 | 1.16 | 12.34 | 57.46 | -15.86 | 68.92 | 0.2873 | -713.0 | -653.2 | |
| 0.00 | 7.12 | 0.00 | 3.68 | 11.91 | 57.48 | -15.83 | 70.32 | 0.2847 | -397.0 | -593.2 | |
| 6.22 | -20.00 | 3.22 | -20.00 | 13.49 | 57.22 | -16.09 | 65.46 | 0.2976 | -1247.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 12.15 | 57.24 | -16.07 | 69.77 | 0.2897 | -809.0 | -636.6 | |
| 2.07 | -20.00 | 1.08 | -20.00 | 13.33 | 57.07 | -16.24 | 66.14 | 0.2989 | -963.7 | 999999 | |
| 15.85 | -20.00 | 8.24 | -20.00 | 13.91 | 57.00 | -16.32 | 64.43 | 0.3036 | -1038.1 | 999999 | |
| 1.71 | -20.00 | 0.89 | -20.00 | 13.12 | 56.99 | -16.33 | 66.92 | 0.2989 | -491.6 | 999999 | |
| 1.80 | -20.00 | 0.94 | -20.00 | 13.51 | 56.93 | -16.39 | 65.75 | 0.3022 | -998.8 | 999999 | |
| 1.89 | -20.00 | 0.98 | -20.00 | 13.51 | 56.76 | -16.55 | 65.95 | 0.3046 | -774.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 10.98 | 56.86 | -16.45 | 74.02 | 0.2905 | -681.0 | -430.1 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 14.21 | 56.62 | -16.70 | 64.01 | 0.3112 | -842.0 | -606.1 | |
| 0.63 | 5.86 | 0.33 | 3.05 | 14.04 | 56.37 | -16.95 | 64.79 | 0.3139 | -1011.6 | -732.5 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 14.28 | 56.02 | -17.29 | 64.51 | 0.3205 | -690.0 | -564.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 13.39 | 55.96 | -17.36 | 67.20 | 0.3162 | -543.0 | -382.6 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 12.47 | 55.99 | -17.32 | 69.95 | 0.3109 | 962.0 | 751.1 | |
| 0.90 | 9.73 | 0.47 | 5.10 | 12.66 | 55.16 | -18.15 | 70.13 | 0.3246 | 1193.6 | 918.7 | |
| 4.68 | 56.03 | 2.46 | 29.47 | 12.60 | 54.47 | -18.84 | 70.87 | 0.3350 | 1008.7 | 210.2 | |
| 4.32 | -37.00 | 2.27 | -37.00 | 12.18 | 54.44 | -18.87 | 72.14 | 0.3336 | 1105.8 | 999999 | |
| 1.80 | -37.00 | 0.95 | -37.00 | 12.39 | 54.42 | -18.89 | 71.53 | 0.3348 | 821.0 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.38 | 13.94 | 54.10 | -19.21 | 67.44 | 0.3473 | -837.0 | -642.1 | |
| 1.98 | -37.00 | 1.04 | -37.00 | 11.77 | 54.21 | -19.11 | 73.48 | 0.3357 | 980.9 | 999999 | |
| 11.08 | -37.00 | 5.83 | -37.00 | 12.28 | 54.04 | -19.27 | 72.12 | 0.3404 | -898.7 | 999999 | |
| 0.63 | 1.71 | 0.33 | 0.90 | 12.77 | 53.93 | -19.38 | 70.83 | 0.3441 | 993.7 | 742.5 | |
| 0.99 | -37.00 | 0.52 | -37.00 | 12.00 | 53.83 | -19.48 | 73.08 | 0.3425 | -905.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 12.79 | 53.73 | -19.58 | 70.92 | 0.3473 | 848.0 | 659.5 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 11.75 | 53.62 | -19.70 | 73.93 | 0.3449 | 927.0 | 697.2 | |
| 0.00 | 1.98 | 0.00 | 1.05 | 13.33 | 53.39 | -19.92 | 69.71 | 0.3550 | 640.0 | 396.8 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 13.41 | 53.09 | -20.23 | 69.73 | 0.3600 | 824.0 | 634.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 9.74 | 52.93 | -20.38 | 79.98 | 0.3501 | 709.0 | 567.1 | |
| 0.00 | 1.71 | 0.00 | 0.91 | 13.35 | 52.42 | -20.89 | 70.38 | 0.3699 | 943.0 | 748.2 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 12.71 | 52.38 | -20.93 | 72.10 | 0.3678 | 1017.0 | 806.0 | |
| 0.00 | 3.33 | 0.00 | 1.77 | 12.28 | 52.28 | -21.03 | 73.31 | 0.3676 | 892.0 | 592.6 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 15.16 | 51.61 | -21.70 | 66.46 | 0.3910 | 801.0 | 685.1 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 14.27 | 51.63 | -21.68 | 68.63 | 0.3861 | 944.0 | 745.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 15.12 | 51.44 | -21.87 | 66.69 | 0.3932 | 709.0 | 548.7 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 15.02 | 51.18 | -22.13 | 67.14 | 0.3965 | 922.0 | 764.3 | |
| 1.17 | 5.58 | 0.63 | 3.00 | 13.58 | 51.13 | -22.18 | 70.71 | 0.3905 | 931.7 | 692.2 | |
| 2.25 | 5.13 | 1.22 | 2.78 | 15.65 | 50.87 | -22.44 | 65.89 | 0.4044 | 1016.6 | 778.2 | |
| 0.54 | 2.52 | 0.29 | 1.36 | 14.85 | 50.79 | -22.52 | 67.85 | 0.4014 | 1080.0 | 862.7 | |
| 1.62 | 4.14 | 0.87 | 2.23 | 13.75 | 50.87 | -22.44 | 70.45 | 0.3951 | 1089.1 | 848.7 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 15.57 | 50.44 | -22.87 | 66.42 | 0.4103 | 975.0 | 817.3 | |
| 0.00 | 1.98 | 0.00 | 1.07 | 15.02 | 50.50 | -22.81 | 67.65 | 0.4065 | 1060.0 | 844.6 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 13.70 | 50.54 | -22.77 | 70.78 | 0.3999 | 752.0 | 669.4 | |
| 0.00 | 3.06 | 0.00 | 1.67 | 15.87 | 50.27 | -23.05 | 65.86 | 0.4144 | 771.0 | 637.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 13.36 | 50.47 | -22.84 | 71.64 | 0.3996 | 804.0 | 628.6 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 16.17 | 50.06 | -23.25 | 65.34 | 0.4190 | 761.0 | 676.9 | |
| 5.40 | 102.96 | 2.94 | 56.07 | 15.56 | 50.06 | -23.25 | 66.74 | 0.4156 | 1132.1 | 785.9 | |
| 1.98 | 5.13 | 1.07 | 2.78 | 14.21 | 50.18 | -23.13 | 69.80 | 0.4075 | 1031.3 | 841.0 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 15.99 | 49.98 | -23.33 | 65.83 | 0.4191 | 576.0 | 444.7 | |
| 2.97 | -67.00 | 1.61 | -67.00 | 14.63 | 50.00 | -23.31 | 68.92 | 0.4121 | 1167.6 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 13.78 | 50.06 | -23.25 | 70.91 | 0.4075 | 841.0 | 673.9 | |
| 1.98 | -67.00 | 1.08 | -67.00 | 15.64 | 49.81 | -23.50 | 66.74 | 0.4197 | 1039.2 | 999999 | |
| 1.44 | -67.00 | 0.78 | -67.00 | 14.75 | 49.88 | -23.43 | 68.73 | 0.4144 | 1330.9 | 999999 | |
| 3.96 | -67.00 | 2.16 | -67.00 | 15.21 | 49.80 | -23.52 | 67.74 | 0.4178 | 1301.5 | 999999 | |
| 1.53 | -67.00 | 0.84 | -67.00 | 14.67 | 49.38 | -23.93 | 69.26 | 0.4214 | 822.4 | 999999 | |
| 0.90 | -67.00 | 0.49 | -67.00 | 14.91 | 49.32 | -24.00 | 68.74 | 0.4234 | 850.7 | 999999 | |
| 0.00 | 4.95 | 0.00 | 2.71 | 15.43 | 49.18 | -24.13 | 67.67 | 0.4278 | 399.0 | 308.7 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 15.16 | 48.84 | -24.48 | 68.48 | 0.4316 | 552.0 | 491.0 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 14.46 | 48.82 | -24.49 | 70.08 | 0.4288 | 820.0 | 612.2 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 18.08 | 47.77 | -25.54 | 63.04 | 0.4618 | 716.0 | 548.2 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 15.40 | 47.87 | -25.44 | 68.58 | 0.4467 | 606.0 | 445.4 | |
| 0.00 | 2.16 | 0.00 | 1.21 | 18.20 | 47.07 | -26.24 | 63.30 | 0.4720 | 836.0 | 532.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
