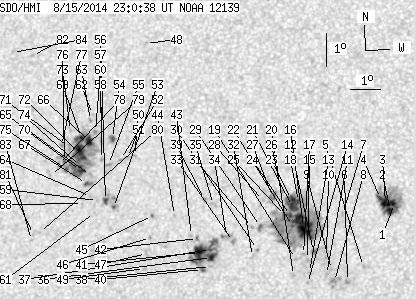

SDO HMI 2014-08-15 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.45 | 523.04 | 67.35 | 274.56 | 13.75 | 54.90 | -17.86 | 66.28 | 0.3258 | -45.7 | 18.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-15 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.41 | 53.33 | 2.26 | 27.29 | 13.99 | 60.28 | -12.48 | 58.24 | 0.2477 | -1352.7 | -473.8 | |
| 6.49 | -1.00 | 3.32 | -1.00 | 13.77 | 60.16 | -12.60 | 59.23 | 0.2476 | -1128.8 | 999999 | |
| 8.29 | -1.00 | 4.24 | -1.00 | 14.01 | 59.99 | -12.77 | 58.71 | 0.2521 | -1248.1 | 999999 | |
| 3.15 | -1.00 | 1.62 | -1.00 | 14.13 | 59.82 | -12.94 | 58.61 | 0.2554 | -901.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 12.04 | 59.39 | -13.37 | 66.90 | 0.2469 | -880.0 | -780.6 | |
| 0.00 | 2.34 | 0.00 | 1.20 | 11.57 | 58.90 | -13.86 | 69.33 | 0.2519 | -1039.0 | -887.0 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 13.61 | 58.63 | -14.13 | 62.40 | 0.2689 | -896.0 | -707.5 | |
| 0.00 | 8.56 | 0.00 | 4.39 | 11.56 | 58.49 | -14.27 | 69.86 | 0.2584 | -1057.0 | -812.9 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 11.92 | 58.37 | -14.39 | 68.67 | 0.2621 | -884.0 | -747.3 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 12.28 | 58.19 | -14.57 | 67.60 | 0.2670 | -1029.0 | -835.5 | |
| 0.00 | 2.07 | 0.00 | 1.06 | 11.77 | 58.22 | -14.54 | 69.42 | 0.2636 | -853.0 | -631.4 | |
| 0.81 | 4.86 | 0.42 | 2.50 | 12.46 | 57.77 | -14.99 | 67.54 | 0.2746 | -1088.9 | -846.2 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 11.81 | 57.68 | -15.08 | 69.88 | 0.2725 | -833.0 | -640.6 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 11.48 | 57.63 | -15.13 | 71.12 | 0.2716 | -716.0 | -669.5 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 12.21 | 57.59 | -15.17 | 68.61 | 0.2759 | -861.0 | -668.7 | |
| 30.27 | 191.34 | 15.64 | 98.99 | 13.21 | 57.40 | -15.36 | 65.47 | 0.2847 | -1286.5 | -414.9 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 12.35 | 57.45 | -15.31 | 68.26 | 0.2789 | -864.0 | -672.5 | |
| 2.43 | -16.00 | 1.26 | -16.00 | 13.97 | 57.19 | -15.57 | 63.32 | 0.2929 | -1075.3 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 12.23 | 57.20 | -15.56 | 68.98 | 0.2821 | -744.0 | -653.6 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 11.71 | 57.17 | -15.59 | 70.78 | 0.2800 | -828.0 | -438.9 | |
| 7.57 | -16.00 | 3.92 | -16.00 | 13.81 | 57.00 | -15.76 | 64.06 | 0.2946 | -1140.3 | 999999 | |
| 1.08 | -16.00 | 0.56 | -16.00 | 13.23 | 57.04 | -15.72 | 65.85 | 0.2903 | -761.2 | 999999 | |
| 5.59 | -16.00 | 2.90 | -16.00 | 14.02 | 56.96 | -15.80 | 63.45 | 0.2967 | -931.4 | 999999 | |
| 1.71 | -16.00 | 0.89 | -16.00 | 13.53 | 56.96 | -15.80 | 64.99 | 0.2935 | -978.9 | 999999 | |
| 1.53 | -16.00 | 0.79 | -16.00 | 13.53 | 56.79 | -15.97 | 65.20 | 0.2959 | -837.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 14.26 | 56.61 | -16.15 | 63.18 | 0.3033 | -721.0 | -612.6 | |
| 0.00 | 7.30 | 0.00 | 3.80 | 14.09 | 56.33 | -16.43 | 64.03 | 0.3064 | -729.0 | -714.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 13.96 | 56.05 | -16.71 | 64.77 | 0.3099 | -541.0 | -450.6 | |
| 0.63 | 3.06 | 0.33 | 1.59 | 13.17 | 56.01 | -16.75 | 67.24 | 0.3057 | 1101.4 | 801.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 12.46 | 55.96 | -16.80 | 69.50 | 0.3027 | 841.0 | 711.6 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 13.13 | 55.75 | -17.01 | 67.64 | 0.3094 | 970.0 | 758.2 | |
| 0.00 | 2.25 | 0.00 | 1.17 | 12.24 | 55.81 | -16.95 | 70.33 | 0.3039 | 813.0 | 638.8 | |
| 0.00 | 2.52 | 0.00 | 1.32 | 12.68 | 55.16 | -17.60 | 69.58 | 0.3161 | 1138.0 | 975.9 | |
| 0.00 | 5.68 | 0.00 | 2.97 | 12.83 | 54.92 | -17.84 | 69.37 | 0.3206 | 1040.0 | 909.2 | |
| 0.00 | 2.70 | 0.00 | 1.42 | 13.79 | 54.42 | -18.34 | 67.05 | 0.3333 | -569.0 | -618.7 | |
| 4.32 | 50.99 | 2.26 | 26.73 | 12.17 | 54.48 | -18.28 | 71.71 | 0.3244 | 1084.3 | 263.4 | |
| 0.90 | -36.00 | 0.47 | -36.00 | 12.41 | 54.43 | -18.33 | 71.03 | 0.3262 | 913.5 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 11.89 | 54.46 | -18.30 | 72.55 | 0.3234 | 733.0 | 575.1 | |
| 0.00 | 1.89 | 0.00 | 1.00 | 13.93 | 54.11 | -18.65 | 66.95 | 0.3387 | -891.0 | -708.0 | |
| 1.08 | -36.00 | 0.57 | -36.00 | 11.79 | 54.21 | -18.55 | 73.04 | 0.3270 | 1009.1 | 999999 | |
| 12.07 | -36.00 | 6.34 | -36.00 | 12.31 | 54.07 | -18.69 | 71.62 | 0.3313 | -821.4 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 12.73 | 53.98 | -18.78 | 70.47 | 0.3347 | 984.0 | 845.7 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 12.82 | 53.77 | -18.99 | 70.39 | 0.3382 | 783.0 | 584.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 13.41 | 53.16 | -19.60 | 69.25 | 0.3504 | 806.0 | 660.6 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 13.38 | 52.44 | -20.32 | 69.90 | 0.3614 | 933.0 | 756.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 12.70 | 52.43 | -20.33 | 71.72 | 0.3585 | 878.0 | 743.2 | |
| 0.00 | 2.97 | 0.00 | 1.58 | 12.21 | 52.33 | -20.43 | 73.12 | 0.3580 | 830.0 | 599.5 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 18.65 | 51.63 | -21.13 | 57.84 | 0.4051 | 793.0 | 633.2 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 11.75 | 52.30 | -20.46 | 74.40 | 0.3568 | 736.0 | 491.9 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 15.19 | 51.66 | -21.10 | 65.90 | 0.3822 | 880.0 | 619.0 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 15.12 | 51.43 | -21.33 | 66.27 | 0.3852 | 748.0 | 585.0 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 15.05 | 51.20 | -21.56 | 66.63 | 0.3882 | 807.0 | 667.4 | |
| 0.72 | 13.51 | 0.39 | 7.25 | 13.57 | 51.11 | -21.65 | 70.37 | 0.3823 | 956.2 | 708.1 | |
| 1.62 | 4.23 | 0.87 | 2.28 | 15.68 | 50.86 | -21.90 | 65.39 | 0.3966 | 1059.6 | 798.5 | |
| 0.00 | 2.79 | 0.00 | 1.50 | 14.88 | 50.81 | -21.95 | 67.35 | 0.3930 | 1089.0 | 815.5 | |
| 1.98 | -53.00 | 1.06 | -53.00 | 13.77 | 50.83 | -21.93 | 70.06 | 0.3876 | 1100.4 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 15.02 | 50.56 | -22.20 | 67.21 | 0.3975 | 992.0 | 759.1 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 15.57 | 50.50 | -22.26 | 65.95 | 0.4013 | 924.0 | 678.8 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 13.76 | 50.56 | -22.20 | 70.27 | 0.3916 | 789.0 | 488.1 | |
| 0.00 | 1.98 | 0.00 | 1.07 | 15.87 | 50.26 | -22.50 | 65.44 | 0.4064 | 854.0 | 763.1 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 13.39 | 50.49 | -22.27 | 71.23 | 0.3910 | 721.0 | 579.5 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 16.39 | 50.10 | -22.66 | 64.39 | 0.4117 | 596.0 | 517.5 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 16.20 | 50.05 | -22.71 | 64.85 | 0.4113 | 857.0 | 629.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 13.87 | 50.31 | -22.45 | 70.16 | 0.3958 | 848.0 | 669.5 | |
| 0.00 | 2.43 | 0.00 | 1.31 | 14.52 | 50.24 | -22.52 | 68.66 | 0.3997 | 958.0 | 807.7 | |
| 5.32 | 94.41 | 2.88 | 51.20 | 15.55 | 50.09 | -22.67 | 66.31 | 0.4071 | 1173.6 | 698.9 | |
| 1.17 | 5.22 | 0.63 | 2.82 | 14.27 | 50.13 | -22.63 | 69.33 | 0.4002 | 1008.7 | 855.2 | |
| 0.00 | 0.63 | 0.00 | 0.34 | 13.65 | 50.06 | -22.70 | 70.87 | 0.3986 | 705.0 | 577.0 | |
| 2.16 | -66.00 | 1.17 | -66.00 | 15.67 | 49.81 | -22.95 | 66.28 | 0.4119 | 993.3 | 999999 | |
| 3.60 | -66.00 | 1.95 | -66.00 | 14.65 | 49.89 | -22.87 | 68.58 | 0.4057 | 1186.4 | 999999 | |
| 1.17 | -66.00 | 0.63 | -66.00 | 14.78 | 49.87 | -22.89 | 68.30 | 0.4064 | 1337.9 | 999999 | |
| 16.13 | -66.00 | 8.75 | -66.00 | 15.17 | 49.80 | -22.96 | 67.43 | 0.4095 | 1199.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 15.86 | 49.41 | -23.35 | 66.13 | 0.4187 | 569.0 | 435.0 | |
| 0.00 | 2.07 | 0.00 | 1.13 | 15.34 | 49.43 | -23.33 | 67.30 | 0.4157 | 683.0 | 553.9 | |
| 1.26 | -66.00 | 0.69 | -66.00 | 14.66 | 49.41 | -23.35 | 68.89 | 0.4128 | 883.4 | 999999 | |
| 0.99 | -66.00 | 0.54 | -66.00 | 14.91 | 49.31 | -23.45 | 68.39 | 0.4153 | 860.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 15.39 | 49.15 | -23.61 | 67.39 | 0.4200 | 661.0 | 505.9 | |
| 0.00 | 2.07 | 0.00 | 1.13 | 14.80 | 49.12 | -23.64 | 68.76 | 0.4177 | 607.0 | 511.3 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 14.46 | 48.88 | -23.88 | 69.71 | 0.4196 | 783.0 | 675.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 12.70 | 48.69 | -24.07 | 73.91 | 0.4158 | 836.0 | 648.3 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 12.63 | 48.50 | -24.26 | 74.17 | 0.4185 | 720.0 | 592.3 | |
| 0.00 | 1.71 | 0.00 | 0.95 | 18.11 | 47.78 | -24.98 | 62.55 | 0.4542 | 711.0 | 524.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 12.45 | 48.45 | -24.31 | 74.63 | 0.4187 | 639.0 | 502.3 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 18.17 | 47.06 | -25.70 | 62.98 | 0.4644 | 624.0 | 465.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
