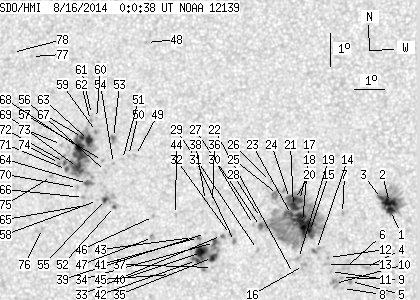

SDO HMI 2014-08-16 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.18 | 520.59 | 62.19 | 272.20 | 13.73 | 55.04 | -17.17 | 65.57 | 0.3152 | -111.9 | -2.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-16 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.40 | 52.53 | 3.26 | 26.82 | 13.76 | 60.12 | -12.08 | 58.31 | 0.2401 | -1088.7 | -516.0 | |
| 12.70 | -1.00 | 6.49 | -1.00 | 14.00 | 60.08 | -12.13 | 57.52 | 0.2428 | -1287.3 | 999999 | |
| 2.25 | -1.00 | 1.15 | -1.00 | 14.12 | 59.82 | -12.39 | 57.63 | 0.2475 | -932.8 | 999999 | |
| 0.00 | 3.60 | 0.00 | 1.84 | 12.00 | 59.41 | -12.79 | 66.23 | 0.2377 | -946.0 | -755.9 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 11.56 | 58.96 | -13.25 | 68.61 | 0.2423 | -1114.0 | -905.1 | |
| 0.00 | 3.60 | 0.00 | 1.84 | 11.98 | 58.78 | -13.43 | 67.22 | 0.2475 | -767.0 | -727.4 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 13.63 | 58.59 | -13.61 | 61.54 | 0.2614 | -955.0 | -798.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 11.34 | 58.71 | -13.50 | 69.78 | 0.2449 | -726.0 | -528.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 11.67 | 58.67 | -13.54 | 68.55 | 0.2475 | -1065.0 | -851.3 | |
| 0.00 | 6.40 | 0.00 | 3.27 | 11.49 | 58.45 | -13.76 | 69.54 | 0.2498 | -701.0 | -788.1 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 11.85 | 58.31 | -13.90 | 68.36 | 0.2541 | -826.0 | -713.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 12.27 | 58.22 | -13.99 | 66.91 | 0.2579 | -978.0 | -860.2 | |
| 0.00 | 2.61 | 0.00 | 1.34 | 12.06 | 58.17 | -14.04 | 67.76 | 0.2575 | -801.0 | -655.1 | |
| 0.00 | 4.78 | 0.00 | 2.45 | 12.51 | 57.82 | -14.39 | 66.60 | 0.2655 | -1056.0 | -921.2 | |
| 4.87 | 200.10 | 2.50 | 103.29 | 13.05 | 57.57 | -14.64 | 65.07 | 0.2728 | -1369.4 | -382.6 | |
| 0.00 | 3.87 | 0.00 | 1.99 | 12.01 | 57.43 | -14.78 | 68.85 | 0.2687 | -761.0 | -720.5 | |
| 24.78 | -15.00 | 12.77 | -15.00 | 13.32 | 57.32 | -14.88 | 64.49 | 0.2782 | -1256.2 | 999999 | |
| 2.34 | -15.00 | 1.21 | -15.00 | 13.99 | 57.18 | -15.02 | 62.50 | 0.2848 | -1081.0 | 999999 | |
| 0.00 | 3.24 | 0.00 | 1.67 | 12.22 | 57.26 | -14.95 | 68.32 | 0.2725 | -850.0 | -670.8 | |
| 3.42 | -15.00 | 1.77 | -15.00 | 14.01 | 57.02 | -15.19 | 62.65 | 0.2874 | -1002.0 | 999999 | |
| 7.48 | -15.00 | 3.86 | -15.00 | 13.80 | 57.00 | -15.21 | 63.37 | 0.2862 | -1136.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 11.75 | 57.13 | -15.08 | 70.09 | 0.2722 | -640.0 | -495.6 | |
| 1.44 | -15.00 | 0.74 | -15.00 | 13.55 | 56.95 | -15.25 | 64.23 | 0.2853 | -957.8 | 999999 | |
| 2.43 | -15.00 | 1.26 | -15.00 | 14.04 | 56.86 | -15.35 | 62.80 | 0.2900 | -807.8 | 999999 | |
| 0.00 | 8.92 | 0.00 | 4.63 | 14.15 | 56.46 | -15.75 | 63.00 | 0.2967 | -926.0 | -704.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 14.54 | 56.20 | -16.01 | 62.15 | 0.3032 | -796.0 | -507.0 | |
| 1.35 | -15.00 | 0.70 | -15.00 | 13.16 | 55.97 | -16.23 | 66.71 | 0.2977 | 1060.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 13.43 | 55.96 | -16.25 | 65.87 | 0.2996 | -389.0 | -271.9 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 12.45 | 55.92 | -16.29 | 69.02 | 0.2946 | 862.0 | 682.4 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 13.21 | 55.74 | -16.46 | 66.80 | 0.3015 | 757.0 | 664.2 | |
| 0.00 | 2.34 | 0.00 | 1.22 | 12.67 | 55.16 | -17.05 | 69.09 | 0.3075 | 1210.0 | 962.1 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 12.88 | 55.02 | -17.19 | 68.59 | 0.3108 | 1065.0 | 864.4 | |
| 0.36 | 1.89 | 0.19 | 0.99 | 12.84 | 54.73 | -17.48 | 69.00 | 0.3151 | 954.0 | 901.3 | |
| 2.34 | 54.15 | 1.22 | 28.30 | 12.62 | 54.51 | -17.69 | 69.87 | 0.3173 | 989.6 | 247.3 | |
| 4.41 | -34.00 | 2.30 | -34.00 | 12.16 | 54.48 | -17.73 | 71.29 | 0.3157 | 982.1 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 13.84 | 54.36 | -17.85 | 66.42 | 0.3262 | -828.0 | -601.8 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 11.86 | 54.50 | -17.71 | 72.21 | 0.3140 | 785.0 | 601.5 | |
| 0.00 | 1.89 | 0.00 | 0.99 | 13.89 | 54.12 | -18.09 | 66.51 | 0.3300 | -839.0 | -662.7 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 12.88 | 54.20 | -18.01 | 69.36 | 0.3234 | 649.0 | 530.6 | |
| 11.08 | -34.00 | 5.80 | -34.00 | 12.30 | 54.11 | -18.10 | 71.18 | 0.3220 | -828.3 | 999999 | |
| 0.54 | -34.00 | 0.28 | -34.00 | 12.75 | 53.98 | -18.23 | 69.94 | 0.3262 | 1042.2 | 999999 | |
| 2.43 | -34.00 | 1.27 | -34.00 | 12.05 | 53.97 | -18.24 | 72.04 | 0.3232 | -988.9 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 12.75 | 53.78 | -18.42 | 70.13 | 0.3292 | 592.0 | 454.6 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 13.43 | 53.17 | -19.04 | 68.72 | 0.3420 | 772.0 | 493.1 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 11.60 | 53.15 | -19.06 | 73.99 | 0.3343 | 833.0 | 603.0 | |
| 0.00 | 1.44 | 0.00 | 0.76 | 13.34 | 52.45 | -19.76 | 69.56 | 0.3525 | 897.0 | 636.7 | |
| 0.00 | 2.88 | 0.00 | 1.52 | 12.70 | 52.47 | -19.74 | 71.31 | 0.3493 | 1022.0 | 844.2 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 18.68 | 51.66 | -20.55 | 57.15 | 0.3975 | 813.0 | 683.5 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 15.18 | 51.68 | -20.53 | 65.41 | 0.3738 | 750.0 | 533.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 15.17 | 51.45 | -20.76 | 65.64 | 0.3772 | 567.0 | 491.2 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 15.04 | 51.26 | -20.95 | 66.13 | 0.3792 | 820.0 | 628.5 | |
| 0.63 | 13.51 | 0.34 | 7.23 | 13.60 | 51.13 | -21.08 | 69.91 | 0.3738 | 737.7 | 730.4 | |
| 0.90 | 3.69 | 0.48 | 1.98 | 15.71 | 50.88 | -21.33 | 64.84 | 0.3884 | 1070.2 | 858.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 14.91 | 50.97 | -21.24 | 66.72 | 0.3828 | 997.0 | 838.6 | |
| 1.89 | -52.00 | 1.01 | -52.00 | 13.80 | 50.81 | -21.40 | 69.63 | 0.3796 | 1113.5 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 14.65 | 50.72 | -21.48 | 67.55 | 0.3850 | 865.0 | 712.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 14.99 | 50.59 | -21.62 | 66.84 | 0.3888 | 960.0 | 781.0 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 13.76 | 50.54 | -21.67 | 69.92 | 0.3834 | 807.0 | 633.5 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 15.87 | 50.29 | -21.92 | 64.98 | 0.3980 | 866.0 | 742.9 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 16.27 | 50.24 | -21.97 | 64.08 | 0.4009 | 765.0 | 580.3 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 16.38 | 50.06 | -22.15 | 63.97 | 0.4043 | 569.0 | 458.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 16.20 | 50.05 | -22.16 | 64.41 | 0.4034 | 857.0 | 749.5 | |
| 5.50 | 99.11 | 2.97 | 53.53 | 15.58 | 50.05 | -22.16 | 65.85 | 0.3999 | 1135.5 | 790.1 | |
| 1.89 | -63.00 | 1.02 | -63.00 | 14.26 | 50.16 | -22.05 | 68.94 | 0.3916 | 1044.3 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.26 | 13.59 | 50.12 | -22.09 | 70.64 | 0.3890 | 571.0 | 510.7 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 13.83 | 50.06 | -22.14 | 70.08 | 0.3910 | 835.0 | 686.8 | |
| 2.07 | -63.00 | 1.12 | -63.00 | 15.66 | 49.83 | -22.37 | 65.83 | 0.4034 | 1016.0 | 999999 | |
| 5.05 | -63.00 | 2.73 | -63.00 | 15.35 | 49.73 | -22.47 | 66.65 | 0.4032 | 1161.2 | 999999 | |
| 8.29 | -63.00 | 4.48 | -63.00 | 14.74 | 49.77 | -22.44 | 68.08 | 0.3996 | 1155.0 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 14.13 | 49.83 | -22.38 | 69.51 | 0.3958 | 627.0 | 480.7 | |
| 1.26 | -63.00 | 0.68 | -63.00 | 14.66 | 49.40 | -22.81 | 68.53 | 0.4047 | 862.5 | 999999 | |
| 1.08 | -63.00 | 0.59 | -63.00 | 14.87 | 49.31 | -22.90 | 68.09 | 0.4070 | 845.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 15.42 | 49.15 | -23.06 | 66.94 | 0.4122 | 558.0 | 471.5 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 14.83 | 49.14 | -23.07 | 68.30 | 0.4093 | 592.0 | 497.5 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 14.42 | 48.92 | -23.29 | 69.42 | 0.4108 | 859.0 | 691.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 12.82 | 48.77 | -23.43 | 73.31 | 0.4065 | 768.0 | 579.7 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 18.08 | 47.76 | -24.45 | 62.21 | 0.4467 | 660.0 | 522.6 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 18.17 | 47.07 | -25.14 | 62.56 | 0.4566 | 618.0 | 441.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
