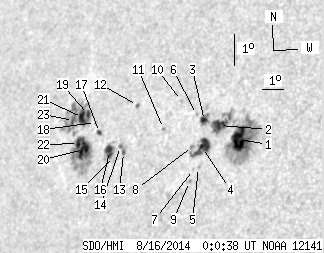

SDO HMI 2014-08-16 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.71 | 308.11 | 67.23 | 231.30 | 16.13 | 23.35 | -48.86 | 74.31 | 0.7525 | -89.4 | -61.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-16 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.17 | 139.29 | 14.85 | 98.04 | 16.31 | 27.16 | -45.04 | 73.59 | 0.7103 | -975.9 | -454.6 | |
| 11.89 | -1.00 | 8.49 | -1.00 | 16.67 | 26.19 | -46.01 | 73.25 | 0.7221 | -754.9 | 999999 | |
| 3.60 | -1.00 | 2.61 | -1.00 | 16.77 | 25.47 | -46.74 | 73.23 | 0.7305 | -544.8 | 999999 | |
| 14.14 | 20.45 | 10.18 | 14.73 | 15.94 | 25.64 | -46.57 | 74.34 | 0.7276 | -723.4 | -392.0 | |
| 0.00 | 0.90 | 0.00 | 0.65 | 15.32 | 25.63 | -46.57 | 75.19 | 0.7268 | -661.0 | -529.6 | |
| 0.00 | 1.17 | 0.00 | 0.85 | 16.92 | 25.05 | -47.16 | 73.09 | 0.7355 | -300.0 | -153.2 | |
| 0.00 | 0.99 | 0.00 | 0.72 | 15.24 | 25.43 | -46.78 | 75.32 | 0.7291 | -385.0 | -356.1 | |
| 0.00 | 1.17 | 0.00 | 0.85 | 15.93 | 25.17 | -47.03 | 74.41 | 0.7328 | -310.0 | -266.0 | |
| 0.00 | 1.80 | 0.00 | 1.30 | 14.86 | 25.35 | -46.86 | 75.85 | 0.7296 | -638.0 | -500.6 | |
| 0.00 | 1.17 | 0.00 | 0.87 | 17.29 | 24.22 | -47.99 | 72.72 | 0.7453 | -449.0 | -363.7 | |
| 0.00 | 1.26 | 0.00 | 0.94 | 16.37 | 23.67 | -48.54 | 74.02 | 0.7503 | -469.0 | -323.1 | |
| 0.72 | 1.98 | 0.55 | 1.52 | 16.96 | 22.19 | -50.02 | 73.42 | 0.7670 | 631.2 | 499.1 | |
| 0.99 | 5.77 | 0.76 | 4.44 | 15.48 | 22.01 | -50.20 | 75.37 | 0.7674 | 583.3 | 527.0 | |
| 0.63 | -13.00 | 0.49 | -13.00 | 15.65 | 21.81 | -50.40 | 75.17 | 0.7698 | 728.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.84 | 15.32 | 21.57 | -50.64 | 75.62 | 0.7721 | 663.0 | 572.2 | |
| 7.03 | 13.33 | 5.48 | 10.41 | 15.45 | 21.32 | -50.88 | 75.47 | 0.7748 | 781.3 | 468.8 | |
| 1.71 | 2.97 | 1.36 | 2.35 | 15.98 | 20.63 | -51.58 | 74.85 | 0.7825 | 748.4 | 608.5 | |
| 0.00 | 0.99 | 0.00 | 0.79 | 16.27 | 20.32 | -51.89 | 74.52 | 0.7860 | 749.0 | 655.9 | |
| 2.79 | 55.23 | 2.25 | 45.03 | 16.48 | 19.88 | -52.33 | 74.29 | 0.7907 | 778.2 | 251.0 | |
| 9.82 | 58.56 | 7.87 | 46.97 | 15.40 | 20.02 | -52.19 | 75.65 | 0.7885 | 934.7 | 340.9 | |
| 8.56 | -19.00 | 6.93 | -19.00 | 16.36 | 19.61 | -52.60 | 74.47 | 0.7933 | 831.4 | 999999 | |
| 4.50 | -20.00 | 3.64 | -20.00 | 15.56 | 19.70 | -52.51 | 75.47 | 0.7918 | 460.9 | 999999 | |
| 2.16 | -19.00 | 1.77 | -19.00 | 16.23 | 19.19 | -53.02 | 74.67 | 0.7975 | 484.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
