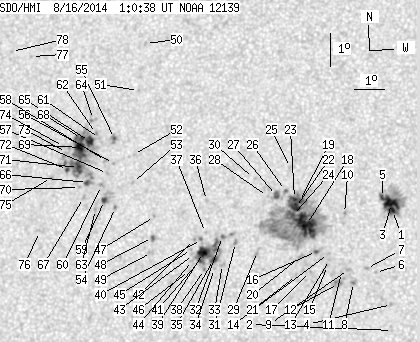

SDO HMI 2014-08-16 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.64 | 513.42 | 57.56 | 267.69 | 13.74 | 55.12 | -16.53 | 64.79 | 0.3057 | -151.1 | 23.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-16 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.86 | 50.64 | 2.98 | 25.80 | 13.77 | 60.15 | -11.51 | 57.07 | 0.2320 | -1077.4 | -464.7 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 10.12 | 60.30 | -11.36 | 72.27 | 0.2045 | -712.0 | -619.5 | |
| 14.33 | -1.00 | 7.30 | -1.00 | 13.98 | 60.10 | -11.55 | 56.37 | 0.2345 | -1245.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 10.91 | 60.24 | -11.42 | 68.71 | 0.2096 | -816.0 | -663.8 | |
| 2.16 | -1.00 | 1.10 | -1.00 | 14.16 | 59.81 | -11.85 | 56.37 | 0.2402 | -889.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 11.87 | 59.69 | -11.96 | 65.44 | 0.2241 | -884.0 | -613.4 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 11.98 | 59.40 | -12.26 | 65.45 | 0.2293 | -962.0 | -822.7 | |
| 0.00 | 2.34 | 0.00 | 1.19 | 11.55 | 59.01 | -12.65 | 67.83 | 0.2327 | -1049.0 | -840.0 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 11.94 | 58.83 | -12.83 | 66.52 | 0.2378 | -1006.0 | -833.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 13.64 | 58.62 | -13.04 | 60.51 | 0.2530 | -879.0 | -727.3 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 11.84 | 58.61 | -13.04 | 67.22 | 0.2406 | -718.0 | -643.9 | |
| 0.00 | 8.02 | 0.00 | 4.09 | 11.51 | 58.53 | -13.12 | 68.66 | 0.2399 | -913.0 | -815.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 12.23 | 58.21 | -13.45 | 66.32 | 0.2492 | -1034.0 | -797.5 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 12.41 | 58.17 | -13.49 | 65.70 | 0.2510 | -777.0 | -683.0 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 12.04 | 58.16 | -13.50 | 67.09 | 0.2490 | -871.0 | -751.4 | |
| 0.63 | 1.62 | 0.32 | 0.83 | 12.46 | 57.78 | -13.87 | 66.07 | 0.2573 | -1112.3 | -1019.0 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 11.85 | 57.62 | -14.03 | 68.54 | 0.2561 | -886.0 | -702.2 | |
| 30.28 | 207.69 | 15.56 | 106.96 | 13.28 | 57.42 | -14.24 | 63.72 | 0.2682 | -1274.8 | -350.2 | |
| 3.15 | -18.00 | 1.63 | -18.00 | 13.97 | 57.15 | -14.51 | 61.79 | 0.2771 | -1051.4 | 999999 | |
| 0.00 | 3.78 | 0.00 | 1.94 | 12.26 | 57.25 | -14.41 | 67.50 | 0.2643 | -949.0 | -686.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 11.71 | 57.18 | -14.47 | 69.56 | 0.2623 | -551.0 | -490.0 | |
| 5.86 | -18.00 | 3.02 | -18.00 | 13.79 | 57.03 | -14.63 | 62.58 | 0.2775 | -1131.6 | 999999 | |
| 1.35 | -18.00 | 0.70 | -18.00 | 14.06 | 56.98 | -14.68 | 61.76 | 0.2802 | -1002.0 | 999999 | |
| 2.34 | -18.00 | 1.21 | -18.00 | 13.54 | 56.95 | -14.71 | 63.52 | 0.2770 | -922.5 | 999999 | |
| 0.00 | 1.89 | 0.00 | 0.98 | 15.01 | 56.79 | -14.87 | 59.09 | 0.2902 | -528.0 | -449.4 | |
| 0.36 | 9.64 | 0.19 | 4.99 | 14.30 | 56.68 | -14.98 | 61.46 | 0.2864 | -808.0 | -689.6 | |
| 2.61 | -26.00 | 1.35 | -26.00 | 14.14 | 56.39 | -15.26 | 62.38 | 0.2894 | -883.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 14.10 | 56.10 | -15.55 | 62.90 | 0.2934 | -576.0 | -482.6 | |
| 0.00 | 3.33 | 0.00 | 1.72 | 12.41 | 55.89 | -15.77 | 68.61 | 0.2863 | 845.0 | 661.3 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 14.63 | 55.61 | -16.05 | 61.93 | 0.3044 | -461.0 | -429.0 | |
| 0.00 | 2.43 | 0.00 | 1.26 | 12.66 | 55.16 | -16.50 | 68.57 | 0.2989 | 1087.0 | 878.2 | |
| 0.54 | 4.51 | 0.28 | 2.34 | 12.83 | 54.73 | -16.93 | 68.49 | 0.3065 | 1020.5 | 807.2 | |
| 0.00 | 2.61 | 0.00 | 1.36 | 11.98 | 54.78 | -16.87 | 71.13 | 0.3014 | 856.0 | 735.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 11.85 | 54.53 | -17.13 | 71.76 | 0.3048 | 782.0 | 569.0 | |
| 3.06 | 37.39 | 1.59 | 19.48 | 12.12 | 54.48 | -17.18 | 70.94 | 0.3068 | 1027.6 | 305.2 | |
| 0.00 | 1.80 | 0.00 | 0.94 | 13.91 | 54.13 | -17.53 | 65.87 | 0.3218 | -824.0 | -623.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 12.94 | 54.17 | -17.49 | 68.73 | 0.3157 | 688.0 | 463.1 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 11.81 | 54.21 | -17.45 | 72.16 | 0.3097 | 789.0 | 679.9 | |
| 8.47 | -35.00 | 4.42 | -35.00 | 12.32 | 54.14 | -17.51 | 70.62 | 0.3130 | -907.6 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.22 | 12.72 | 54.05 | -17.61 | 69.50 | 0.3164 | 991.0 | 715.8 | |
| 1.44 | -35.00 | 0.75 | -35.00 | 12.08 | 54.03 | -17.63 | 71.48 | 0.3137 | -1066.8 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 12.71 | 53.82 | -17.83 | 69.73 | 0.3199 | 816.0 | 667.5 | |
| 0.00 | 3.42 | 0.00 | 1.79 | 12.25 | 53.82 | -17.84 | 71.11 | 0.3177 | -449.0 | -549.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 12.07 | 53.80 | -17.86 | 71.69 | 0.3172 | -548.0 | -378.2 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 12.40 | 53.75 | -17.91 | 70.72 | 0.3196 | -590.0 | -487.7 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 11.76 | 53.73 | -17.93 | 72.69 | 0.3171 | 765.0 | 663.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 13.37 | 52.46 | -19.20 | 69.04 | 0.3441 | 860.0 | 652.6 | |
| 0.81 | 2.25 | 0.43 | 1.19 | 12.72 | 52.44 | -19.21 | 70.86 | 0.3413 | 1048.7 | 800.8 | |
| 0.00 | 2.70 | 0.00 | 1.42 | 12.26 | 52.45 | -19.21 | 72.16 | 0.3393 | 293.0 | 402.4 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 18.67 | 51.62 | -20.04 | 56.58 | 0.3906 | 806.0 | 643.9 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 17.21 | 51.55 | -20.11 | 60.03 | 0.3807 | 774.0 | 582.9 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 15.24 | 51.59 | -20.07 | 64.85 | 0.3673 | 725.0 | 566.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 14.38 | 51.64 | -20.02 | 67.03 | 0.3617 | 904.0 | 655.0 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 13.59 | 51.14 | -20.51 | 69.50 | 0.3652 | 881.0 | 724.8 | |
| 0.81 | 5.14 | 0.43 | 2.75 | 15.70 | 50.91 | -20.75 | 64.34 | 0.3801 | 1042.1 | 718.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 14.93 | 50.95 | -20.71 | 66.20 | 0.3750 | 894.0 | 728.3 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 14.62 | 50.78 | -20.88 | 67.14 | 0.3758 | 872.0 | 704.4 | |
| 0.00 | 2.25 | 0.00 | 1.21 | 15.02 | 50.67 | -20.99 | 66.24 | 0.3795 | 925.0 | 730.3 | |
| 2.07 | 9.64 | 1.11 | 5.14 | 13.79 | 50.76 | -20.90 | 69.28 | 0.3720 | 1144.0 | 837.8 | |
| 0.00 | 1.89 | 0.00 | 1.01 | 14.25 | 50.61 | -21.04 | 68.23 | 0.3764 | 938.0 | 854.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 15.68 | 50.40 | -21.26 | 64.85 | 0.3873 | 733.0 | 561.8 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 15.83 | 50.28 | -21.38 | 64.59 | 0.3899 | 886.0 | 783.9 | |
| 0.00 | 2.16 | 0.00 | 1.15 | 13.50 | 50.48 | -21.17 | 70.22 | 0.3748 | 899.0 | 730.5 | |
| 0.00 | 2.43 | 0.00 | 1.31 | 16.26 | 50.13 | -21.53 | 63.71 | 0.3945 | 690.0 | 669.7 | |
| 5.77 | 91.82 | 3.10 | 49.41 | 15.58 | 50.07 | -21.58 | 65.39 | 0.3914 | 1151.1 | 770.4 | |
| 1.89 | -65.00 | 1.01 | -65.00 | 14.32 | 50.14 | -21.52 | 68.42 | 0.3839 | 1016.0 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 13.85 | 50.05 | -21.61 | 69.64 | 0.3830 | 712.0 | 576.6 | |
| 2.52 | -65.00 | 1.36 | -65.00 | 15.66 | 49.79 | -21.87 | 65.43 | 0.3960 | 1058.2 | 999999 | |
| 7.03 | -65.00 | 3.79 | -65.00 | 15.38 | 49.79 | -21.87 | 66.10 | 0.3945 | 1222.6 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 14.15 | 49.88 | -21.77 | 69.01 | 0.3869 | 643.0 | 550.6 | |
| 6.04 | -65.00 | 3.25 | -65.00 | 14.76 | 49.79 | -21.87 | 67.59 | 0.3913 | 1212.1 | 999999 | |
| 1.26 | -65.00 | 0.68 | -65.00 | 14.69 | 49.42 | -22.24 | 68.05 | 0.3963 | 863.9 | 999999 | |
| 0.00 | 4.69 | 0.00 | 2.53 | 15.21 | 49.33 | -22.33 | 66.88 | 0.4003 | 569.0 | 565.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 15.39 | 49.21 | -22.45 | 66.55 | 0.4030 | 661.0 | 557.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 14.42 | 48.91 | -22.75 | 69.06 | 0.4027 | 904.0 | 798.5 | |
| 0.00 | 2.34 | 0.00 | 1.26 | 12.76 | 48.67 | -22.99 | 73.24 | 0.3995 | 790.0 | 676.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 18.11 | 47.76 | -23.90 | 61.69 | 0.4392 | 674.0 | 550.0 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 18.23 | 47.04 | -24.62 | 62.03 | 0.4499 | 819.0 | 539.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
