SDO HMI 2014-08-16 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.90 | 0.00 | 7.23 | -5.23 | 26.10 | -45.56 | 103.64 | 0.7323 | 127.6 | 160.9 | |
|
previous
or next observation for the same group /

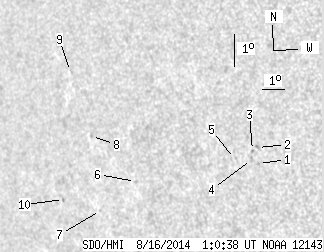

back to the solar disc SDO HMI 2014-08-16 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.62 | -5.14 | 29.50 | -42.16 | 104.66 | 0.6933 | 596.0 | 526.2 | |
| 0.00 | 1.62 | 0.00 | 1.11 | -4.64 | 29.50 | -42.16 | 103.97 | 0.6917 | 710.0 | 480.2 | |
| 0.00 | 1.26 | 0.00 | 0.87 | -4.75 | 29.28 | -42.38 | 104.04 | 0.6947 | 692.0 | 594.4 | |
| 0.00 | 1.62 | 0.00 | 1.12 | -5.03 | 29.22 | -42.44 | 104.42 | 0.6964 | 687.0 | 491.9 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -5.06 | 28.51 | -43.15 | 104.19 | 0.7050 | 372.0 | 409.0 | |
| 0.00 | 1.17 | 0.00 | 0.89 | -6.14 | 24.08 | -47.58 | 104.11 | 0.7591 | -686.0 | -598.4 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -7.20 | 22.31 | -49.34 | 104.87 | 0.7810 | -426.0 | -408.0 | |
| 0.00 | 1.17 | 0.00 | 0.92 | -4.92 | 22.18 | -49.48 | 101.97 | 0.7764 | -493.0 | -384.6 | |
| 0.00 | 0.54 | 0.00 | 0.43 | -2.99 | 21.35 | -50.31 | 99.32 | 0.7810 | -456.0 | -400.0 | |
| 0.00 | 0.99 | 0.00 | 0.81 | -7.02 | 20.56 | -51.10 | 104.10 | 0.7986 | 280.0 | 343.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
