SDO HMI 2014-08-16 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.47 | 535.50 | 62.53 | 278.44 | 13.72 | 55.11 | -16.00 | 64.15 | 0.2976 | -160.8 | -4.3 | |
|
previous
or next observation for the same group /

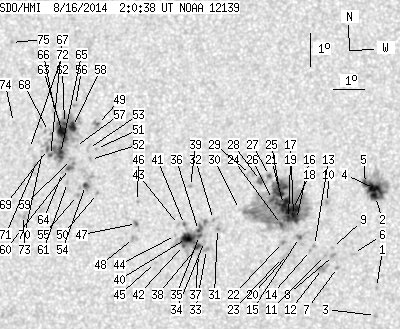

back to the solar disc SDO HMI 2014-08-16 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.59 | 10.99 | 60.28 | -10.83 | 67.37 | 0.2007 | -913.0 | -698.3 | |
| 5.50 | 50.01 | 2.79 | 25.44 | 13.76 | 60.13 | -10.97 | 55.92 | 0.2242 | -1099.9 | -498.6 | |
| 0.00 | 2.07 | 0.00 | 1.05 | 10.13 | 60.28 | -10.83 | 71.46 | 0.1960 | -801.0 | -695.8 | |
| 13.07 | -2.00 | 6.65 | -2.00 | 14.00 | 60.09 | -11.02 | 55.11 | 0.2271 | -1262.0 | 999999 | |
| 2.16 | -2.00 | 1.10 | -2.00 | 14.15 | 59.80 | -11.31 | 55.24 | 0.2325 | -866.0 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 12.01 | 59.51 | -11.59 | 64.23 | 0.2193 | -906.0 | -722.3 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 11.57 | 59.03 | -12.08 | 66.89 | 0.2240 | -1099.0 | -886.4 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 11.93 | 58.88 | -12.23 | 65.63 | 0.2285 | -1035.0 | -941.8 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 12.17 | 58.84 | -12.27 | 64.72 | 0.2307 | -813.0 | -643.3 | |
| 0.00 | 2.34 | 0.00 | 1.20 | 13.54 | 58.61 | -12.49 | 59.90 | 0.2442 | -1034.0 | -778.8 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 11.92 | 58.63 | -12.48 | 66.06 | 0.2324 | -969.0 | -797.2 | |
| 0.00 | 7.30 | 0.00 | 3.72 | 11.53 | 58.55 | -12.56 | 67.79 | 0.2311 | -1003.0 | -852.0 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 12.22 | 58.27 | -12.84 | 65.46 | 0.2399 | -918.0 | -807.5 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 12.07 | 58.15 | -12.96 | 66.25 | 0.2407 | -905.0 | -729.0 | |
| 0.54 | 3.60 | 0.28 | 1.84 | 12.45 | 57.78 | -13.33 | 65.33 | 0.2489 | -1155.7 | -919.8 | |
| 2.43 | 222.68 | 1.25 | 114.41 | 13.00 | 57.65 | -13.46 | 63.52 | 0.2545 | -1159.8 | -319.7 | |
| 4.78 | -16.00 | 2.45 | -16.00 | 13.12 | 57.55 | -13.56 | 63.25 | 0.2569 | -1424.8 | 999999 | |
| 9.73 | -16.00 | 4.99 | -16.00 | 13.30 | 57.51 | -13.60 | 62.68 | 0.2588 | -1393.9 | 999999 | |
| 3.97 | -16.00 | 2.03 | -16.00 | 13.02 | 57.39 | -13.72 | 63.83 | 0.2585 | -1195.1 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 11.92 | 57.42 | -13.69 | 67.82 | 0.2512 | -845.0 | -653.9 | |
| 13.34 | -16.00 | 6.85 | -16.00 | 13.45 | 57.21 | -13.90 | 62.64 | 0.2642 | -1141.2 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.34 | 12.29 | 57.24 | -13.87 | 66.72 | 0.2561 | -863.0 | -752.3 | |
| 0.00 | 2.07 | 0.00 | 1.06 | 11.83 | 57.26 | -13.84 | 68.38 | 0.2531 | -689.0 | -564.2 | |
| 1.44 | -16.00 | 0.74 | -16.00 | 12.83 | 57.18 | -13.93 | 64.83 | 0.2605 | -831.1 | 999999 | |
| 14.51 | -16.00 | 7.46 | -16.00 | 13.90 | 57.05 | -14.06 | 61.34 | 0.2699 | -1074.2 | 999999 | |
| 1.89 | -16.00 | 0.97 | -16.00 | 13.59 | 56.85 | -14.26 | 62.71 | 0.2707 | -786.4 | 999999 | |
| 0.72 | 8.74 | 0.37 | 4.51 | 14.32 | 56.70 | -14.41 | 60.52 | 0.2781 | -770.2 | -696.6 | |
| 2.16 | -27.00 | 1.12 | -27.00 | 14.16 | 56.42 | -14.69 | 61.47 | 0.2810 | -907.3 | 999999 | |
| 0.00 | 4.51 | 0.00 | 2.33 | 14.33 | 56.09 | -15.02 | 61.41 | 0.2872 | -339.0 | -483.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 13.25 | 55.80 | -15.31 | 65.28 | 0.2841 | 771.0 | 542.3 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 12.65 | 55.13 | -15.98 | 68.05 | 0.2909 | 1041.0 | 924.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 12.92 | 54.98 | -16.13 | 67.34 | 0.2947 | 1019.0 | 825.2 | |
| 0.00 | 2.52 | 0.00 | 1.31 | 12.00 | 54.81 | -16.30 | 70.51 | 0.2924 | 969.0 | 794.8 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 12.25 | 54.73 | -16.38 | 69.80 | 0.2949 | 901.0 | 684.9 | |
| 1.35 | 49.65 | 0.70 | 25.79 | 12.42 | 54.56 | -16.55 | 69.40 | 0.2985 | 1004.1 | 58.9 | |
| 0.90 | -35.00 | 0.47 | -35.00 | 12.57 | 54.52 | -16.59 | 68.96 | 0.2999 | 1019.5 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 11.84 | 54.56 | -16.55 | 71.27 | 0.2956 | 839.0 | 584.9 | |
| 2.79 | -35.00 | 1.45 | -35.00 | 12.09 | 54.52 | -16.59 | 70.53 | 0.2975 | 952.7 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 13.91 | 54.16 | -16.95 | 65.23 | 0.3129 | -859.0 | -665.8 | |
| 7.75 | -35.00 | 4.03 | -35.00 | 12.32 | 54.14 | -16.96 | 70.14 | 0.3044 | -897.9 | 999999 | |
| 0.45 | 2.34 | 0.23 | 1.22 | 12.74 | 54.05 | -17.06 | 68.90 | 0.3080 | 1020.8 | 544.0 | |
| 0.27 | -35.00 | 0.14 | -35.00 | 12.10 | 54.06 | -17.05 | 70.90 | 0.3047 | -1154.3 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 12.74 | 53.86 | -17.25 | 69.11 | 0.3110 | 767.0 | 620.9 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 12.40 | 53.78 | -17.33 | 70.23 | 0.3105 | -554.0 | -372.4 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 11.55 | 53.19 | -17.92 | 73.33 | 0.3161 | 792.0 | 600.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 13.39 | 52.46 | -18.65 | 68.48 | 0.3358 | 850.0 | 615.6 | |
| 0.81 | 1.89 | 0.43 | 0.99 | 12.72 | 52.48 | -18.63 | 70.40 | 0.3322 | 1003.7 | 794.2 | |
| 0.00 | 3.97 | 0.00 | 2.08 | 12.26 | 52.42 | -18.69 | 71.79 | 0.3311 | 726.0 | 515.9 | |
| 0.45 | 4.51 | 0.24 | 2.40 | 15.70 | 50.92 | -20.18 | 63.80 | 0.3718 | 993.4 | 804.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 13.59 | 51.12 | -19.99 | 69.10 | 0.3571 | 928.0 | 798.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 14.96 | 50.96 | -20.14 | 65.63 | 0.3668 | 911.0 | 782.7 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 14.62 | 50.80 | -20.31 | 66.67 | 0.3674 | 807.0 | 745.2 | |
| 0.00 | 2.79 | 0.00 | 1.49 | 14.95 | 50.70 | -20.41 | 65.90 | 0.3707 | 781.0 | 741.5 | |
| 2.07 | 10.18 | 1.10 | 5.41 | 13.82 | 50.70 | -20.41 | 68.83 | 0.3646 | 1188.3 | 833.5 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 13.50 | 50.46 | -20.64 | 69.84 | 0.3667 | 898.0 | 797.6 | |
| 0.00 | 1.71 | 0.00 | 0.92 | 16.25 | 50.12 | -20.99 | 63.22 | 0.3868 | 792.0 | 713.8 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 15.00 | 50.26 | -20.85 | 66.18 | 0.3775 | 779.0 | 672.0 | |
| 5.86 | 90.30 | 3.14 | 48.45 | 15.61 | 50.09 | -21.02 | 64.82 | 0.3833 | 1147.9 | 750.0 | |
| 0.00 | 2.43 | 0.00 | 1.30 | 14.59 | 50.16 | -20.95 | 67.27 | 0.3767 | 818.0 | 721.1 | |
| 1.62 | 5.23 | 0.87 | 2.79 | 14.32 | 50.12 | -20.99 | 68.01 | 0.3759 | 1038.2 | 903.9 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 13.89 | 50.09 | -21.01 | 69.13 | 0.3742 | 617.0 | 612.4 | |
| 1.98 | -58.00 | 1.06 | -58.00 | 15.69 | 49.81 | -21.30 | 64.87 | 0.3879 | 1072.5 | 999999 | |
| 10.18 | -58.00 | 5.47 | -58.00 | 15.41 | 49.77 | -21.33 | 65.58 | 0.3868 | 1238.7 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 14.18 | 49.90 | -21.21 | 68.52 | 0.3785 | 743.0 | 546.1 | |
| 5.86 | -58.00 | 3.14 | -58.00 | 14.76 | 49.77 | -21.33 | 67.17 | 0.3833 | 1186.8 | 999999 | |
| 0.00 | 3.97 | 0.00 | 2.14 | 15.98 | 49.47 | -21.63 | 64.47 | 0.3945 | 469.0 | 336.3 | |
| 0.90 | -58.00 | 0.48 | -58.00 | 14.69 | 49.44 | -21.66 | 67.62 | 0.3878 | 884.2 | 999999 | |
| 0.00 | 4.24 | 0.00 | 2.28 | 15.42 | 49.30 | -21.81 | 65.96 | 0.3938 | 195.0 | 475.4 | |
| 0.99 | -58.00 | 0.53 | -58.00 | 14.87 | 49.32 | -21.78 | 67.27 | 0.3905 | 842.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 14.80 | 49.16 | -21.95 | 67.57 | 0.3926 | 650.0 | 552.0 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 14.39 | 48.97 | -22.14 | 68.71 | 0.3935 | 887.0 | 729.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 14.87 | 48.71 | -22.40 | 67.73 | 0.3996 | 532.0 | 443.5 | |
| 0.00 | 3.88 | 0.00 | 2.08 | 12.82 | 48.72 | -22.39 | 72.76 | 0.3906 | 855.0 | 687.5 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 15.65 | 48.08 | -23.03 | 66.40 | 0.4128 | 666.0 | 575.6 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 18.10 | 47.69 | -23.42 | 61.28 | 0.4325 | 683.0 | 599.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
