SDO HMI 2014-08-16 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.26 | 0.00 | 6.81 | 7.22 | 27.72 | -41.75 | 86.76 | 0.6630 | -358.9 | -353.5 | |
|
previous
or next observation for the same group /

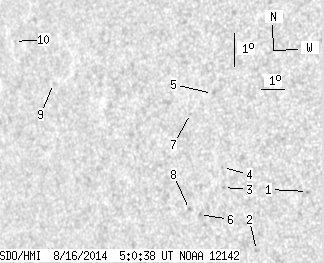

back to the solar disc SDO HMI 2014-08-16 05:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.78 | 7.04 | 32.17 | -37.30 | 87.17 | 0.6043 | -628.0 | -566.8 | |
| 0.00 | 1.71 | 0.00 | 1.09 | 5.12 | 30.34 | -39.13 | 90.14 | 0.6308 | -650.0 | -465.5 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 6.93 | 28.86 | -40.60 | 87.18 | 0.6491 | -686.0 | -553.6 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 7.53 | 28.76 | -40.71 | 86.24 | 0.6502 | -591.0 | -481.1 | |
| 0.00 | 0.63 | 0.00 | 0.41 | 9.74 | 28.06 | -41.40 | 82.85 | 0.6592 | -104.0 | -95.6 | |
| 0.00 | 1.26 | 0.00 | 0.83 | 6.04 | 27.97 | -41.49 | 88.47 | 0.6613 | -801.0 | -684.8 | |
| 0.00 | 0.72 | 0.00 | 0.48 | 9.06 | 27.25 | -42.22 | 83.88 | 0.6696 | -622.0 | -498.2 | |
| 0.00 | 1.71 | 0.00 | 1.14 | 6.16 | 27.55 | -41.91 | 88.26 | 0.6667 | -621.0 | -445.9 | |
| 0.00 | 0.90 | 0.00 | 0.67 | 9.49 | 21.16 | -48.30 | 83.25 | 0.7439 | 534.0 | 404.0 | |
| 0.00 | 0.45 | 0.00 | 0.35 | 10.59 | 19.08 | -50.38 | 81.77 | 0.7673 | 580.0 | 513.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
