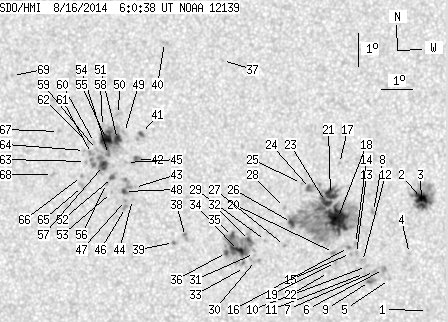

SDO HMI 2014-08-16 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.62 | 522.34 | 55.98 | 268.78 | 13.75 | 55.17 | -13.74 | 60.62 | 0.2645 | -104.8 | -80.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-16 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.41 | 10.60 | 60.39 | -8.53 | 64.54 | 0.1622 | -864.0 | -686.7 | |
| 9.56 | 46.70 | 4.83 | 23.60 | 14.02 | 60.09 | -8.83 | 49.14 | 0.1977 | -1299.4 | -592.9 | |
| 3.97 | -2.00 | 2.00 | -2.00 | 13.80 | 60.10 | -8.82 | 49.97 | 0.1953 | -1128.1 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 12.33 | 59.77 | -9.15 | 57.31 | 0.1853 | -694.0 | -478.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 11.53 | 59.17 | -9.75 | 62.63 | 0.1876 | -931.0 | -695.1 | |
| 0.00 | 3.34 | 0.00 | 1.68 | 11.83 | 58.97 | -9.95 | 61.66 | 0.1929 | -1086.0 | -952.8 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 11.76 | 58.69 | -10.23 | 62.60 | 0.1967 | -1057.0 | -806.0 | |
| 0.00 | 2.25 | 0.00 | 1.14 | 13.59 | 58.58 | -10.33 | 55.03 | 0.2137 | -872.0 | -856.2 | |
| 0.81 | 4.87 | 0.41 | 2.46 | 11.46 | 58.54 | -10.37 | 64.33 | 0.1967 | -1011.1 | -857.2 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 11.91 | 58.43 | -10.49 | 62.48 | 0.2017 | -900.0 | -748.8 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 11.70 | 58.38 | -10.54 | 63.56 | 0.2010 | -859.0 | -709.1 | |
| 0.00 | 3.70 | 0.00 | 1.87 | 12.06 | 58.30 | -10.62 | 62.09 | 0.2048 | -944.0 | -711.0 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 12.30 | 58.10 | -10.82 | 61.47 | 0.2096 | -955.0 | -780.5 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 12.60 | 58.05 | -10.86 | 60.28 | 0.2127 | -960.0 | -728.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 12.30 | 57.91 | -11.01 | 61.88 | 0.2124 | -919.0 | -848.3 | |
| 0.00 | 2.25 | 0.00 | 1.14 | 12.48 | 57.84 | -11.08 | 61.27 | 0.2149 | -1132.0 | -977.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 15.04 | 57.43 | -11.49 | 52.54 | 0.2434 | -542.0 | -487.5 | |
| 30.38 | 214.11 | 15.45 | 109.06 | 13.36 | 57.45 | -11.47 | 58.56 | 0.2277 | -1303.3 | -406.5 | |
| 0.00 | 1.53 | 0.00 | 0.78 | 12.01 | 57.45 | -11.47 | 63.99 | 0.2174 | -942.0 | -752.8 | |
| 0.00 | 2.16 | 0.00 | 1.10 | 12.32 | 57.37 | -11.55 | 62.87 | 0.2207 | -1000.0 | -874.1 | |
| 7.93 | -18.00 | 4.05 | -18.00 | 14.08 | 57.19 | -11.72 | 56.40 | 0.2377 | -1020.0 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 11.70 | 57.24 | -11.68 | 65.67 | 0.2185 | -817.0 | -589.7 | |
| 6.22 | -18.00 | 3.17 | -18.00 | 13.87 | 57.04 | -11.87 | 57.50 | 0.2379 | -1114.4 | 999999 | |
| 0.00 | 6.31 | 0.00 | 3.23 | 14.25 | 56.54 | -12.37 | 57.14 | 0.2483 | -996.0 | -840.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 14.40 | 56.24 | -12.67 | 57.22 | 0.2538 | -726.0 | -609.9 | |
| 3.25 | -18.00 | 1.66 | -18.00 | 13.20 | 55.99 | -12.93 | 61.93 | 0.2479 | 956.7 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 12.49 | 55.80 | -13.11 | 64.86 | 0.2458 | 1015.0 | 805.5 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 13.65 | 55.74 | -13.17 | 60.74 | 0.2550 | -768.0 | -493.6 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 12.63 | 55.19 | -13.73 | 65.28 | 0.2561 | 1014.0 | 683.2 | |
| 0.00 | 4.24 | 0.00 | 2.17 | 12.01 | 54.90 | -14.02 | 67.93 | 0.2567 | 940.0 | 789.3 | |
| 0.00 | 1.98 | 0.00 | 1.02 | 12.22 | 54.86 | -14.06 | 67.21 | 0.2587 | 471.0 | 450.0 | |
| 2.07 | 67.07 | 1.06 | 34.48 | 12.62 | 54.68 | -14.24 | 66.05 | 0.2638 | 1163.7 | 36.1 | |
| 0.00 | 0.36 | 0.00 | 0.18 | 11.79 | 54.56 | -14.36 | 69.17 | 0.2608 | 344.0 | 424.5 | |
| 6.31 | -32.00 | 3.24 | -32.00 | 12.30 | 54.34 | -14.58 | 67.60 | 0.2671 | -1061.5 | 999999 | |
| 2.70 | -32.00 | 1.39 | -32.00 | 12.72 | 54.12 | -14.79 | 66.41 | 0.2730 | 708.0 | 999999 | |
| 1.26 | -32.00 | 0.65 | -32.00 | 12.23 | 53.96 | -14.96 | 68.32 | 0.2727 | -857.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 18.12 | 53.40 | -15.52 | 51.53 | 0.3262 | -709.0 | -571.0 | |
| 0.00 | 3.52 | 0.00 | 1.82 | 12.68 | 52.61 | -16.31 | 68.34 | 0.2961 | 997.0 | 899.7 | |
| 0.36 | 1.44 | 0.19 | 0.75 | 12.48 | 52.23 | -16.69 | 69.35 | 0.3009 | 918.0 | 795.2 | |
| 0.00 | 2.34 | 0.00 | 1.24 | 18.61 | 51.41 | -17.50 | 53.40 | 0.3565 | 691.0 | 707.4 | |
| 1.17 | 4.33 | 0.62 | 2.28 | 15.78 | 50.92 | -17.99 | 61.20 | 0.3407 | 1031.5 | 843.9 | |
| 0.00 | 6.67 | 0.00 | 3.51 | 14.98 | 50.83 | -18.09 | 63.48 | 0.3366 | 1270.0 | 942.1 | |
| 0.00 | 1.71 | 0.00 | 0.90 | 14.12 | 50.84 | -18.08 | 65.87 | 0.3312 | 899.0 | 647.0 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 13.75 | 50.80 | -18.12 | 66.96 | 0.3296 | 887.0 | 686.1 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 14.88 | 50.51 | -18.41 | 64.12 | 0.3407 | 795.0 | 594.1 | |
| 0.00 | 2.61 | 0.00 | 1.37 | 13.50 | 50.59 | -18.33 | 67.89 | 0.3315 | 1006.0 | 845.6 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 13.71 | 50.57 | -18.34 | 67.30 | 0.3329 | 1007.0 | 773.4 | |
| 1.71 | 11.45 | 0.90 | 6.02 | 13.99 | 50.52 | -18.40 | 66.58 | 0.3352 | 1188.1 | 953.2 | |
| 0.00 | 1.89 | 0.00 | 1.00 | 15.79 | 50.36 | -18.56 | 61.84 | 0.3489 | 754.0 | 675.3 | |
| 0.00 | 2.79 | 0.00 | 1.48 | 16.34 | 50.10 | -18.81 | 60.72 | 0.3563 | 797.0 | 640.8 | |
| 6.04 | 67.61 | 3.19 | 35.78 | 15.57 | 50.15 | -18.77 | 62.66 | 0.3504 | 1194.6 | 762.3 | |
| 1.35 | 4.06 | 0.71 | 2.14 | 14.40 | 50.08 | -18.83 | 65.86 | 0.3441 | 1144.7 | 951.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 13.94 | 50.09 | -18.82 | 67.12 | 0.3414 | 685.0 | 572.2 | |
| 0.63 | -51.00 | 0.33 | -51.00 | 15.10 | 49.89 | -19.03 | 64.18 | 0.3512 | 1155.3 | 999999 | |
| 17.40 | -51.00 | 9.22 | -51.00 | 15.56 | 49.78 | -19.14 | 63.09 | 0.3557 | 1140.1 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 14.21 | 49.90 | -19.01 | 66.56 | 0.3457 | 743.0 | 661.2 | |
| 5.50 | -51.00 | 2.91 | -51.00 | 14.76 | 49.75 | -19.16 | 65.23 | 0.3511 | 1223.6 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.20 | 15.95 | 49.61 | -19.31 | 62.27 | 0.3607 | 133.0 | 160.6 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 15.24 | 49.48 | -19.44 | 64.24 | 0.3581 | 733.0 | 643.6 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 15.45 | 49.39 | -19.53 | 63.78 | 0.3607 | 573.0 | 440.7 | |
| 0.00 | 3.34 | 0.00 | 1.77 | 15.11 | 49.32 | -19.59 | 64.73 | 0.3596 | 761.0 | 700.0 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 15.41 | 49.19 | -19.72 | 64.07 | 0.3633 | 632.0 | 486.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 14.86 | 49.15 | -19.77 | 65.55 | 0.3607 | 618.0 | 558.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 15.19 | 49.08 | -19.84 | 64.75 | 0.3636 | 561.0 | 459.3 | |
| 0.00 | 4.33 | 0.00 | 2.29 | 14.09 | 49.12 | -19.80 | 67.61 | 0.3569 | 762.0 | 623.3 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 14.39 | 49.06 | -19.86 | 66.85 | 0.3594 | 969.0 | 810.9 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 15.74 | 48.15 | -20.76 | 64.26 | 0.3804 | 707.0 | 545.0 | |
| 0.00 | 2.25 | 0.00 | 1.20 | 14.42 | 48.08 | -20.83 | 67.63 | 0.3741 | 683.0 | 454.3 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 17.40 | 46.39 | -22.53 | 62.02 | 0.4157 | 715.0 | 587.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
